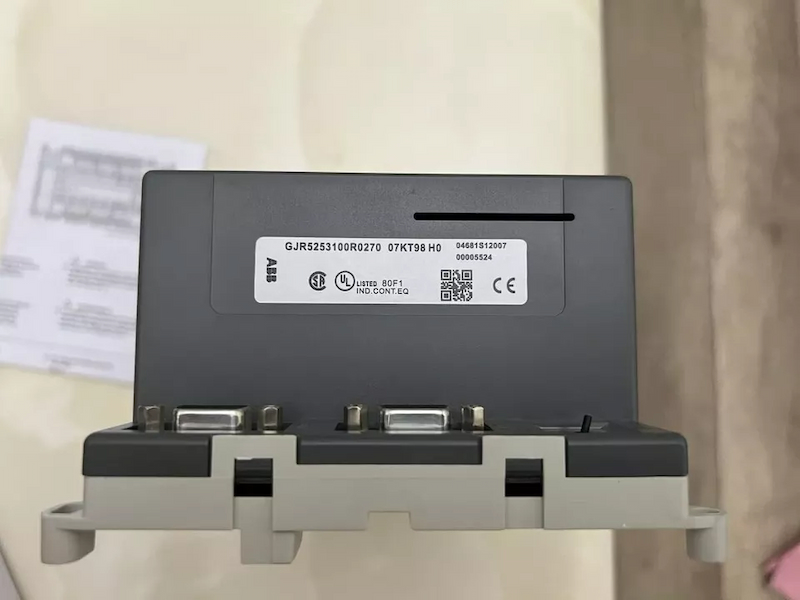

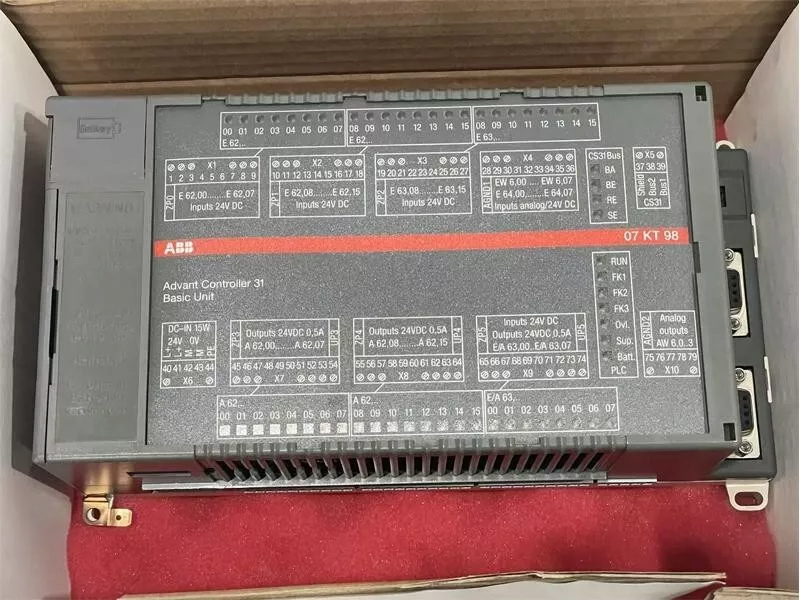

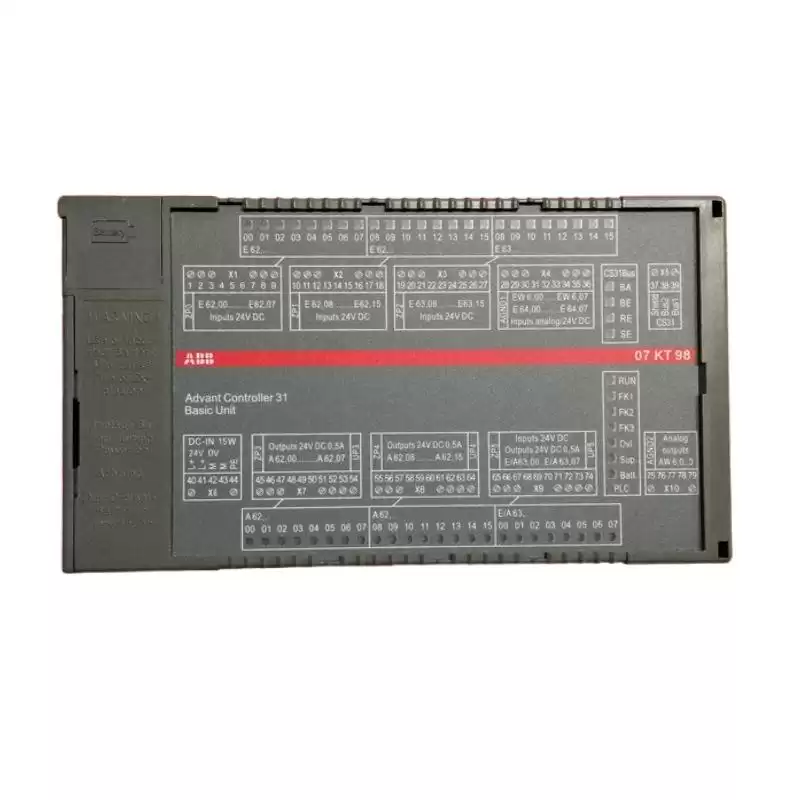

ABB 07KT98 GJR523100R0270 Base Unit

Basic Unit 07 KT 98 with max. 1 MB user program + 1 MB user data + 256 kB RETAIN, CS31 system bus





07KT98 GJR523100R0270 Base Unit



The basic unit 07 KT 98 works either as



• bus master in the decentralized automation system Advant Controller 31 or as

• slave (remote processor) in the decentralized automation system Advant Controller 31 or as

• stand-alone basic unit.



The basic unit is powered by 24 V DC.



Main Features



• 24 digital inputs with LED displays

• 16 digital transistor outputs with LED displays

• 8 digital inputs/outputs with LED displays

• 8 individually configurable analog inputs 0...10 V, 0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, differential

inputs, Pt100 (2-wire or 3-wire), the analog inputs are also individually configurable as digital inputs



• 4 individually configurable analog outputs ±10 V, 0...20 mA, 4...20 mA

• 2 counters for counting frequencies up to 50 kHz, configurable in 7 different operating modes

• 1 CS31 system bus interface for system expansion

• 1 interface for connecting communication modules (e.g. 07 KP 90)

• 2 serial interfaces COM1, COM2

– as MODBUS interfaces and

– for programming and test functions

– as freely programmable interfaces



• Real-time clock

• LEDs for displaying operating conditions and error messages

• Detachable screw-type terminal blocks

• Fastening by screws or by snapping the device onto a DIN rail

• The lithium battery 07 LE 90 can be put into the battery compartment in order to

– store and backup data which is additionally contained in the RAM, e.g. the status of flags (RETAIN)

– backup the time and date (real-time clock)



• RUN/STOP switch for starting and aborting the program execution

• Extensive diagnosis functions

– self-diagnosis of the basic unit

– diagnosis of the CS31 system bus and the connected modules



• Integrated Flash EPROM for storing program and data

• Exchangeable SmartMedia Card 07 MC 90 for user data or for updating the operating system or PLC program.



Technical Specifications

Manufacturer ABB
Part Number 07KT98
Ordering Information GJR523100R0270
Product Catalog AC31 PLC
Description Base Unit
Voltage 24 Vdc
Current 0-20 mA
Dimensions 254 mm x 102 mm x 152 mm
Weight 1 kg



07KT98



GJR523100R0270
