Manufacturer/Brand： ABB
|
Product Package：Original Package
|
|

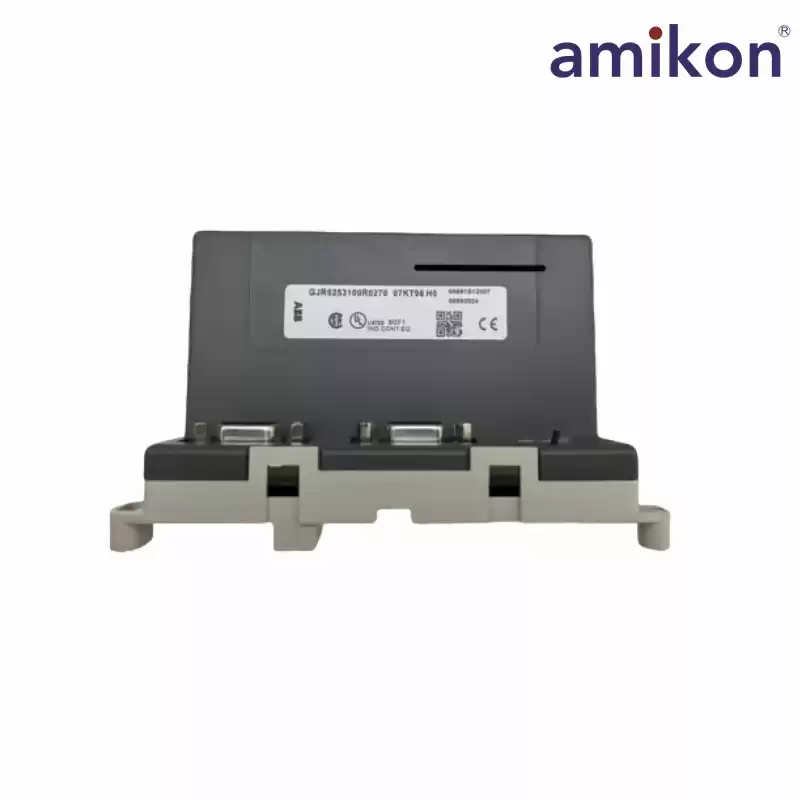

Part Number：07KT98 GJR5253100R0270
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions: 25.8cm x 8.5cm x 13.3cm
|
Weight:：0.78kg
|
Add information

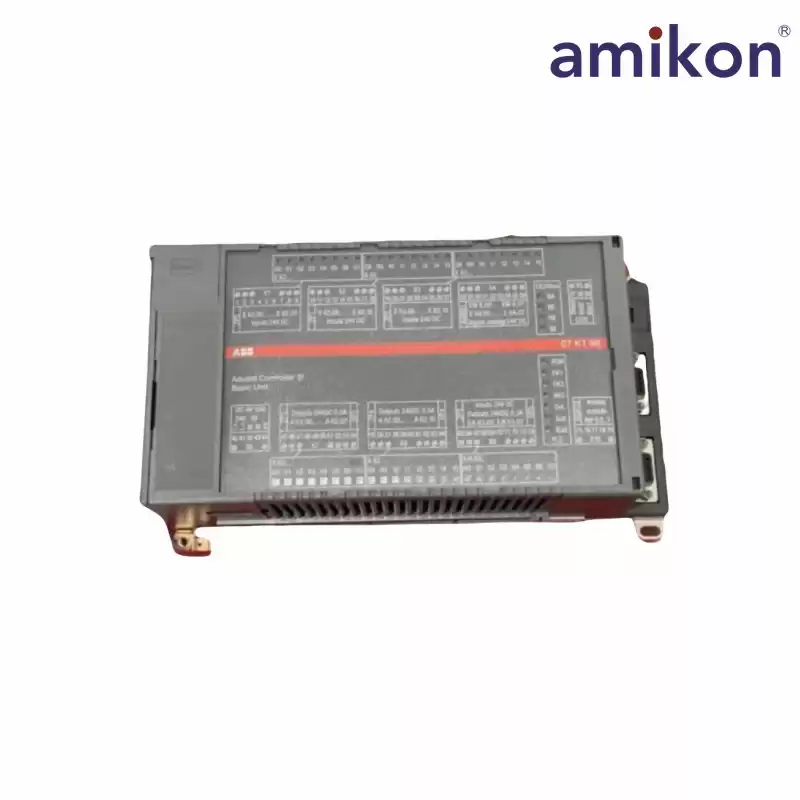

The basic unit 07 KT 98 is offered with several networking possibilities.The basic unit 07 KT 98 is powered by 24 V DC.
Functionality:
User program 1 MB
User data 1 MB + 256 kB RETAIN + 128 kB (Flash EPROM)
Digital inputs 24 in 3 groups of 8 each, electrically isolated
Digital outputs 16 transistor outputs in 2 groups of 8 each, electrically isolated
Digital inputs/outputs 8 in 1 group, electrically isolated
Analog inputs 8 in 1 group, individually configurable to 0...10 V, 0...5 V, +10 V, +5 V, 0...20 mA,
4...20 mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs
Analog outputs 4 in 1 group, individually configurable to 0...10 V, 0...20 mA, 4...20 mA
Serial interfaces COM1, COM 2 as MODBUS interfaces, for programming and test functions and
as freely programmable interfaces
Parallel interfaces for
connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable)
System bus interface CS31
Integrated couplers see next page
High-speed counter integrated, many functions configurable
Real-time clock integrated
SmartMedia Card memory medium for operating system, user program and user data
LED displays for signal conditions, operating statuses and error messages
Power supply voltage 24 V DC
Data backup with lithium battery 07 LE 90
Programming software 907 AC 1131 as of V 4.1 (07 KT 98 with ARCNET interface)
907 AC 1131 as of V 4.2.1 (07 KT 98 with PROFIBUS-DP interface)
If you have any needs, we can solve your missing parts or exchange them. Welcome to call us for inquiries!
