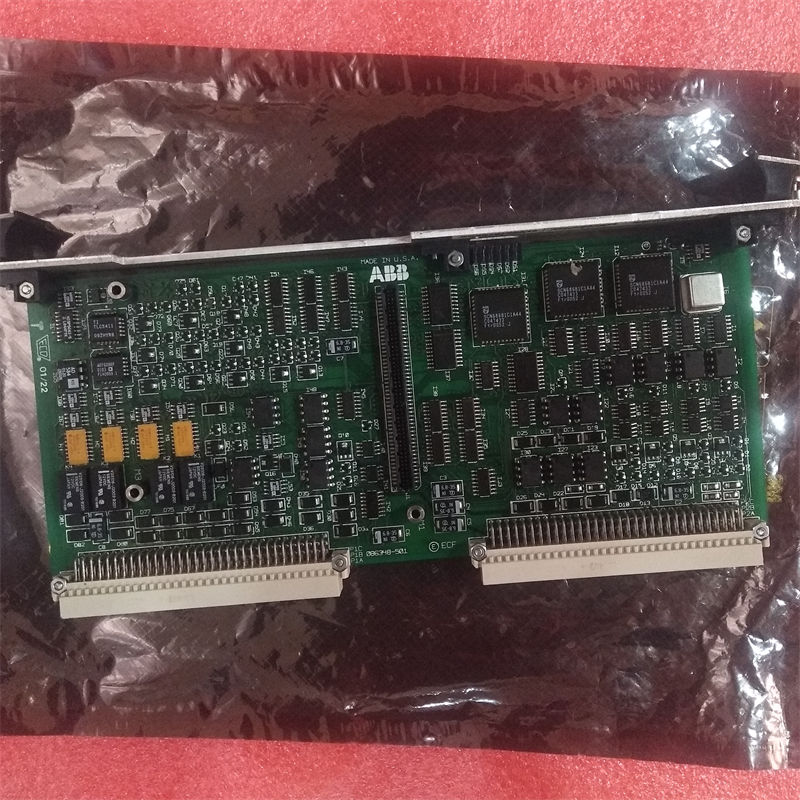

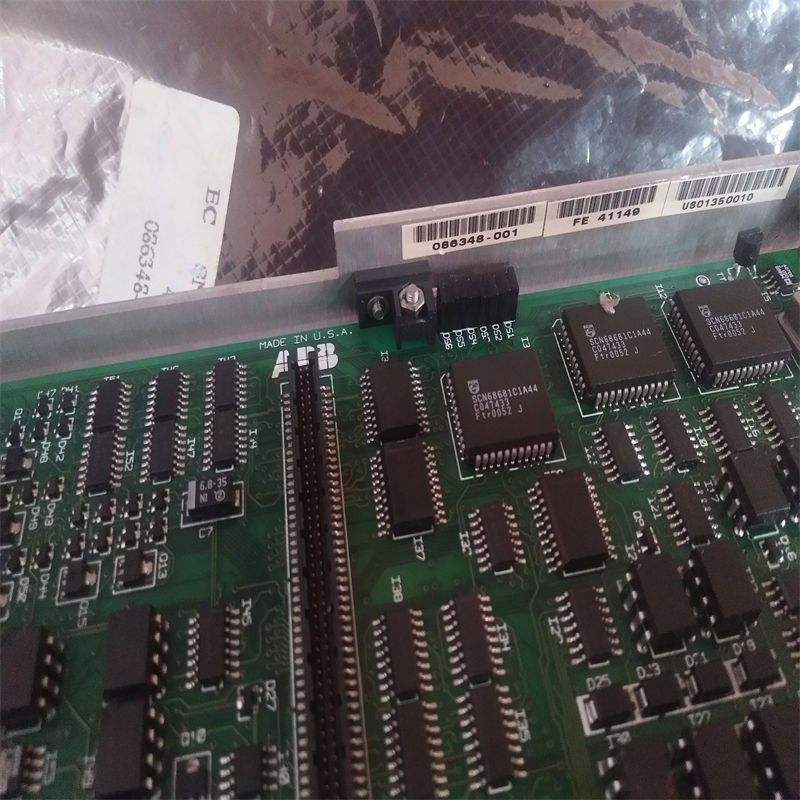

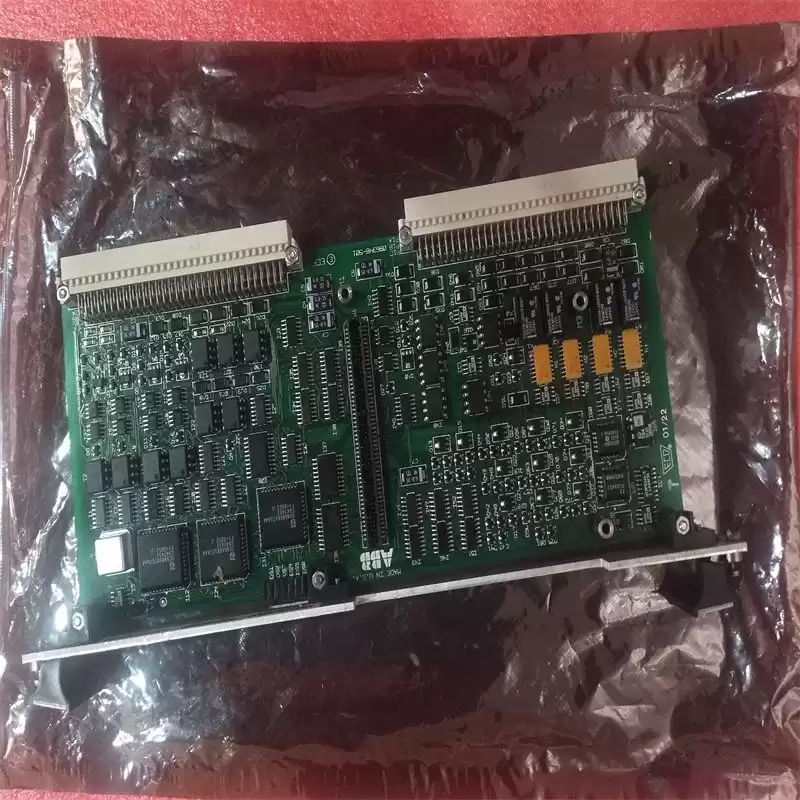

The ABB 086348-001 PWA (Printed Wiring Assembly) is an end column frame board used in ABB systems. This board plays a crucial role in providing structural support and electrical connections for various components within the system.

The 086348-001 PWA is designed to securely hold and interconnect different modules or cards in the system. It provides a stable platform for installing and organizing the electronic components, ensuring proper alignment and reliable operation.

Additionally, the 086348-001 PWA facilitates the transmission of signals and power between the different modules. It features high-quality connectors and traces that deliver reliable electrical connections, minimizing signal losses and ensuring optimal performance.

The board is built to meet demanding industrial standards, with a robust construction that can withstand harsh environmental conditions. Its durability and reliability make it suitable for use in various industrial applications

ABB 086348-001 PWA, End Col. Frame Datasheet
