Product Description:

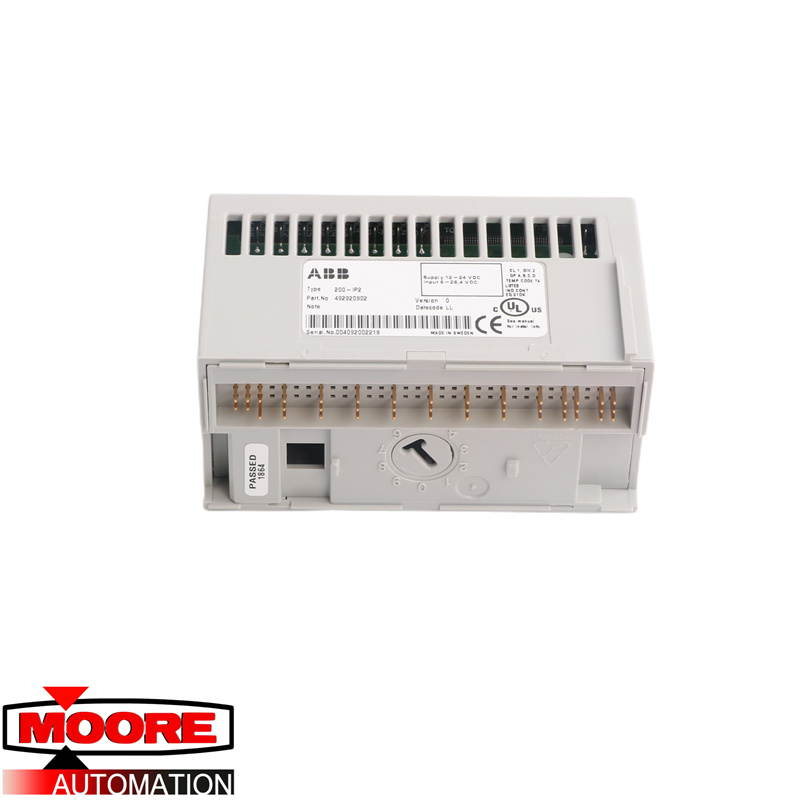

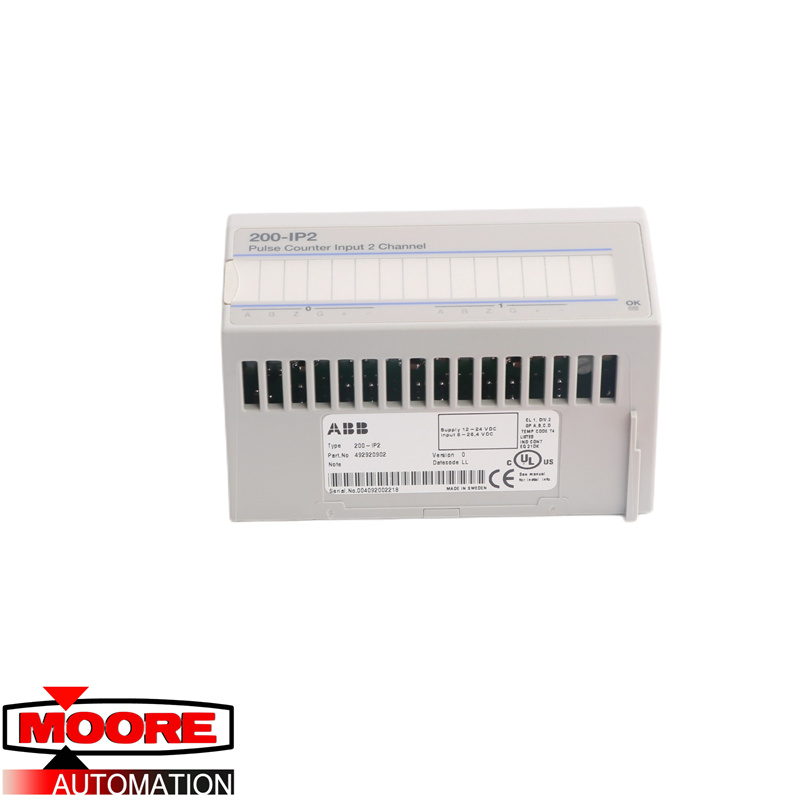

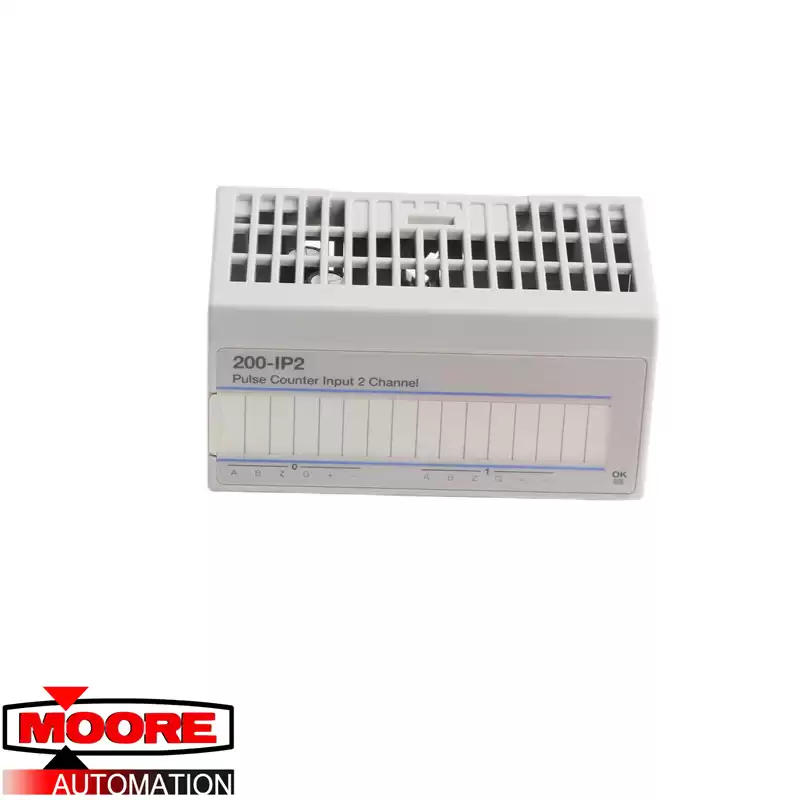

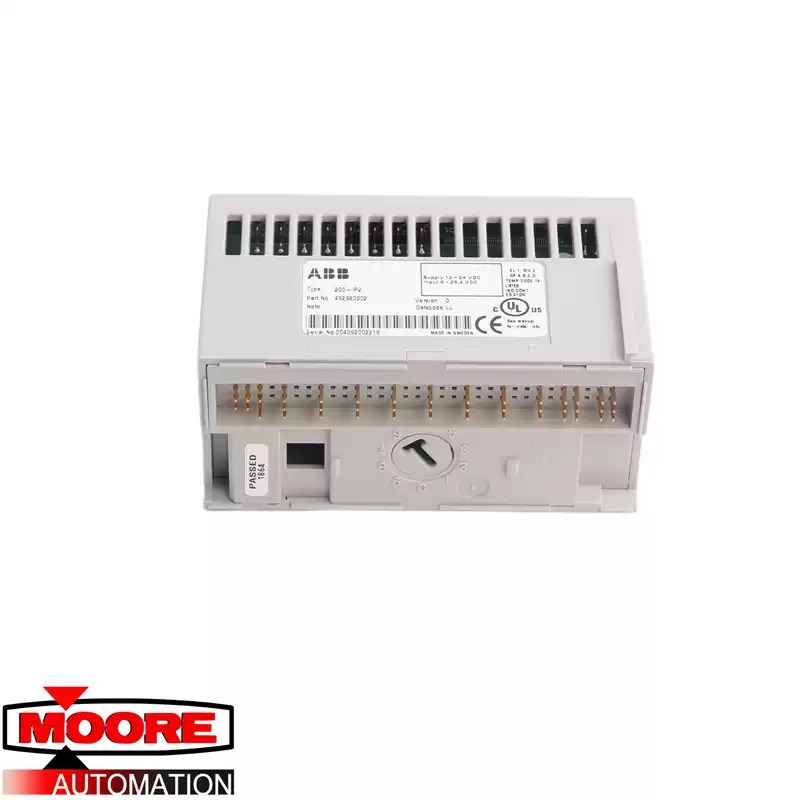

The Pulse Counter Unit, 200-IP2, is an I/O unit with 2 pulse transmitter interfaces,
each with 4 optocoupled inputs. The maximum pulse frequency is 100 kHz. The I/O
unit is configured using the control system program.
200-IP2 can be adapted for a wide range of applications, for example, for counting
pulses from pulse transmitters or incremental encoders with 1 pulse train or with 2
pulse trains. Quantity counting, positioning and speed calculation are examples of
other applications.
200-IP2 has two 16-bit up/down counters, which are individually programmable.
The number of edges to be counted in a pulse train can be specified to x1, x2 or x4.
Complementary or non-complementary pulse transmitters can be connected.
