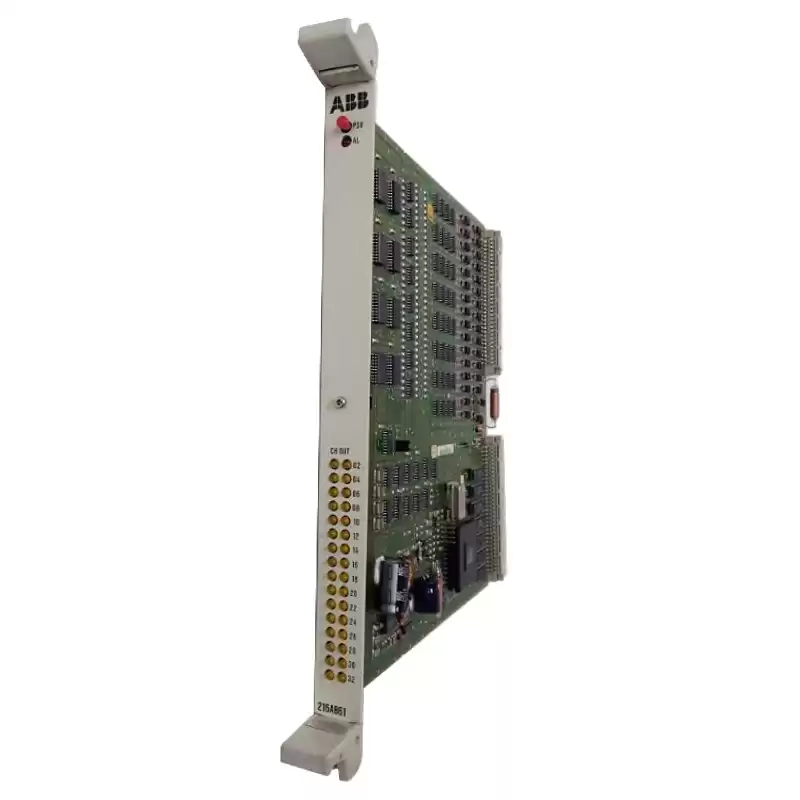

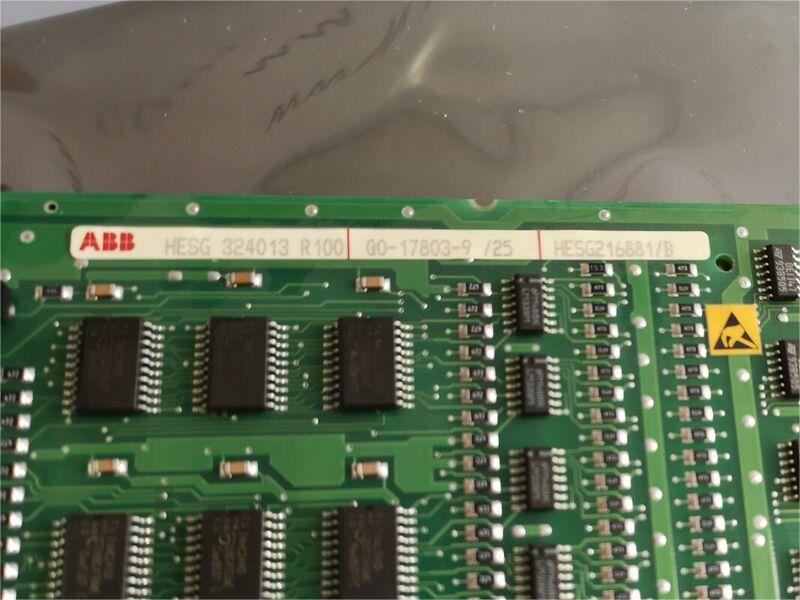

ABB 216AB61 HESG324013R100 Digital Output Unit

The 216AB61 output unit transfers signals generated by the activated protection functions to the auxiliary relays K1...K16 in the 216GA61 O/P relay unit for purposes of remote signalling.





216AB61 HESG324013R100 Digital Output Unit



The 216AB61 output unit transfers signals generated by the activated protection functions to the auxiliary relays K1...K16 in the 216GA61 O/P relay unit for purposes of remote signalling.



The unit has 32 O/P channels, i.e. a single 216AB61 unit can control two 216GA61 O/P relay units.



· connector "a" (upper) : channels CHO01...CHO16

· connector "b" (lower) : channels CHO17...CHO32

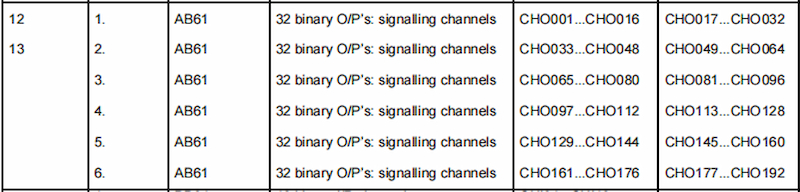

If there are several 216AB61 units in a system, the O/P channels are designated within the system according to Table 2.1.



O/P channels CHO01 and CHO02 of the first 216AB61 unit in a system are reserved for system alarm signals.



· CHO01 : Stand-by (general alarm line SML); active during normal fault-free operation.



· CHO02 : No system defect (stand-by signal line CK); active during normal operation.



Features



• 32 outputs for controlling the relays of the output auxiliary relay assembly

• Short-circuit proof

• Front plate LEDs for indication of activated relays

• Space requirement: one rack division.



ABB 216AB61



Technical Specifications

Manufacturer ABB
Part Number 216AB61
Ordering Information HESG324013R100
Product Catalog REG 216 system
Description Digital Output Unit
Voltage 24 V
Channel 32 Outputs
Dimensions 26.6 cm x 46.6 cm x 2.4 cm
Weight 0.8 kg
