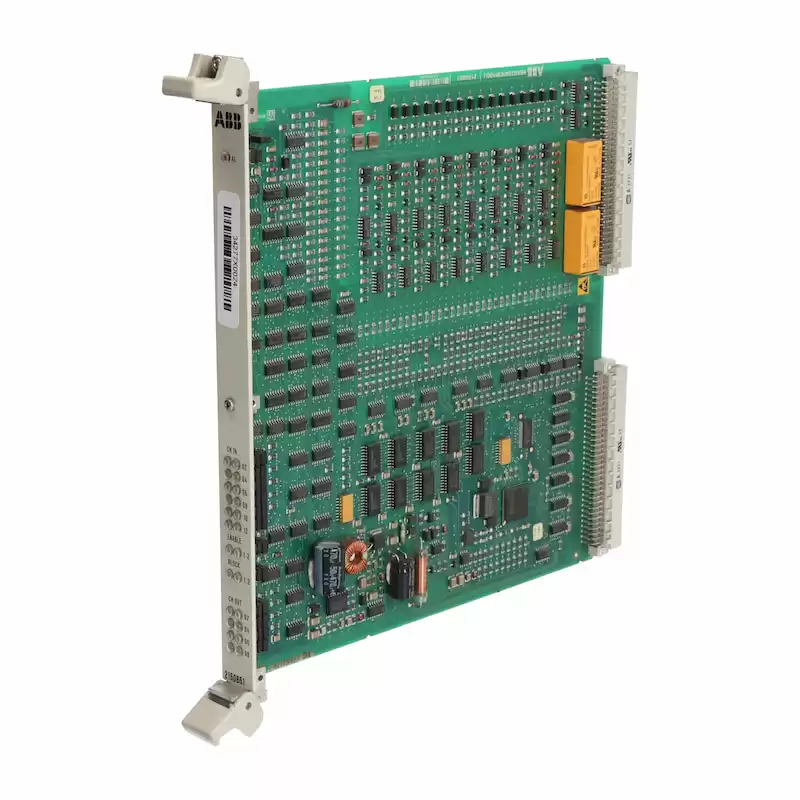

216DB61 HESG324063R100 Binary I/P And Tripping Unit
The 216DB61 binary I/P and tripping unit comprises 16 I/P and 8 O/P channels. The O/P channels are used to transfer the tripping commands of activated protection functions to the 216GA62 tripping relay module.
The I/P channels are used for external signals from the 216GE61 I/P relay module, which it transfers to the 216VC62a processing unit via the bus.

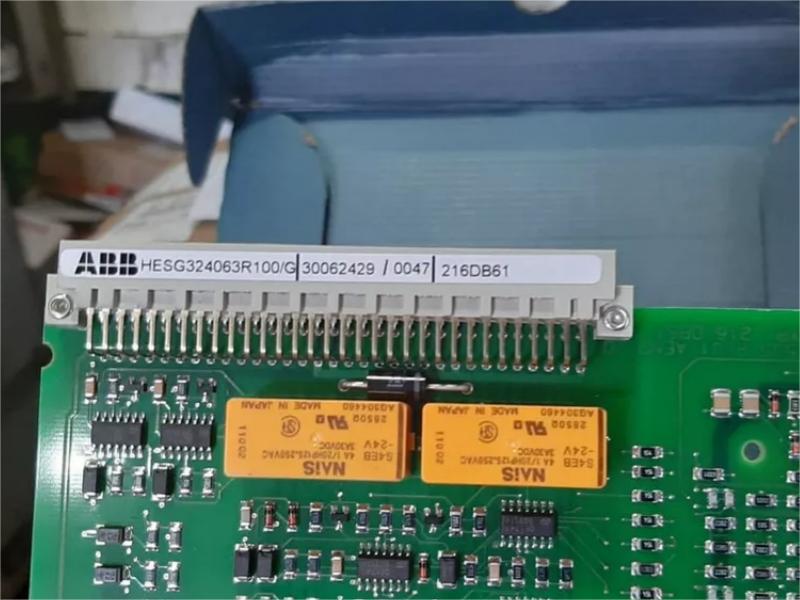

· connector "a" (upper) : I/P channels CHI01...CHI16
· connector "b" (lower) : channels CHO01...CHO08.

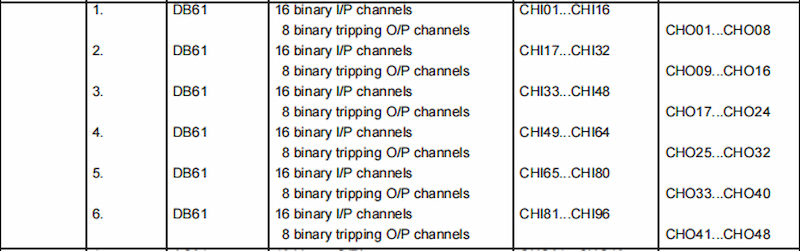

If there are several 216DB61 units in a system, the I/P and O/P channels are designated within the system according to Table 2.1.
Features
• 8 outputs for two-pole control of auxiliary tripping relays
• Monitored output amplifiers
• 16 digital inputs for the signals from the input auxiliary relay assembly (two each can be used to externally enable and block tripping respectively)
• Activated outputs and inputs indicated by LED's
• Front space requirements: one rack division
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
216DB61 |
| Ordering Information |
HESG324063R100 |
| Product Catalog |
REG 216 system |
| Description |
Binary I/P And Tripping Unit |
| Voltage |
24 Vdc |
| Channel |
16 Inputs |
| Dimensions |
26.6 cm x 46.6 cm x 2.4 cm |
| Weight |
0.8 kg |
