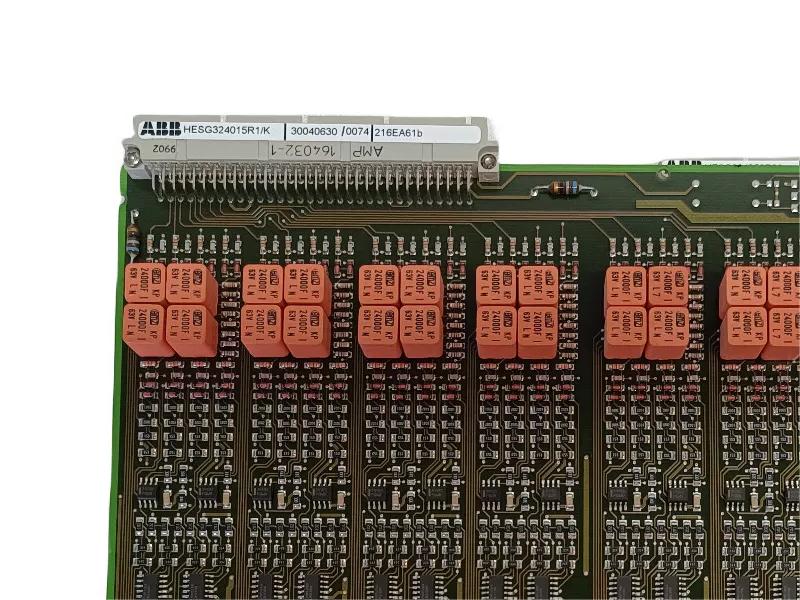

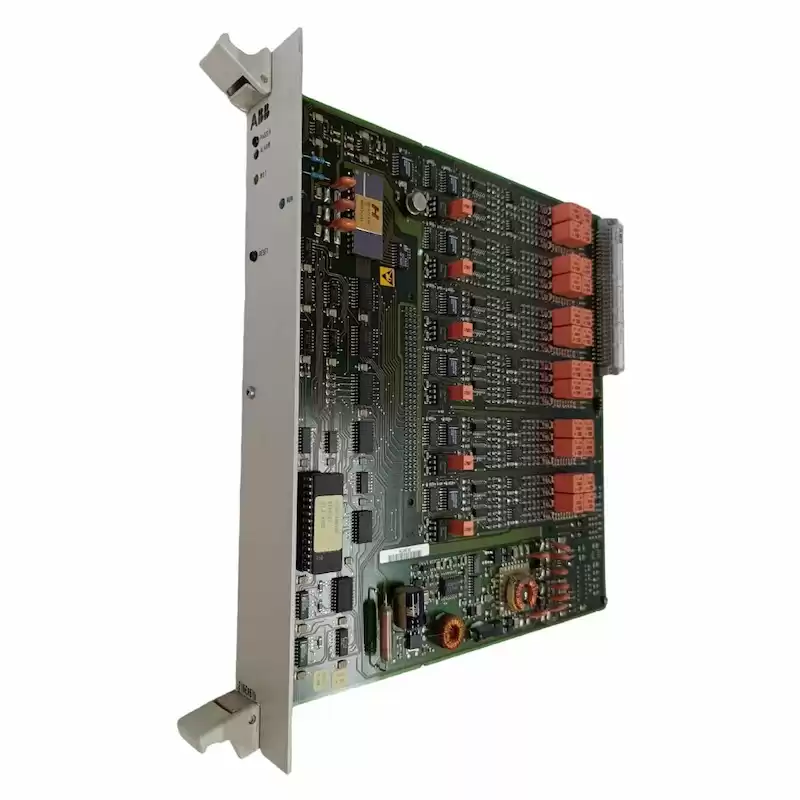

216EA61b HESG324015R1 Analogue Input Unit
The 216EA61 input unit receives the analogue measured variables from the 216GW61 input transformer module, digitises them and transfers them to the B448C bus.
The unit has 24 analogue I/P channels, i.e. a maximum of two 216GW61 input transformer modules can be connected to a 216EA61 I/P unit.
· connector "a" (upper) : channels CH01...CH12
· connector "b" (lower) : channels CH13...CH24
Within the protection system, the designations of the O/P channels correspond to those of the I/P channels. Where a system requires several 216EA61 units, the measurement channels are designated within the system according to Table 2.1.
Features
· 24 inputs sampled simultaneously in groups of six
· Sampling frequency 600 (720) Hz for a power frequency of 50 (60) Hz
· Space requirement: two rack divisions
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
216EA61b |
| Ordering Information |
HESG324015R1 |
| Product Catalog |
REG 216 system |
| Description |
Analogue Input Unit |
| Voltage |
24 V |
| Channel |
24 Inputs |
| Dimensions |
26.6 cm x 46.6 cm x 2.4 cm |
| Weight |
0.8 kg |
