216GA61 HESG112800R1 Output Relay Module
The 216GA61 is a output relay module used in REG 216 protection system, it has up to 16 auxiliary relays can be accommodated providing complete potential separation of digital output signals (two contacts per signal).

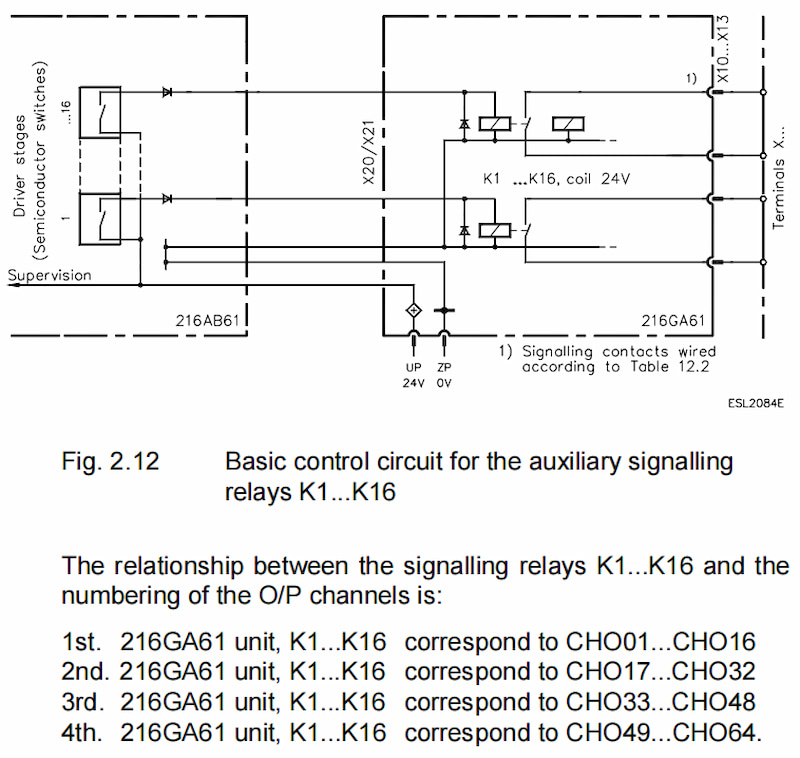

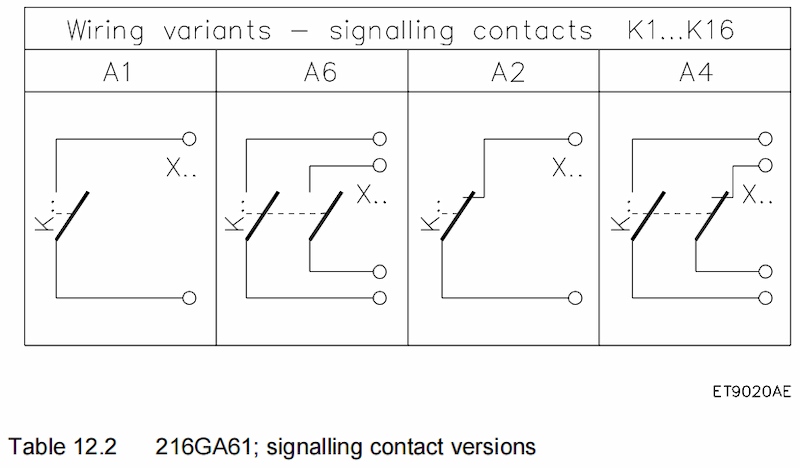

The auxiliary signal ling relays K1...K16 are controlled by the 216AB61 binary O/P unit and obtain their auxiliary supply from the auxiliary d.c. voltage UP. Fig. 2.12 shows the basic control circuit for the signal ling relays in the 216GA61 unit. How the contacts are wired varies from plant to plant.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
216GA61 |
| Ordering Information |
HESG112800R1 |
| Product Catalog |
REG 216 System |
| Description |
Output Relay Module |
| Voltage |
250 VAc or VDc |
| Current |
10 A AC Or A DC |
| Dimensions |
18 cm x 6 cm x 3 cm |
| Weight |
0.5 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
