216MB62 HESG112803R2 Equipment Rack

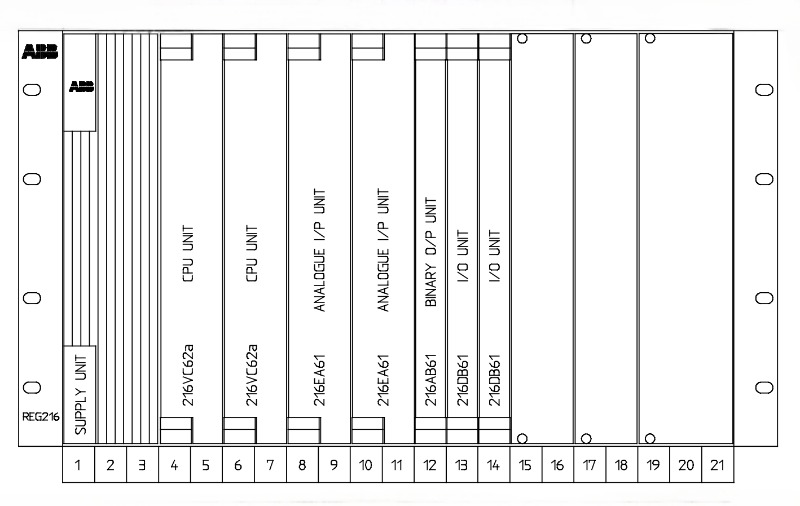

The 216MB62 is a equipment rack installed in the hinged frame of a protection cubicle. The electronic modules are designed as plug-in units, which are inserted from the front. The B448C parallel bus provides communication between the electronic units and is fitted to the rear of the rack. Also situated at the rear are the connectors for the standard cables to the I/O units and for connecting a printer.

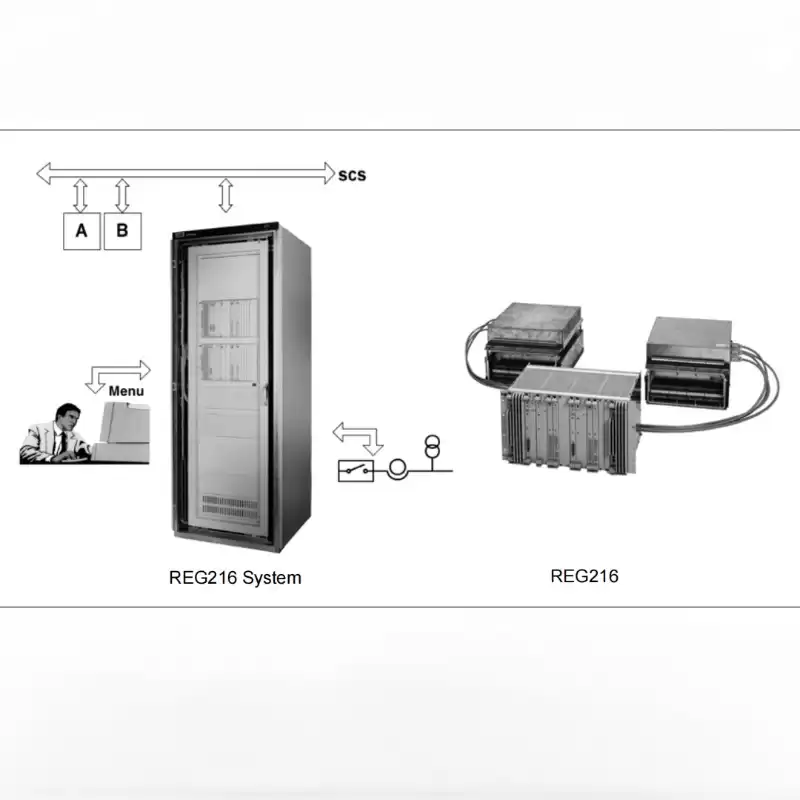

An RE. 216 protection system comprises at least an electronic equipment rack Type 216MB62 with the electronic modules inserted (plug-in units) and a number of I/O units, which are in effect the interface with the primary plant. The protection system is available as a cubicle version or as a compact version.
The input transformer, auxiliary relay I/O and tripping relay units are mounted on the inside of the rear panel of the protection cubicle.
The number and type of electronic units installed, their locations in a rack, the number of racks and the number and arrangement of I/O units varies from plant to plant.
Refer to the corresponding set of diagrams for the execution of an RE. 216 system for a particular plant.
Features
• Specification based on IEEE P 896 (future bus)
• Time multiplexing of addresses and data (16 bit)
• Asynchronous data transmission with handshake
• Integrity checking of each data exchange.
• Up to 32 master units having equal status, actively accessing the bus
• Common internal 24 V auxiliary supply for all electronic units; redundant 24 V are possible.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
216MB62 |
| Ordering Information |
HESG112803R2 |
| Product Catalog |
REG216 System |
| Description |
Equipment Rack |
| Voltage |
24 V |
| Cable Connector |
50 pin |
| Dimensions |
48.3 cm x 26.6 cm x 27 cm |
| Weight |
5 kg |
