The Analogue Input signal selection is done with jumpers S1 (AI1) and S2 (AI2): I = 0(4) - 20 mA, V = 0(2) - 10 V.The X50 screw terminal on the Control Interface Card SNAT 7600/7640 in the Control Unit.
|
|

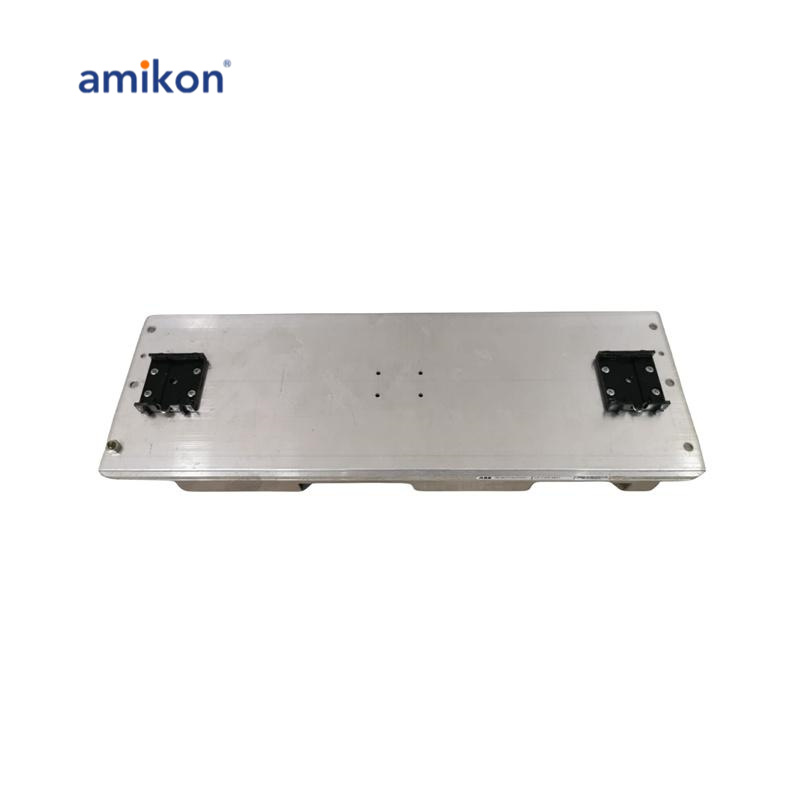

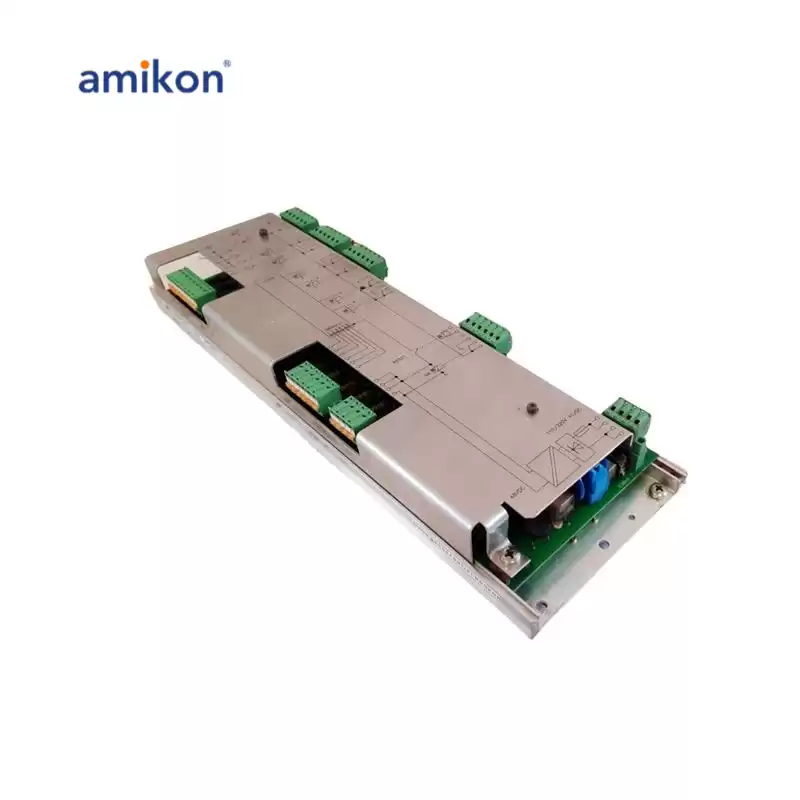

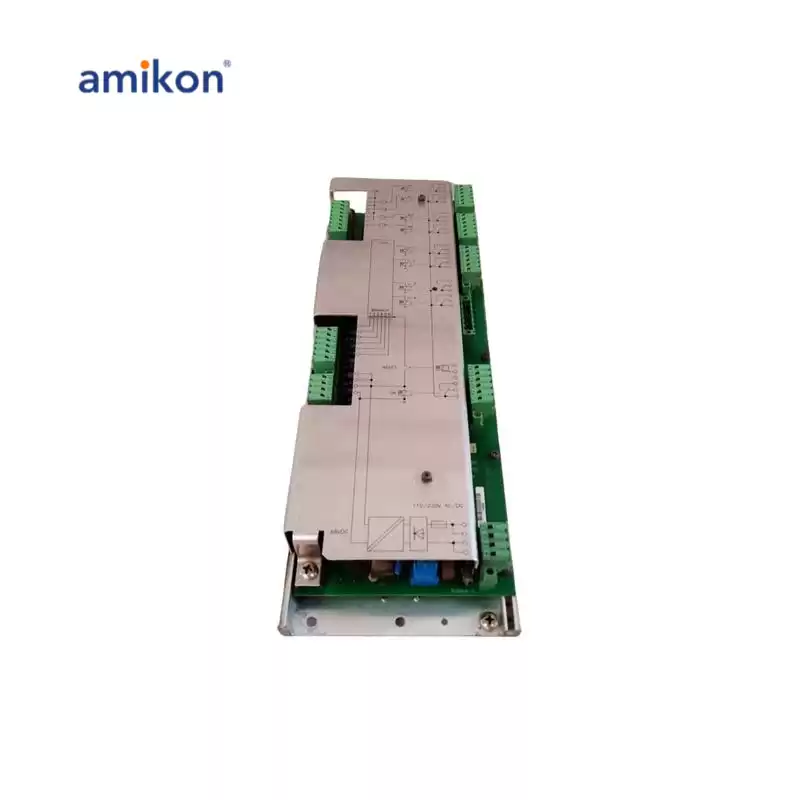

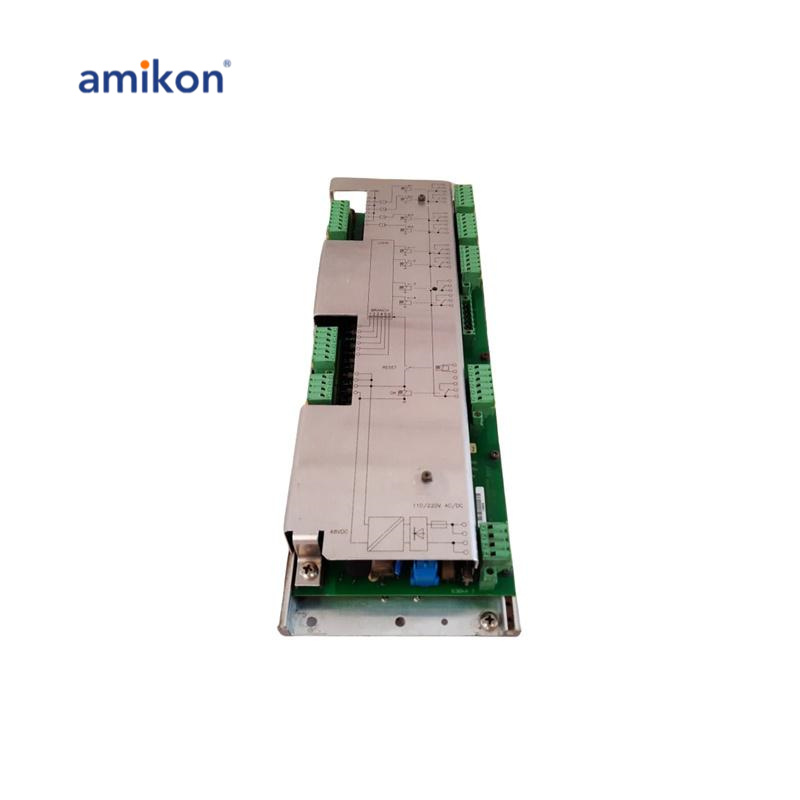

3BHB002483R0001 USC329AE01 Description:
|
This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit.
|
|
The RS 485 serial communication bus; terminal X51 on Control Interface Card.
|
|
max. switching current:80 A/120 V DC Auxiliary voltage:+48 V DC
|
|
