Manufacturer/Brand： ABB
|
Product Package：Original Package
|
|
Part Number： 3EHE300692R0001 LAA424 C01
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions: 28mx25cmx4cm
|
Weight:：0.64kg
|

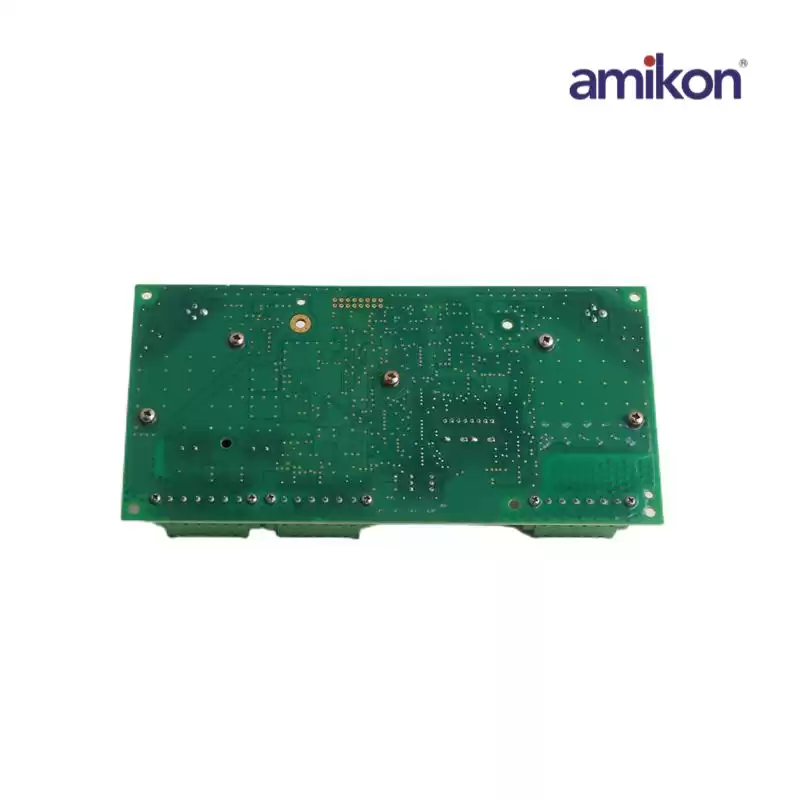

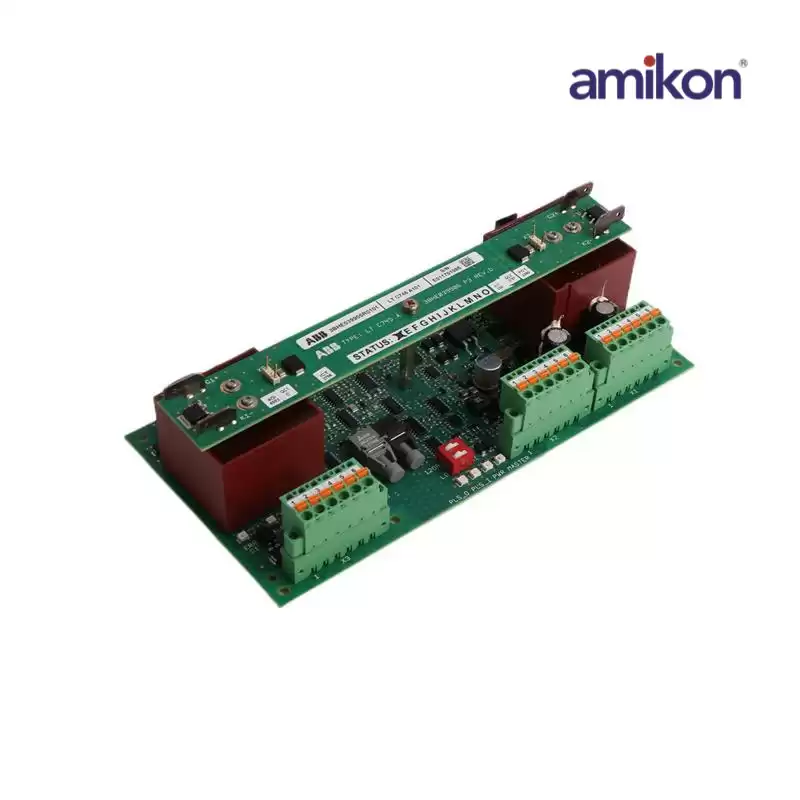

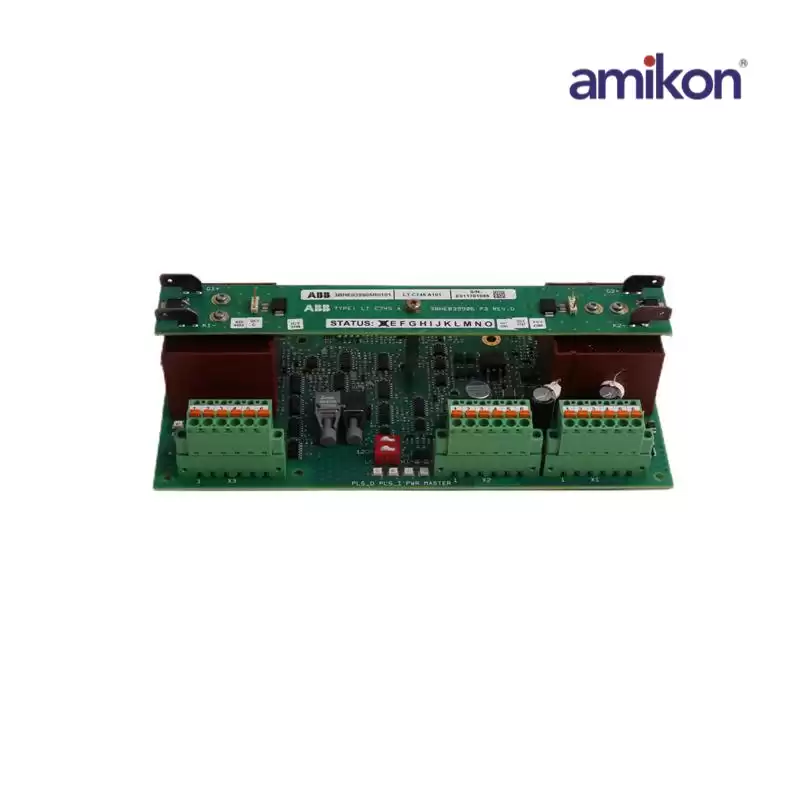

The 3EHE300692R0001 LAA424 C01 is a Control Circuit Board.The Analogue Input signal selection is done with jumpers S1 (AI1) and S2 (AI2): I = 0(4) - 20 mA, V = 0(2) - 10 V.The X50 screw terminal on the Control Interface Card SNAT 7600/7640 in the Control Unit.
(This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit).The RS 485 serial communication bus; terminal X51 on Control Interface Card (This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit).
