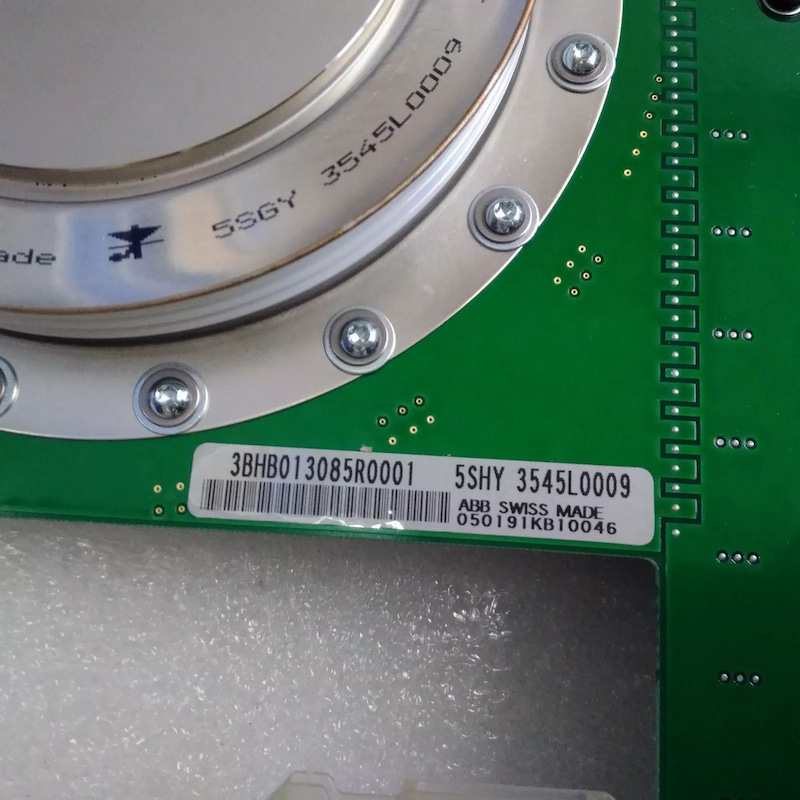

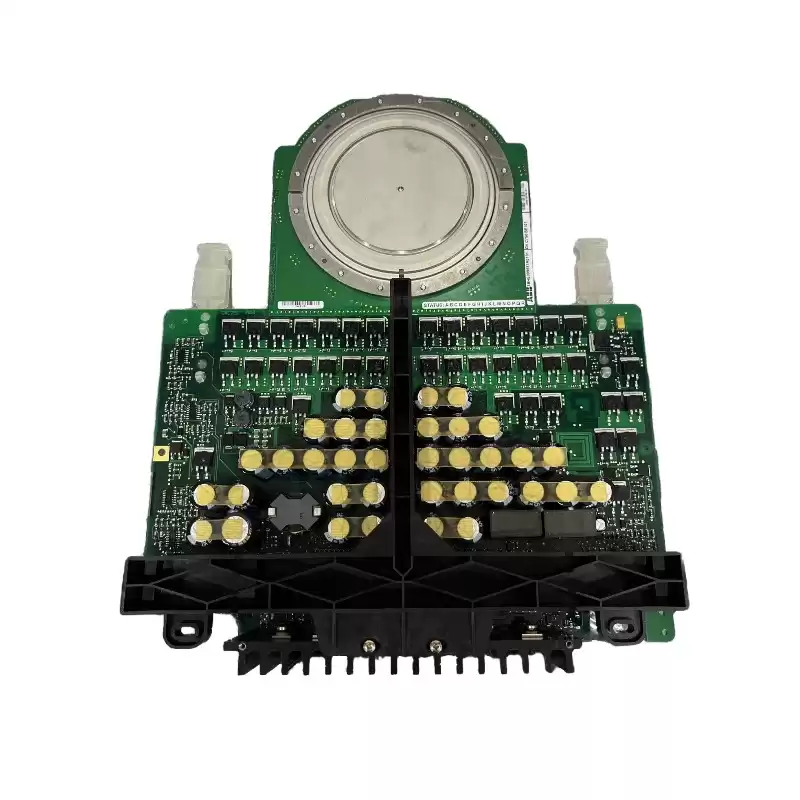

5SHY 3545L0009 3BHB013085R0001 IGCT Module
Functional Description:
5SHY 3545L0009 is a IGCT Module manufactured and designed by ABB as part of the spares used in the drive system.
The Integrated Gate-Commutated Thyristor (IGCT) was introduced about 15 years ago and has established itself as a preferred solution for a number of high power electronics applications. These applications have in common that the rated power level is in the megawatts (MW) and they range from industrial drives and track-side supplies to power quality and high-current breakers.
Features:
· Available as asymmetric and reverse conducting (with integrated diode)
· Voltage ratings 4,500 up to 6,500 V with current ratings of 520 up to 5,000 A of peak turn-off current
· Integrated gate unit - critical to device performance
· Low on-state losses
· Press-pack design for efficient double sided cooling
· Press-pack design for high load cycling capability
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
5SHY 3545L0009 |
| Ordering Information |
3BHB013085R0001 |
| Product Catalog |
3BHB013085R0001 |
| Description |
IGCT Module |
| HS code |
85413000 |
| Origin |
Switzerland |
| Dimensions |
40 cm x 32 cm x 8 cm |
| Weight |
3.4 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
