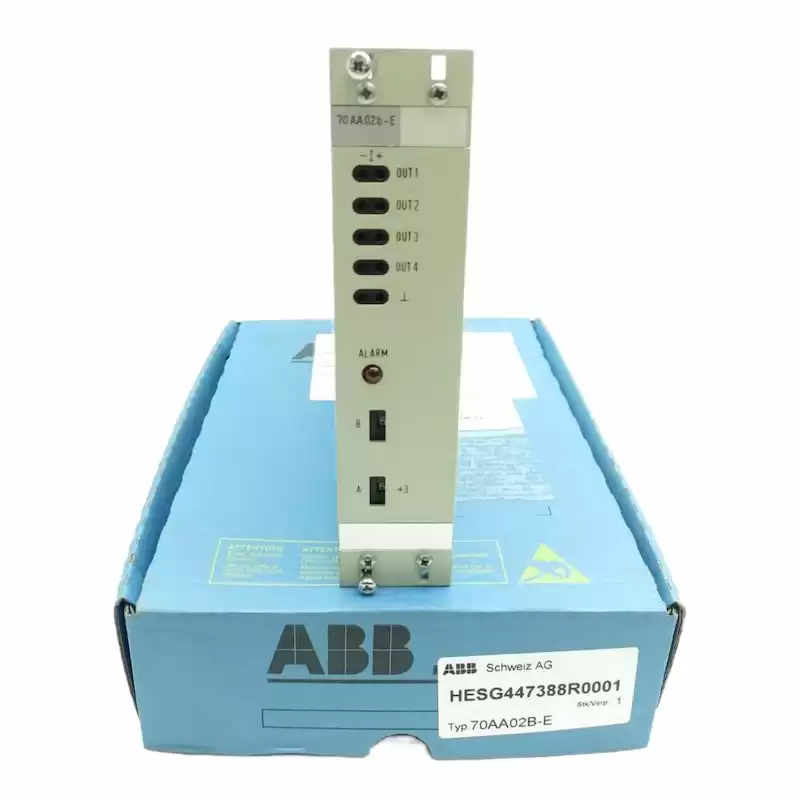

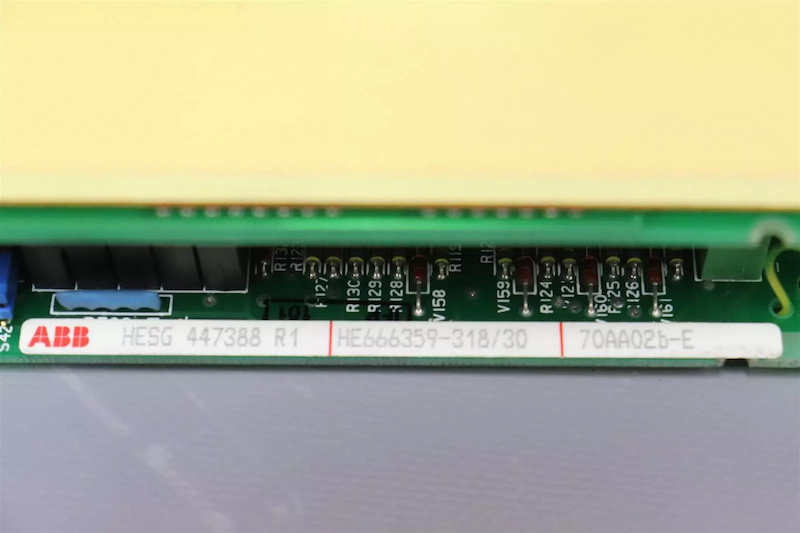

70AA02b-E HESG447388R0001 Analog Output Module
The 70AA02b-E is a Analog Output Module, manufactured and designed by ABB as part of the P13 Series used in the ABB PROCONTROL P system.
The core of the P13 analog output modules is the custom local bus UART and digital signal processing engine. The core interfaces four independent digital to analog front end circuits. Each of these analog outputs utilizes precision signal conditioning and advanced sigma delta based technology or DAC sections with a ladder network to produce current or voltage loop outputs with 16 bit resolution and monotonicity.
Using the front panel configuration port and the P13 Configurator software, the modules can be monitored and configured for different applications.
The 70AA02 Output Module for Currents, it serves for the output of analog signals from the PROCONTROL P13 local bus. The 4 output channels may be configured to supply the following current signals:
> 0 mA to +20 mA (corresponding to 0 % to +100 %)
>+4 mA to +20 mA (corresponding to 0 % to +100 %)
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
70AA02b-E |
| Ordering Information |
HESG447388R0001 |
| Product Catalog |
PROCONTROL P13 |
| Description |
Output Module for Currents |
| Voltage |
24 V |
| Current |
20 mA |
| Dimensions |
20.3 cm x 17.8 cm x 5.1 cm |
| Weight |
0.4 kg |
