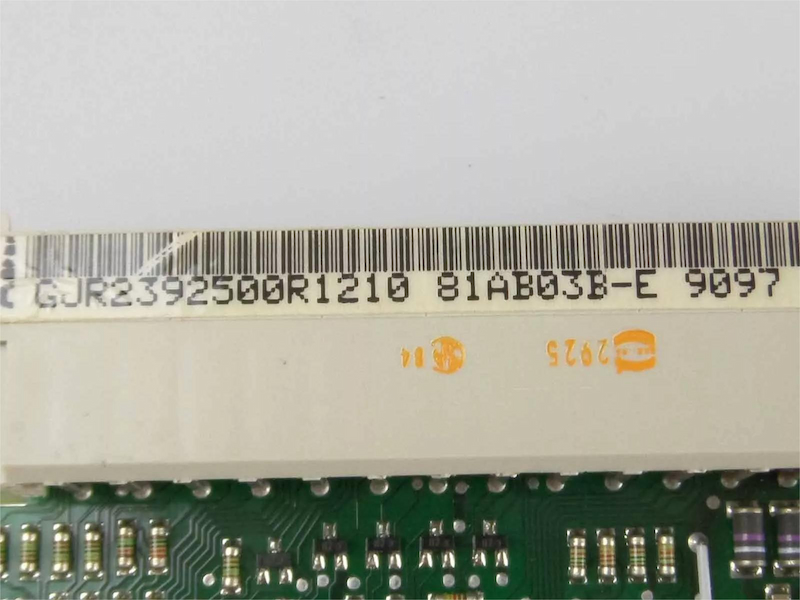

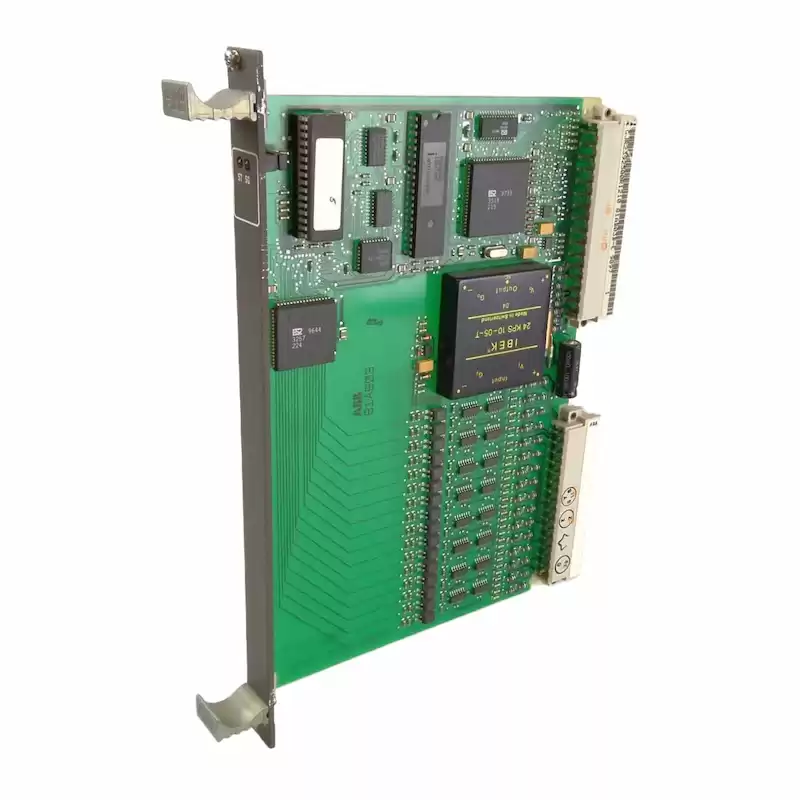

81AB03B-E GJR2392500R1210 Output Module
The 81AB03B-E output module is used to activate electronic inputs, relays and lamps.
The module contains 16 function units. It is thus possible to output 16 different binary signals simultaneously.
The outputs of the module can activate the following loads:
- up to 50 standard loads PROCONTROL electronic inputs or
- one lamp with a rated current of 100 mA at a rated voltage of 24 V or
- one relay with 100 mA current consumption. The quenching diode is already incorporated in the module for this; or
- other loads of up to max. 100 mA current consumption
The module incorporates an input (TL) with which all outputs can be activated simultaneously (e.g. for lamp testing).
Features
The module can be plugged into any multi ---purpose processing station of the PROCONTROL bus system. It incorporates a standard interface to the PROCONTROL station-bus.
The module receives the signals to be output from the PROCONTROL bus system via the station-bus in the form of telegrams. The telegrams are checked for faultless transfer by means of the parity bits before being output.
The binary signal outputs are short-circuit-proof. They have a common reference conductor.
The output signals are supplied potential-isolated to the output section. The output circuits are supplied with their own operating voltage to eliminate any interaction between the bus side and the process side.
The output signals can be simulated individually via the control system operator station. A simulated output is indicated by a light-emitting diode (SIM) at the front of the module and is recorded by the control system operator station on a logger and displayed on a screen.
Any disturbance in the processing section is indicated by a disturbance annunciation (ST) at the front of the module.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
81AB03B-E |
| Ordering Information |
GJR2392500R1210 |
| Product Catalog |
PROCONTROL |
| Description |
Output Module |
| Voltage |
24 V |
| Current |
100 mA |
| Dimensions |
19.8 cm x 26.1 cm x 2 cm |
| Weight |
0.55 kg |
