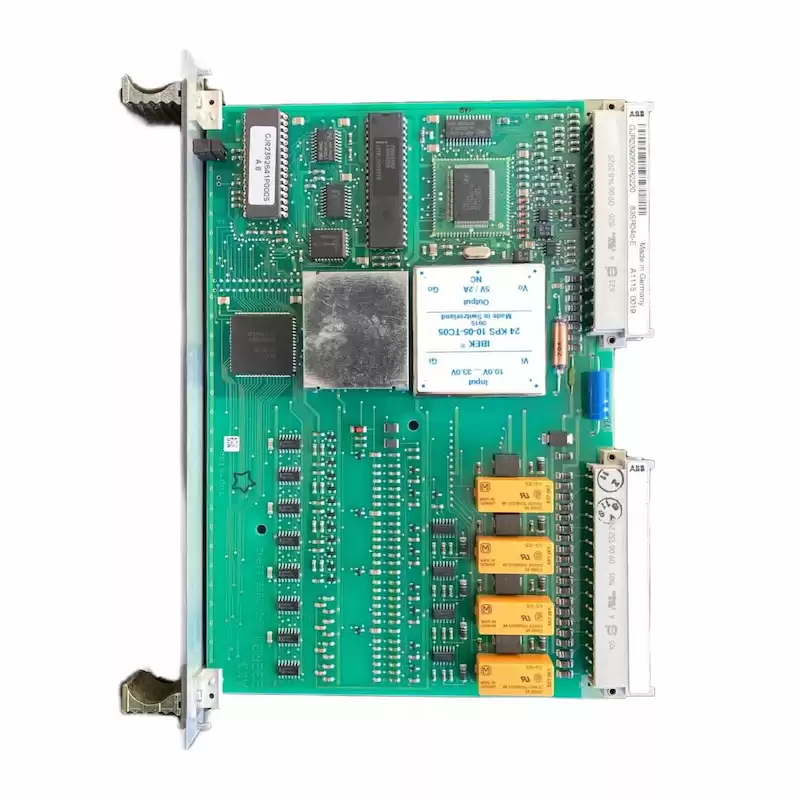

83SR04A-E GJR2390200R1411 Control Module
Diagnosis and annunciation functions
Disturbance annunciations on the module
The following annunciations are signal led on the front of the module by light-emitting diodes (LED):
Designation of LED
- Disturbance ST
- Module disturbance SG
Light-emitting diode ST signals all disturbances in the module and disturbances in data communication with the module.
Light-emitting diode SG signals module disturbances.
Disturbance annunciations to the alarm annunciation system
The alarm annunciation system and the control diagnosis system CDS receive disturbance annunciations from the control module via the bus.
Diagnosis
The incoming telegrams, the generation of the telegrams to be transmitted, and internal signal processing are monitored for errors in the processing section of the module (self-diagnosis).
In the event of a disturbance, the type of disturbance is filed in the diagnosis register and, at the same time, a general disturbance annunciation is sent to the PROCONTROL system. When requested, the module transfers a telegram with the data stored in the diagnosis register (register 246).

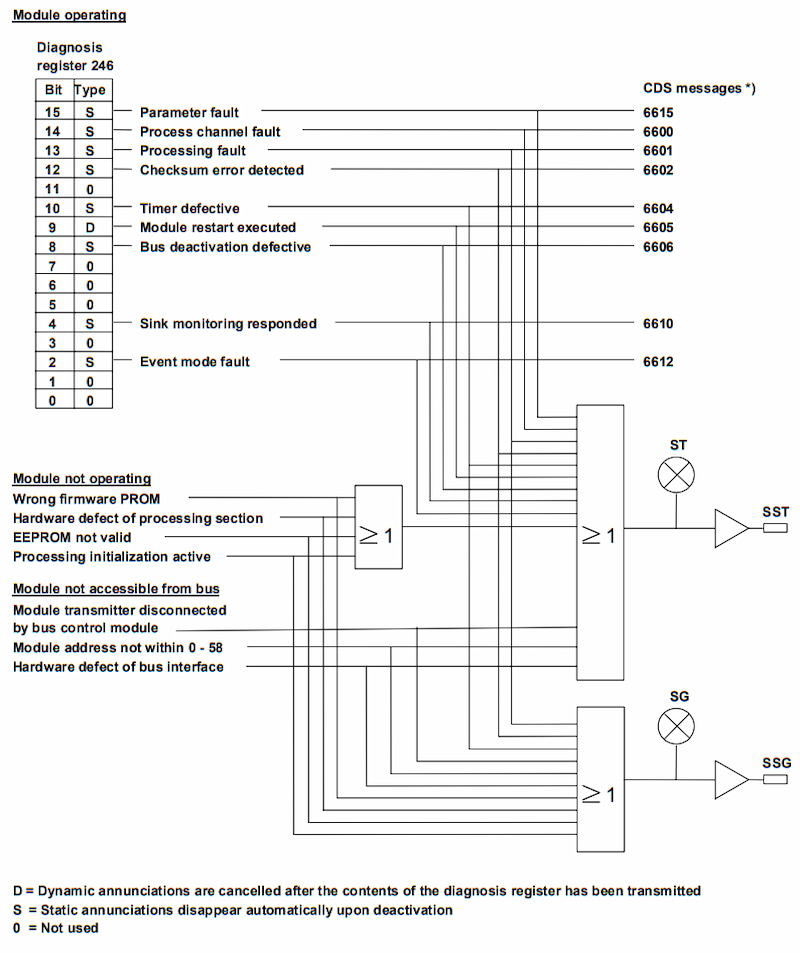

The contents of the diagnosis register, the annunciations sent over the general disturbance line, the annunciations on the CDS and the annunciation disturbance ST are shown in Fig.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
83SR04A-E |
| Ordering Information |

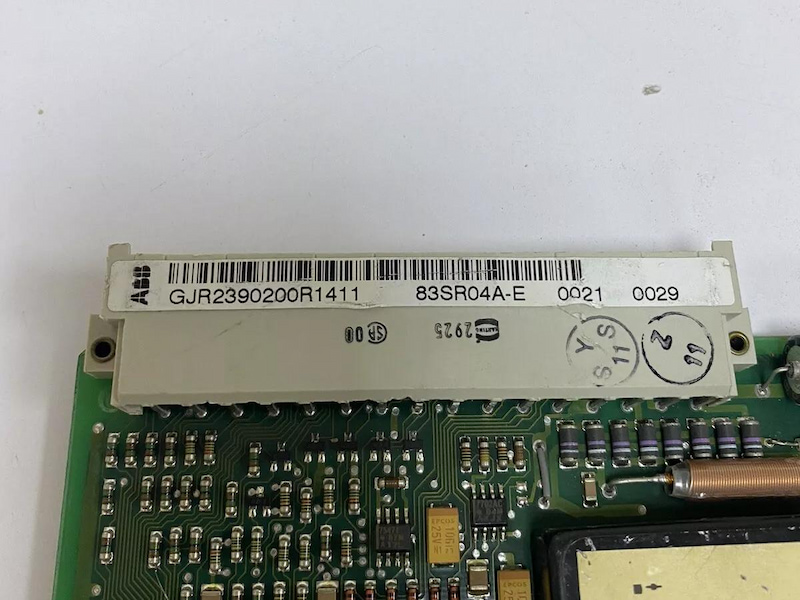

GJR2390200R1411 |
| Product Catalog |
Procontrol P14 |
| Description |
Control Module |
| Voltage |
24 V |
| Current |
145 mA |
| Dimensions |
26.1 cm x 19.8 cm x 2 cm |
| Weight |
0.55 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
