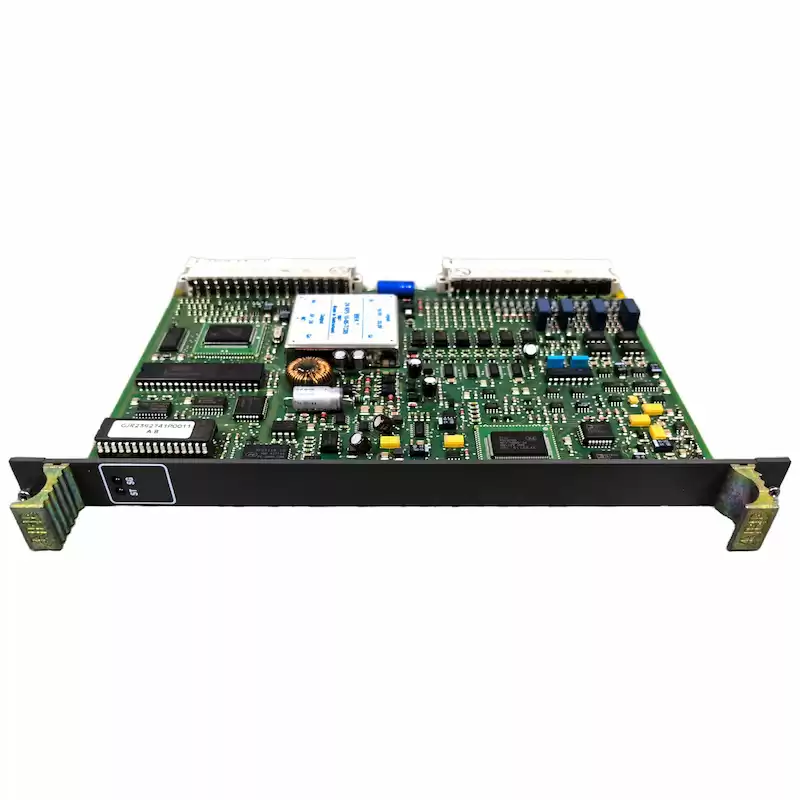

83SR07F-E GJR2392700R1210 Control Module
The module is used for stored-program analog control of one or two process variables.
The module is provided with two continuous outputs for output of the correcting variables. The following types of actuators can be controlled:
- electro hydraulic actuators
- electro pneumatic actuators
- electric-motor-powered drives
The drives are positioned either locally at the transducer or in case of electric-motor-powered actuators, in a continuously operating power electronics system. It is also possible to supplement the single variable analog controls by a higher level master control system.
The module is intended for use in connection with the process operator station.
The module incorporates the function blocks for implementing continuous single variable controllers. Additional function blocks are available for signal conditioning.
In the analog control mode, the module is used with fixed cycle times. This is 100 ms for one actuator and 200 ms for two actuators.
The cycle time is specified by means of function block KON, which is the first block to appear in the structure.The module incorporates two hardware process interfaces for the power controller units and the process.
Features
· The module address is set automatically by plugging the module into the PROCONTROL station.
· The telegrams received via the bus are checked by the module for error-free transfer by means of their parity bits.
· The telegrams sent by the module to the bus are provided with parity bits to ensure error-free transfer.
· The user program is stored in a non-volatile memory (EEPROM). It can be loaded and changed from the PDDS via the bus.
· The module is ready for operation as soon as a valid user list is loaded.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
83SR07F-E |
| Ordering Information |
GJR2392700R1210 |
| Product Catalog |
Procontrol P14 |
| Description |
Control Module |
| Voltage |
24 V |
| HS Code |
85423190 |
| Dimensions |
26.1 cm x 19.8 cm x 2 cm |
| Weight |
0.55 kg |
