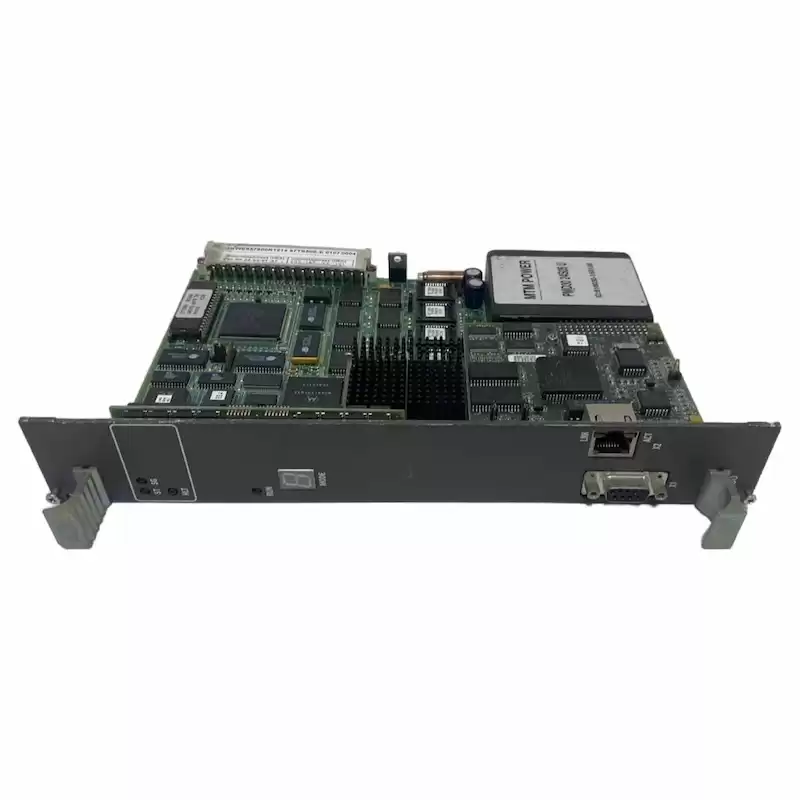

87TS50E-E GKWE857800R1214 Coupling Module
The 87TS50 module is a coupling module for connecting MMI systems, such as the Plant Management System 'PMS’, to a PROCONTROL system.
Communication between the MMI system and the PROCONTROL system takes place, on the computer side, with the help of the CPS software package (Common PROCONTROL Data Server), and on the PROCONTROL side, through the 87TS50 module.
The CPS controls the 87TS50 and conditions the signals for the MMI system.
The 87TS50 is connected via a thin-wire Ethernet interface acc. to IEEE 802.3.
A total of four 87TS50 modules can be connected to one CPS interface. The module’s scope of action extends over the entire PROCONTROL system where it is being used.
It is possible to plug a maximum of four 87TS50 modules linked to one and the same CPS interface into different PROCONTROL systems, i.e. into systems using different system addresses (cf. 'Connection diagram').
The module is also suitable for redundant-station arrangements. It may be operated in two modes:
- Redundant mode
- Partial-redundant mode
Features
This module can be plugged into any station of the PROCONTROL bus system. It uses a standard interface with the PROCONTROL station bus.
The telegrams received over the bus are checked by the module for error-free transmission based on their parity bits. Through its Ethernet interface, the module can receive or put out instructions and data, according to the TCP/IP protocol, to or from the CPS.
From the CPS, the 87TS50 module can exchange the following data with the entire PROCONTROL system:
- Listening-in on up to 16383 telegrams.
The listen-in address list is generated independently by the coupling module after having received a connect instruction from the CPS.
The coupling module is able to independently learn listenin addresses (e.g. of new modules plugged in).
As soon as they have been received from the PROCONTROL bus, the data telegrams are provided with the time stamp used on the module. The resolution valid for the time stamp is one millisecond.
All listened-in telegrams are subjected to receive monitoring. The quantity of messages of the listen-in telegrams can be adjusted by setting global thresholds and time-outs.
- Sending up to 800 send-location telegrams.
The address for sending is determined by the slot used for the module and by the specifications made by the CPS.
- Sending destination telegrams for writing into PROCONTROL module registers, for instance for command output.
The module requires redundant +24 V operating voltages USA and USB.
The operating voltages refer to reference conductor_Z.
On the module front, indicators signal the following conditions:
- ST Disturbance
- SG Module disturbance
- HLT Processor halt
- RUN Active
- MODE Operating status
For commissioning and service purposes, the module is equipped with a user interface (monitor) which can be used to call up all important information regarding telegram data and module-specific configurations.
The ambient temperature of the module can be read from register 202.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
87TS50E-E |
| Ordering Information |
GKWE857800R1214 |
| Product Catalog |
PROCONTROL system |
| Description |
Coupling Module |
| Voltage |
24 V |
| Current |
700 mA |
| Dimensions |
25.4 cm x 20.3 cm x 2 cm |
| Weight |
0.78 kg |
