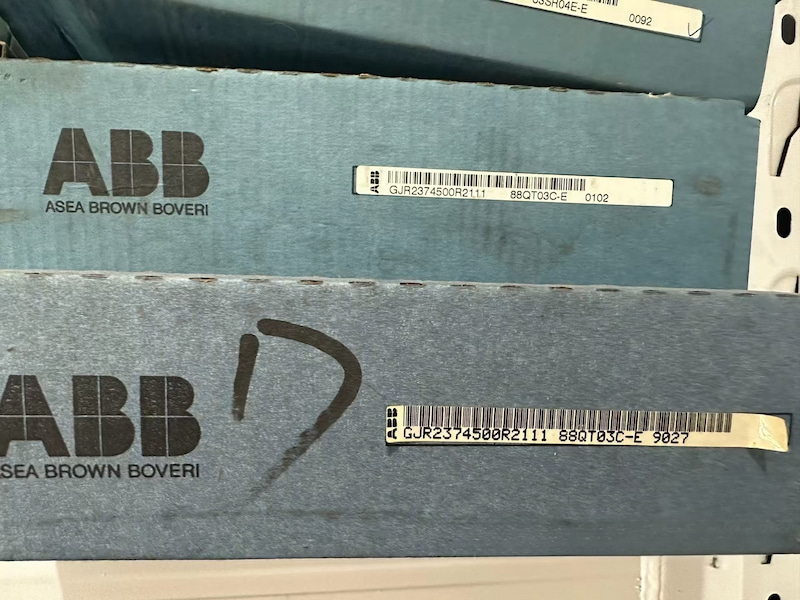

88QT03C-E GJR2374500R2111 Bus Coupling Module
The bus coupling module 88QT03 connects the station bus and the input/output station.
Connected to the station bus, the module behaves like a combined input/output module which is able to receive max. 255 telegrams from the station bus and transmit max. 200 telegrams to the station bus.
In relation to the input/output station the module acts as a processing module. lt receives and transmits a total of up to 256 telegrams.
In conjunction with the module 88QB03-E/R0100 the bus coupling module can be installed in the PROCONTROL cabinets 89MS01 and 89MS02, too.
Features
The module can be plugged into any station of the PROCONTROL bus system. lt requires two divisions.
It uses:
- One SS standard interface to the station bus
- One SEA standard interface to the input/output station
- Connections provided for hardware inputs
As with all other station bus modules, the station bus address of this module is related to the place of installation.
However, the module may only be plugged onto even module addresses. The next higher (uneven) module address will be used automatically by the module and needs not be wired. However, it must not be assigned to another station bus module.
It transmits data from the input/output modules to the station bus.
It transmits the data received from the station bus to modules connected to the input/output station.
The connected input/output station modules are monitored for proper function.

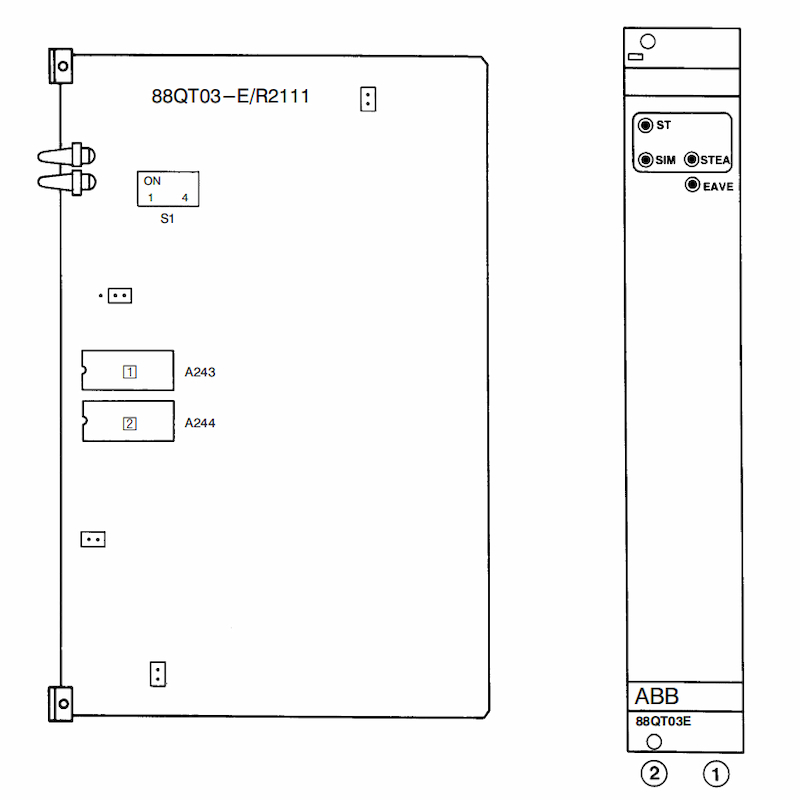

Disturbances are signal led to the PROCONTROL system in the form of diagnosis telegrams. They are indicated additionally on the front panel of the module by means of LEDs (see“Annunciation functions”).
The module can simulate output data destined for the input/output station.
The module merely requires a 24 V supply (voltages required additionally are generated inside the module).
User lists are loaded into an EEPROM by means ofthe PDDS.
The standard interface to the input/output station is available both on the station bus connector X11 and the process connector X21. The interface on connector X11 can be disabled by means of plug-in jumpers.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
88QT03C-E |
| Ordering Information |
GJR2374500R2111 |
| Product Catalog |
PROCONTROL System |
| Description |
Bus Coupling Module |
| Voltage |
24 V |
| Current |
0.5 A |
| Dimensions |
26.0 cm x 25.4 cm x 2 cm |
| Weight |
0.5 kg |
