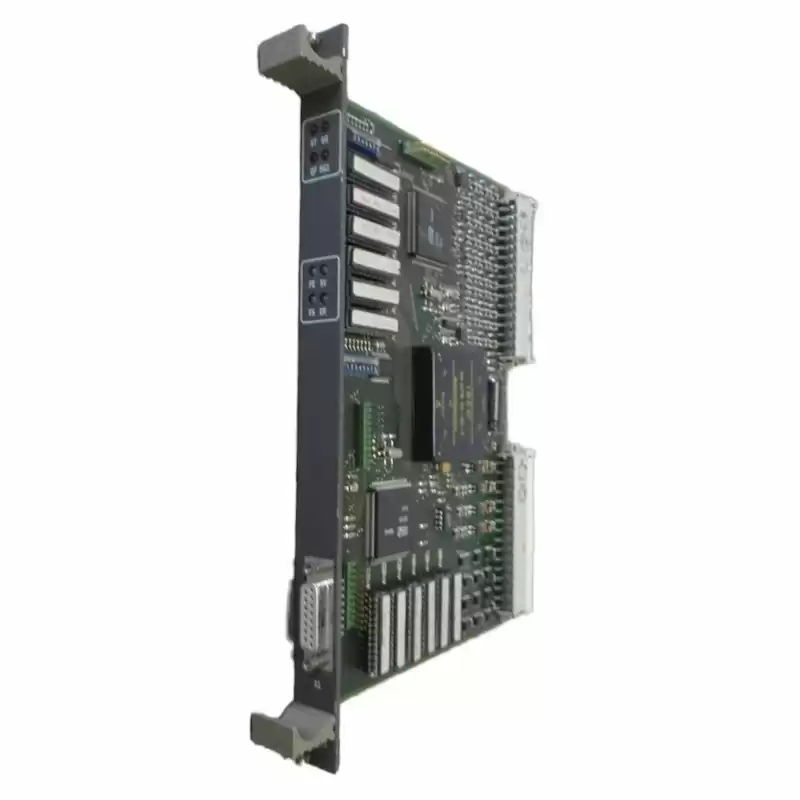

88TK05C-E GJR2393200R1220 Bus Coupling Module
The 88TK05C-E Bus Coupling Module is used in stations belonging to the PROCONTROL system.
In conjunction with remote-bus coupling module 88FT05, it is used for coupling a PROCONTROL station to the remote bus.
Moreover, the module controls all operations which are required to exchange data within a PROCONTROL station.
The connection of the station bus to the PROCONTROL remote bus may either be of single-channel or dual-channel design (cf. block diagram for 'Connecting the stations').
When installed in an autonomous station, the module performs the functions of a bus control module.
Features
The module is equipped with
- One standard interface (SS) with the station bus
- One RS485 interface with remote-bus coupling module 88FT05
- One module data interface with remote-bus coupling module 88FT05
- One potential-isolated monitoring interface
- One interface for dual-channel station-bus coupling
- One input for operating the transmitter output stages in remote-bus coupling module 88FT05.
The module uses module addresses 60 or 61 (depending on whether it is intended for single-channel or dual-channel mode) as well as module address 62 (cf. chapter on 'Setting the station, system and module addresses').
The module can be plugged into any slot of the PROCONTROL cabinet. In the standard cabinets, however, reserved slots are provided.
Error-free telegram transfer between the 88TK05 and older PROCONTROL modules located in the same station is ensured only if these modules have been manufactured after 1987 (serial nos. 9xx8 and higher).
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
88TK05C-E |
| Ordering Information |
GJR2393200R1220 |
| Product Catalog |
PROCONTROL |
| Description |
Bus Coupling Module |
| Voltage |
24 V |
| Current |
166 mA |
| Dimensions |
26.0 cm x 25.4 cm x 2 cm |
| Weight |
0.5 kg |
