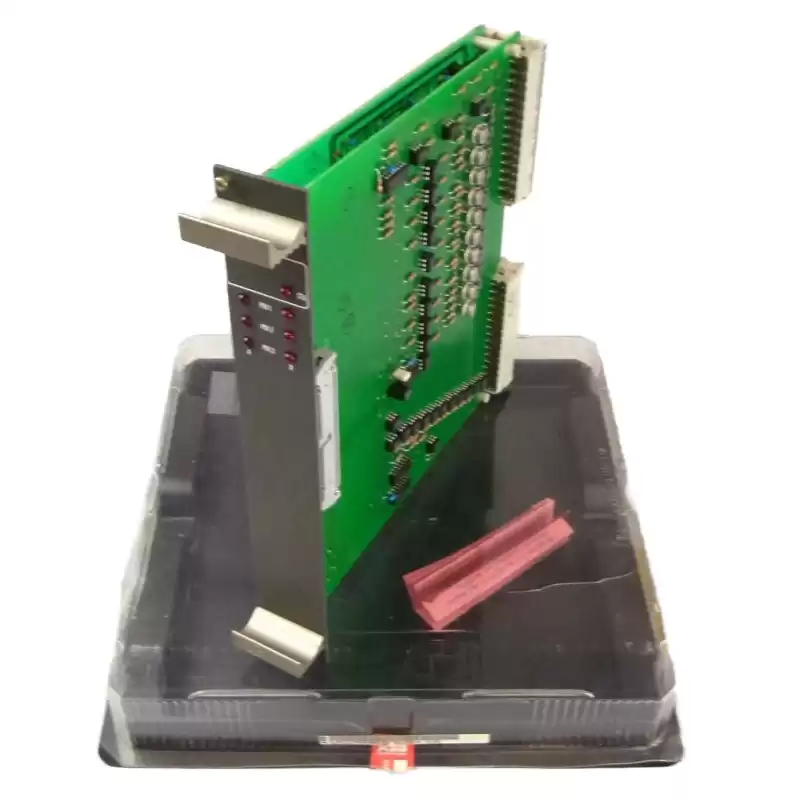

88UM01B GJR2329800R0100 Annunciation Module
The 88UM01B is a Annunciation Module, manufactured and designed by ABB as part of the P14 Series used in the ABB PROCONTROL P system.
The annunciation module for monitoring station is used within the PROCONTROL monitoring station.
It is used for conventional (i.e. parallel) signal transfer from the PROCONTROL bus system. Through this module, essential items of information are transferred from the master stations to the control room and to the process control communication system.
Features
The module is only installed once in the monitoring station.
Basically, it has four interfaces. Via two of them, it receives and transfers signals from and to both coupling modules for monitoring station 88 VU01 in the two master stations A and B. The third interface establishes the connection with the control room (console section). The process control communication system is connected to the fourth interface.
Seven light-emitting diodes are provided at the front of the module. They serve to indicate disturbances which have been detected in the two partial systems.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
88UM01B |
| Ordering Information |
GJR2329800R0100 |
| Product Catalog |
PROCONTROL P14 |
| Description |
Annunciation Module for Monitoring Station |
| Voltage |
24 V |
| Current |
1 A |
| Dimensions |
25.4 cm x 20.4 cm x 2 cm |
| Weight |
0.65 kg |
