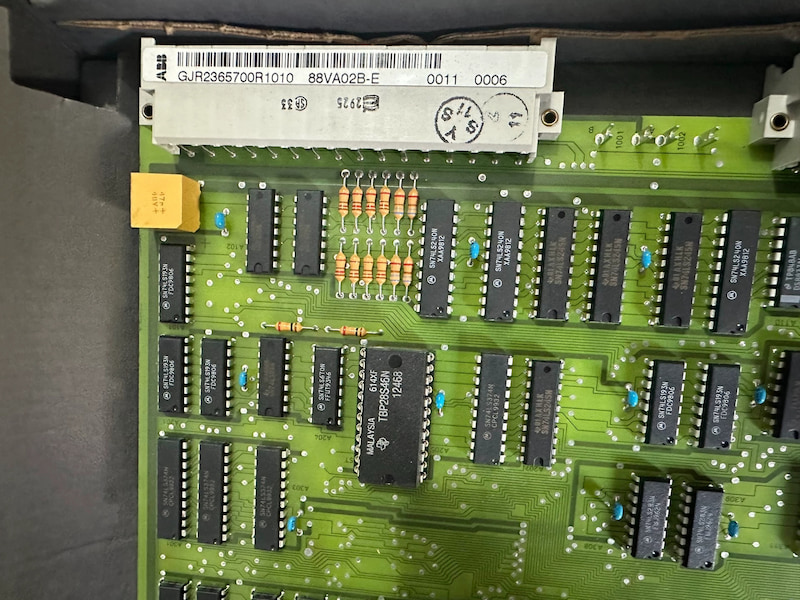

88VA02B-E GJR2365700R1010 Control Module
The 88VA02B-E control module for transfer procedure is used within a PROCONTROL master station.
Together with the modules 88 VP01/VP02 (master station processor module) and 88 VT01/VT02 (telegram handling module) it forms the central processor within the master station. This processor controls and monitors the entire data communication on the connected PRCONTROL remote bus system.
The module is available in two versions. These differ only by the fact that their number of telegrams per block is differently.
88 VA01-E/R1010: Reception of 8 telegrams per block
88 VA02-E/R1010: Reception of 8 or16 telegrams per block
Features
The module can be plugged into each of the two master stations of the PROCONTROL bus system, but is only available once for each station. It is provided with two standard interfaces: one of these is used to link the module with the master station bus to which all modules of the master station (including master station coupling modules 88 VK01) are connected. The second one is for the general bus (G-bus) which only connects the modules 88 VA01/VA02, 88 VP01/VP02 and 88 VT01/VT02 with each other.

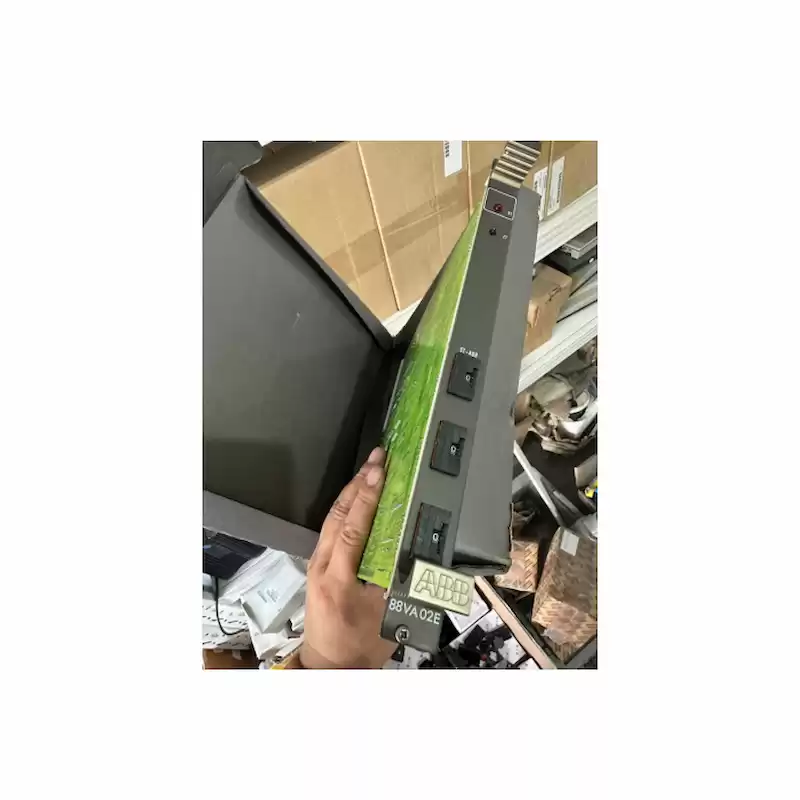

A light-emitting diode, a push button and three decimal switches are provided at the front of the module.
These components are used to determine whether faultless cyclic data exchange was carried out with a multi-purpose processing station, and to store on control module 88 VA01/VA02 the currently valid total number of the cyclic response telegrams of each multi-purpose processing station.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
88VA02B-E |
| Ordering Information |
GJR2365700R1010 |
| Product Catalog |
PROCONTROL System |
| Description |
Control Module |
| Voltage |
24 V |
| Current |
1.6 A |
| Dimensions |
25.4 cm x 20.3 cm x 2 cm |
| Weight |
0.45 kg |
