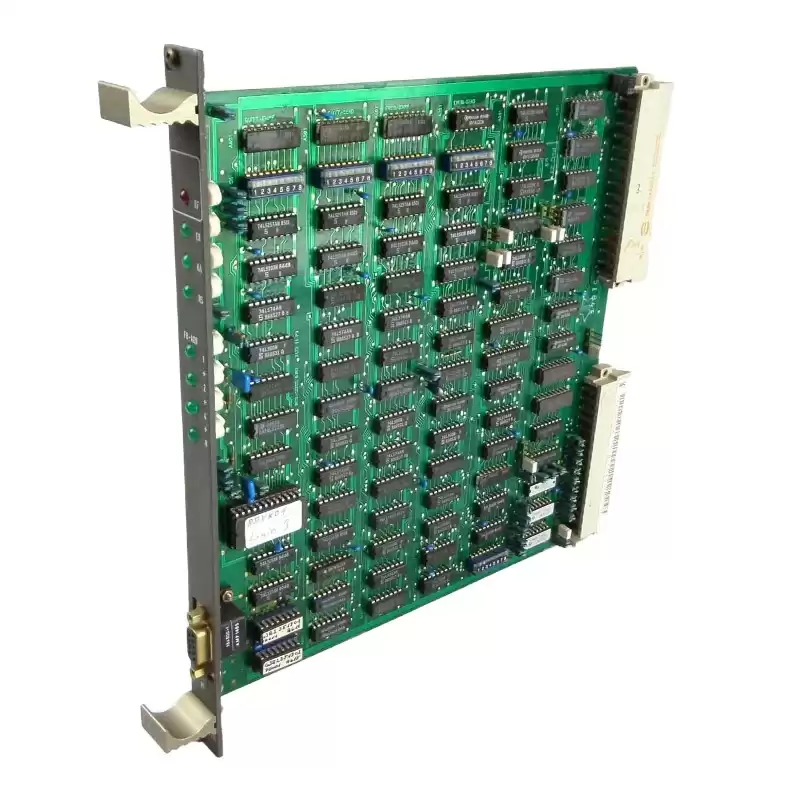

88VK01B-E GJR2312200R1010 Coupling Module
The 88VK01B-E coupling module for master station is used within a PROCONTROL master station.
It provides the connection between the bus of the master station and the local bus and, hence, also the remote bus.
Features
The module can be plugged into every master station of the PROCONTROL bus system. It is provided with a standard interface to the bus of the master station and a standard interface to the local bus. The remote bus is connected via the remote bus/local bus coupling module (88 FN01/FN02) and the frequency module for master station (88 FV01).
A maximum of 8 remote bus lines can be connected to every master station. Therefore, also up to 8 coupling available per modules are master station.
Eight light-emitting diodes are provided at the front of the module. Four are designed to indicate the number of connected remote bus line. Four are designed to indicate the various operating statuses.
Furthermore, a test plug is provided at the front. At this plug, the most important transfer signals can be measured by means of an oscilloscope.
Functional Diagram

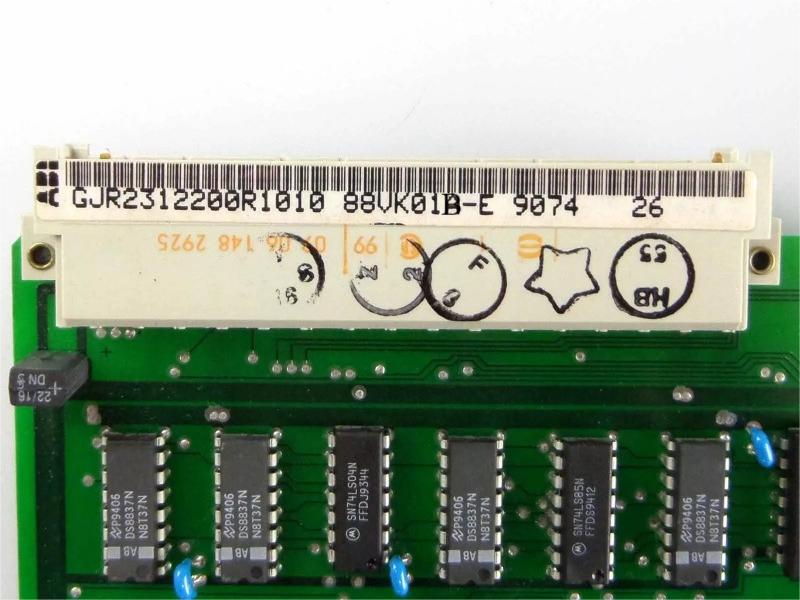

The module is equipped with the two connectors X2 and X3. Connector X2 incorporates the master station-bus interface and the voltage supply.
Connector X3 incorporates the local bus interface.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
88VK01B-E |
| Ordering Information |
GJR2312200R1010 |
| Product Catalog |
PROCONTROL System |
| Description |
Coupling Module |
| Voltage |
24 V |
| Current |
1.4 A |
| Dimensions |
25.4 cm x 20.3 cm x 2 cm |
| Weight |
0.45 kg |
