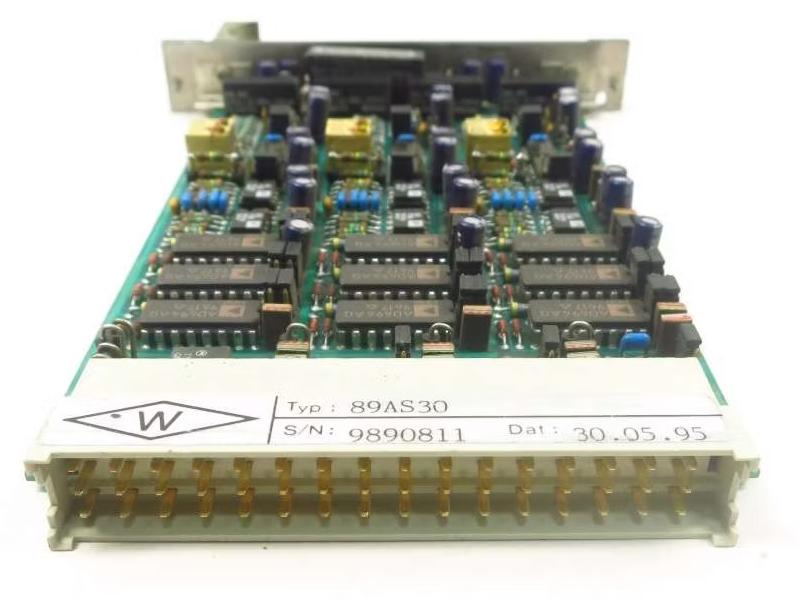

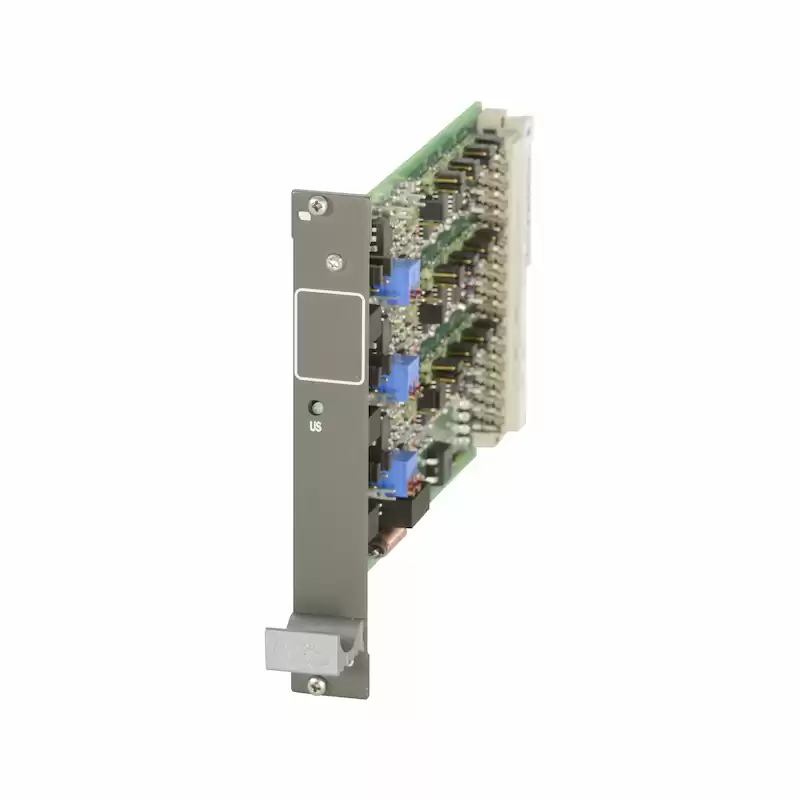

89AS30 GKWN000317R0100 Analog Signal Multiplier
Application
This module is used for converting and multiplying analog signals.
Features
The module is designed to process input signals of a level of 0 ... 20 mA or 4 ... 20 mA or 0 ... 10 V DC, the ranges being selected by means of jumpers. From the input signal, three output signals of 0 ... 20 mA or 4 ... 20 mA are formed which can be selected individually by using jumpers; also a signal of 0 .. 10 V is formed.
Functional Description
The inputs are electrically isolated from the rest of the circuitry. For supplying transmitters and other devices, a voltage of 15 W or 24 V DC is available for each input, also electrically isolated.
The module contains three identical function units. The outputs are separated.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
89AS30 |
| Ordering Information |
GKWN000317R0100 |
| Product Catalog |
PROCONTROL P14 |
| Description |
Analog Signal Multiplier |
| Voltage |
24 Vdc |
| Current |
110 mA |
| Dimensions |
19.8 cm x 12.3 cm x 2 cm |
| Weight |
0.3 kg |
