ABB 89NG03 GJR4503500R0001 Power Supply Module
ABB 89NG03 GJR4503500R0001 is a 3-phase AC power supply module designed for use in industrial control systems. Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.
89NG03 GJR4503500R0001 Power Supply Module

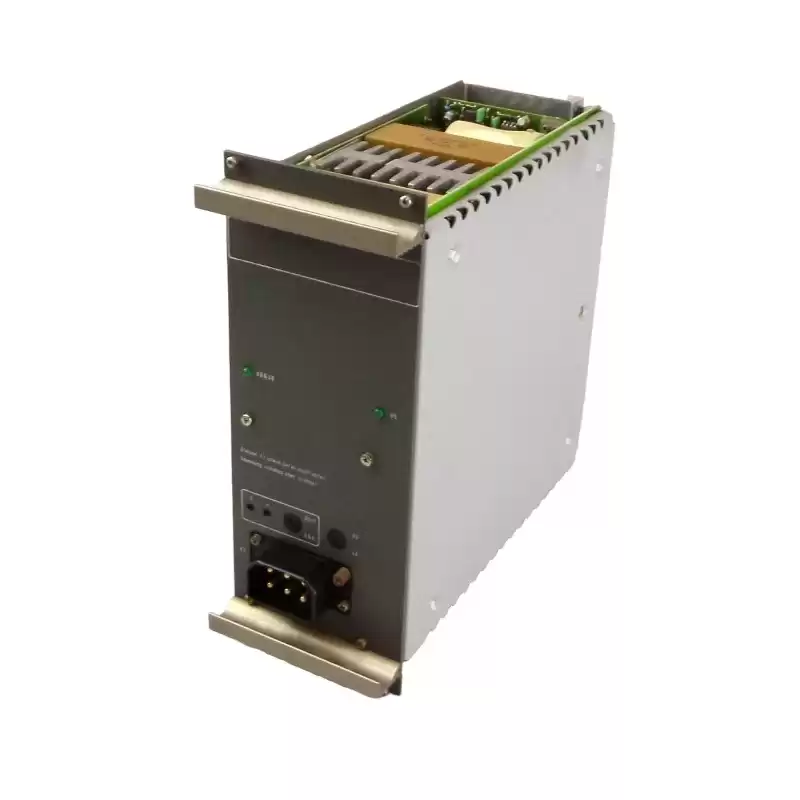

The 89 NG03 power supply module is used for switching and generating the voltages required in a station bus sub rack of a PROCONTROL multi-purpose processing station. Since each module sub rack has its own voltage supply, the power supply devices are used altogether 4 times for the multi-purpose processing station.
The printed circuit board 89 IL01, although a self-contained module, is a permanent accessory to the power supply module 89 NG03. It is provided with a row of connectors for connecting cables and for forming a support point.
Features
The power supply module is fed via a plug on the front panel. The process voltage US = +24 VDC is switched depending on the internal voltage UD. The process voltage UV= -24VDC, the reference conductor Z, the annunciation and flashing voltage are only connected through the module.
The voltages UB+ = +24 VDC and UD+ = +5 VDC (with reference conductor ZD) on the bus side and required by the modules are generated via DC/DC converters and are potential-isolated.
The module must not be plugged or withdrawn when live, in order to prevent destruction.
The voltages US, UB+ and UD supplied to the station bus are monitored by the module. In the event of a disturbance, an annunciation and/or switch off takes place.
Technical Specifications
Manufacturer | ABB |
Part Number | 89NG03 |
Ordering Information | GJR4503500R0001 |
Product Catalog | PROCONTROL P14 |
Description | Power Supply Module |
Voltage | 24 V |
Current | 4 A |
Dimensions | 22 cm x 20 cm x 5 cm |
Weight | 4.6 kg |
