89NG08R1000 GKWN000297R1000 Power Supply Module
The 89NG08R1000 power supply module is used for connection and disconnection, distribution, over voltage limitation and monitoring of two redundant supplies, A and B, for a PROCONTROL cabinet. Three versions of the module are available. They differ in the equipment provided for the main circuits:
89NG08/R1000 for a PROCONTROL cabinet with 2 stations
89NG08/R1100 for a PROCONTROL cabinet with 3 stations
89NG08/R1200 for a PROCONTROL cabinet with 4 stations
Description

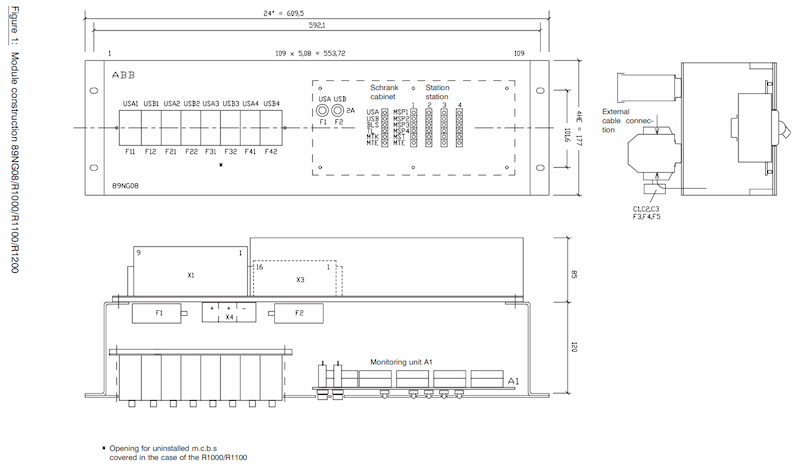

Based on the 19" type to DlN 41494 and lEC publication no.297, the supply module is intended to be mounted on 24"racks, cf. Figure 1.
The m.c.b.s of the main circuits can be operated from the module front. Only the m.c.b.s necessary are provided for each version.

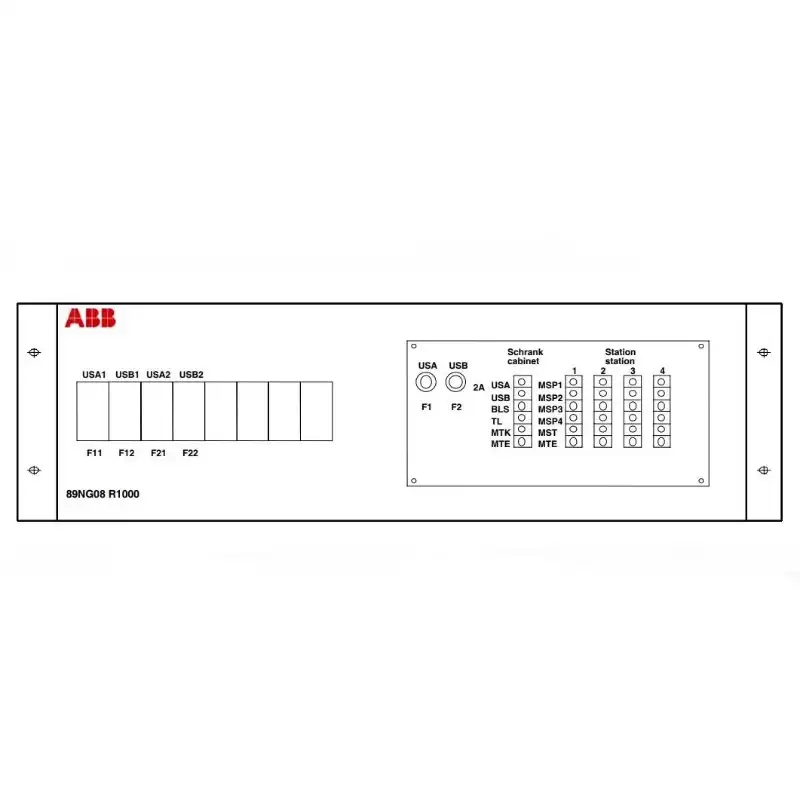

The annunciating unit is the same for all versions and can be connected as required. The signals are annunciated on the front by means of light-emitting diodes.
The supply module is connected on the module rear using terminal blocks for the main circuits and connectors for the signal ling circuits.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
89NG08R1000 |
| Ordering Information |
GKWN000297R1000 |
| Product Catalog |
PROCONTROL P14 |
| Description |
Power Supply Module |
| Voltage |
24 V |
| Current |
2 A |
| Dimensions |
177.8 mm x 609.6 mm x 205 mm |
| Weight |
7 kg |
