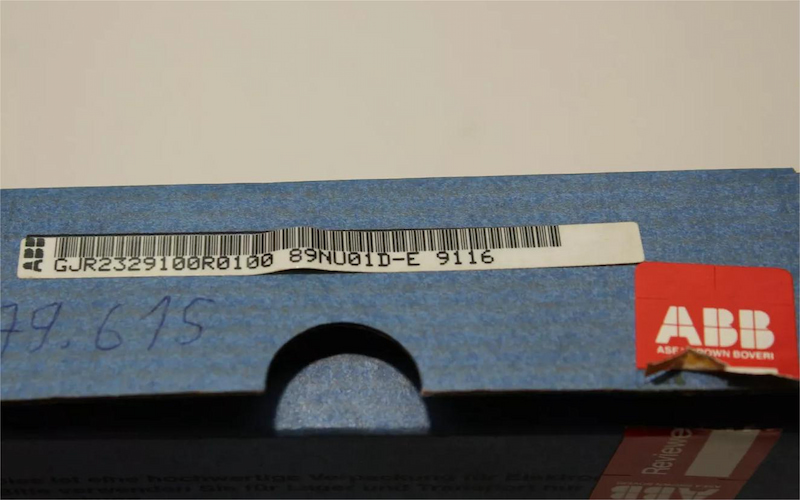

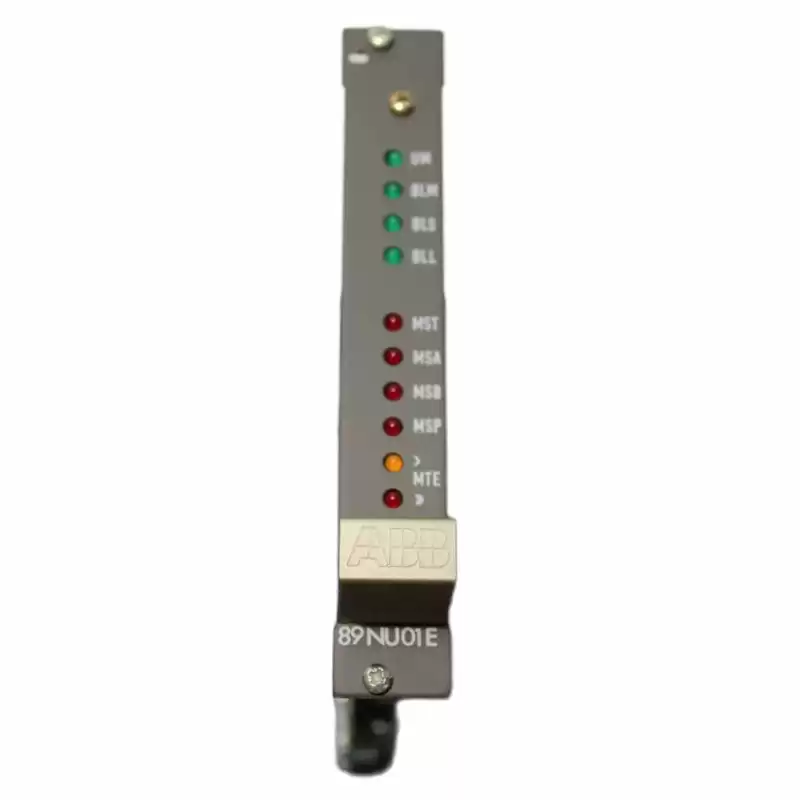

89NU01D-E GJR2329100R0100 Voltage Monitoring Module
The 89NU01D-E is a Voltage Monitoring Module, manufactured and designed by ABB as part of the P14 Series used in the ABB PROCONTROL P system.
The module for monitoring and flashing voltages 89 NU01 is used in the power supply sub rack of each PROCONTROL multi-purpose processing station. It is used for monitoring the station power supplies, the cubicle temperature and the cubicle doors. It provides the annunciation voltage for monitoring the cubicles and is provided with amplifiers for two cubicle panel lamps and one cubicle row lamp. It is also the central flashing generator unit of a multi-purpose processing station.
Features
The module requires the following supply voltages:
USA and/or USB operating voltages + 24 VDC.
The annunciation voltage UM is formed inside the module from the voltages USA and USB and is provided at the appropriate outputs and is short-circuit-proof.
The following voltages can be supplied as auxiliary voltages:
UVA and/or UVB operating voltages -24 VDC.
The contact inputs MSA, MSB, MSP, MTE and MTK are negatively biased with this negative voltage to increase the safety of the contacts.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
89NU01D-E |
| Ordering Information |
GJR2329100R0100 |
| Product Catalog |
PROCONTROL P14 |
| Description |
Voltage Monitoring Module |
| Voltage |
24 V |
| Current |
60 mA |
| Dimensions |
25.4 cm x 20.4 cm x 2 cm |
| Weight |
0.3 kg |
