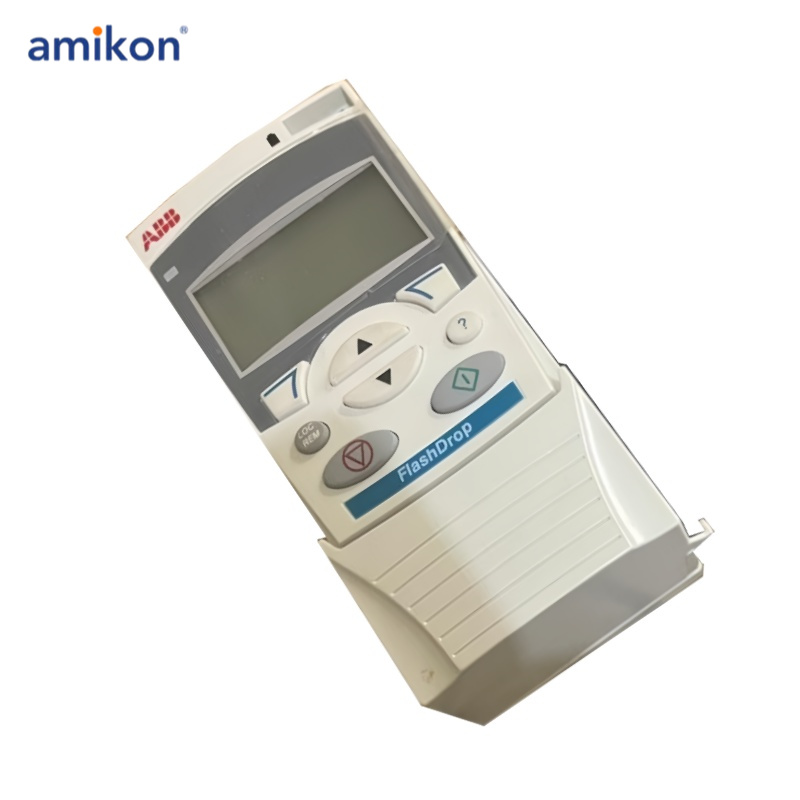

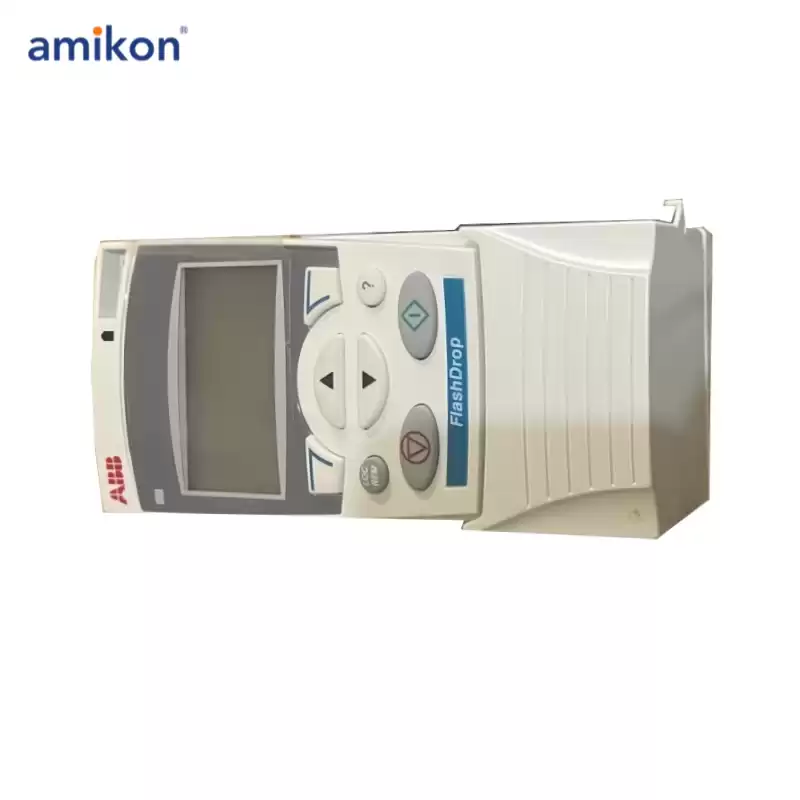

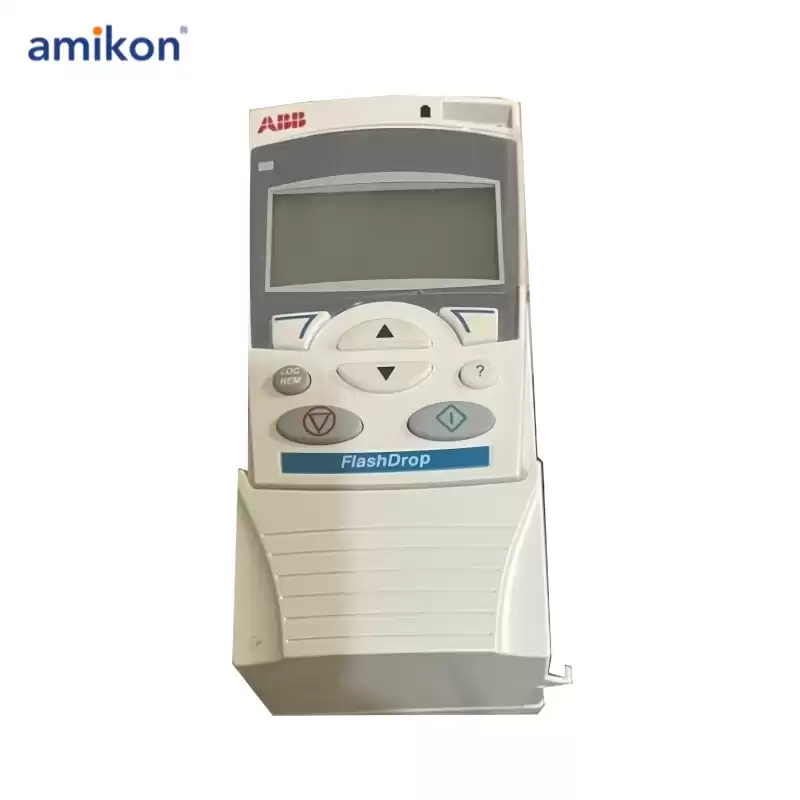

ABB ACS Drive Programming Tool FLASHDROP MFDT-01

Brand new and original sealed//Same Day Shipment

Dimensions27.9 cm x 19.1 cm x 20.3 cm
Weight4.5KG
Country of OriginSweden
Brand/ManufaturerABB
Warranty PeriodOne Year Warranty
Payment Term100% Advance Payment T/T Bank Wire Transfer

Description

The ABB ACS Drive Programming Tool FLASHDROP MFDT-01 is a device used for programming and configuring ABB ACS drives. It is a portable tool that allows users to easily transfer drive parameters and configurations from one drive to another. The tool connects to the drive via USB and can be used to quickly update drive settings, monitor performance, and troubleshoot issues. The FLASHDROP MFDT-01 is designed to simplify the programming process for ABB ACS drives and make it easier for users to maintain and adjust their drive systems.

FlashDrop-drive
The FlashDrop is connected to the drive with the programming tip. The drive can be installed or remain in the package.
Note: The drive must be disconnected from the mains (AC power source) when the FlashDrop is connected.

How to install DrivePM tool, version 1.1 or later
DrivePM (Drive Parameter Manager) is a PC tool for
1) creating and editing parameter sets of ACS150, ACS350, ACS550 and ACH550 to be suitable for FlashDrop unit,
2) transferring these sets between PC and FlashDrop,
3) transferring template files to FlashDrop and
4) updating FlashDrop firmware.
DrivePM is designed to run under the Microsoft Windows 2000 or Windows XP operating systems on IBM -compatible PCs.

You should quit all applications before starting the installation. Uninstall any previous version of DrivePM before installing. You must have Administrator privileges to be able to do the installing. Before continuing, kindly remove all files that Windows was not able to remove from DrivePM directory and it's subdirectories.

1. Run the SETUP.EXE from the root directory of this CD.
2. Follow the instructions given by the Installation Wizard.

DrivePM contains online help which can started by pressing 'F1' key or from the 'Help' Menu. Online Help requires MS InternetExplorer 3.0 or later installed in the computer.
