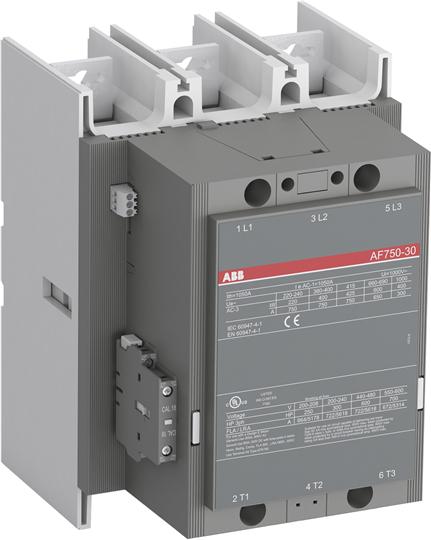

ABB AF750 30 11 400KW 230V
1.AF750 30 11 400KW 230V we sell is 100% New Original Factory packing in good condition and have been tested before they are shipped. We will try our best to avoid any quality problems.
2.We will offer the technical support by experienced staff, which have undergone rigorous testing and certification!
3.We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects with the products, please contact us firstly, we will exchange it or offer other solutions for you to make a choice.
4.If you order more than one item, please contact us, we can offer further discounts for you. And if you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their price,even further discounts.
E-mail: plcinfo@mooreplc.com
AF750 30 11 400KW 230V
Manufacturer(s)
ABB
General Information
Extended Product Type:
AF750-30-11-70
Product ID:
1SFL637001R7011
EAN:
7320500217702
Catalog Description:
AF750-30-11 100-250V 50/60Hz / 100-250V DC Contactor
Long Description:
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, AC/DC
Categories
Products » Low Voltage Products and Systems » Control Products » Contactors » Block Contactors
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
1SBC100122C0202
Instructions and Manuals:
1SFC380023-en
Dimension Diagram:
53540919-60
Dimensions
Product Net Width:
210.0 mm
Product Net Depth / Length:
242.0 mm
Product Net Height:
283.0 mm
Product Net Weight:
15.000 kg
Technical
Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
1
Rated Operational Voltage:
Main Circuit 1000 V
Rated Frequency (f):
Main Circuit 50/60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors q = 40 °C 1050 A
Rated Operational Current AC-1 (Ie):
(690 V) 55 °C 875 A
(690 V) 40 °C 1050 A
(1000 V) 40 °C 1000 A
(1000 V) 55 °C 875 A
(690 V) 70 °C 720 A
(1000 V) 70 °C 720 A
Rated Operational Current AC-3 (Ie):
(1000 V) 55 °C 300 A
(690 V) 55 °C 650 A
(415 V) 55 °C 750 A
(220 / 230 / 240 V) 55 °C 750 A
(440 V) 55 °C 750 A
(380 / 400 V) 55 °C 750 A
(500 V) 55 °C 750 A
Rated Operational Power AC-3 (Pe):
(220 / 230 / 240 V) 220 kW
(380 / 400 V) 400 kW
(415 V) 425 kW
(440 V) 450 kW
(500 V) 520 kW
(690 V) 600 kW
(1000 V) 400 kW
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
10 x Ie AC-3
Short-Circuit Protective Devices:
gG Type Fuses 1000 A
Rated Short-time Withstand Current (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A
Maximum Electrical Switching Frequency:
AC-3 300 cycles per hour
AC-1 300 cycles per hour
AC-2 / AC-4 60 cycles per hour
Rated Operational Current DC-1 (Ie):
(850 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Current DC-3 (Ie):
(850 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Current DC-5 (Ie):
(850 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
Rated Insulation Voltage (Ui):
acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 8 kV
Mechanical Durability:
3 million
Maximum Mechanical Switching Frequency:
300 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) °C
Rated Control Circuit Voltage (Uc):
60 Hz 100 ... 250 V
50 Hz 100 ... 250 V
DC Operation 100 ... 250 V
Coil Consumption:
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Operate Time:
Between Coil Energization and NO Contact Closing 50 ... 120 ms
Between Coil De-energization and NO Contact Opening 53 ... 73 ms
Between Coil De-energization and NC Contact Closing 50 ... 70 ms
Between Coil Energization and NC Contact Opening 45 ... 115 ms
Connecting Capacity Main Circuit:
Rigid Al-Cable 3x185 mm²
Bar 52 mm
Rigid Cu-Cable 300 mm²
Connecting Capacity Auxiliary Circuit:
Solid 2 x 1 ... 4 mm²
Flexible with Insulated Ferrule 2 x 0.75 ... 2.5 mm²
Stranded 1 x 1 .... 4 mm²
Flexible 1x0.75 ... 2.5 mm²
Flexible with Ferrule 2 x 0.75 ... 2.5 mm²
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Main Circuit: Bars
Environmental
Ambient Air Temperature:
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... +50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +70 °C
Close to Contactor for Storage -40 ... +70 °C
Maximum Operating Altitude Permissible:
3000 m
Resistance to Shock acc. to IEC 60068-2-27:
Shock Direction: A 5 g
Shock Direction: C2 5 g
Shock Direction: C1 5 g
Shock Direction: B2 5 g
Shock Direction: B1 5 g
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
General Use Rating UL/CSA:
(600 V AC) 900 A
Horsepower Rating UL/CSA:
(208 V AC) Three Phase 250 Hp
(440 ... 480 V AC) Three Phase 600 Hp
(550 ... 600 V AC) Three Phase 700 Hp
(220 ... 240 V AC) Three Phase 300 Hp
(200 V AC) Three Phase 250 Hp
Certificates and Declarations (Document Number)
ABS Certificate:
15-LD1408622-PDA
BV Certificate:
BV_13409-C0BV
CB Certificate:
SE-82863
CCC Certificate:
CQC_2007010304256684
CCS Certificate:
GB14T00030
CSA Certificate:
306712-1
cUL Certificate:
UL_20111101-E36588
Declaration of Conformity - CE:
1SFA1-65
DNV Certificate:
DNV_E-10966
DNV GL Certificate:
TAE00001W1
EAC Certificate:
EAC_RUC-SE.ME77.B.01005
Environmental Information:
1SFC101005D0201
GL Certificate:
GL_42988-02HH
Instructions and Manuals:
1SFC380023-en
LOVAG Certificate:
SE-0151293
LR Certificate:
16-20064
PRS Certificate:
TE_2092_880423_16
RINA Certificate:
ELE060313XG_002
RMRS Certificate:
9AKK107045A6978
RoHS Information:
1SFC101055D0202
UL Listing Card:
UL_E36588
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
290 mm
Package Level 1 Depth / Length:
270 mm
Package Level 1 Height:
350 mm
Package Level 1 Gross Weight:
15 kg
Package Level 1 EAN:
7320500217702
Classifications
Object Classification Code:
Q
E-nummer:
3228366
ETIM 4:
EC000066 - Magnet contactor, AC-switching
ETIM 5:
EC000066 - Magnet contactor, AC-switching
ETIM 6:
EC000066 - Power contactor, AC switching
Additional Information
