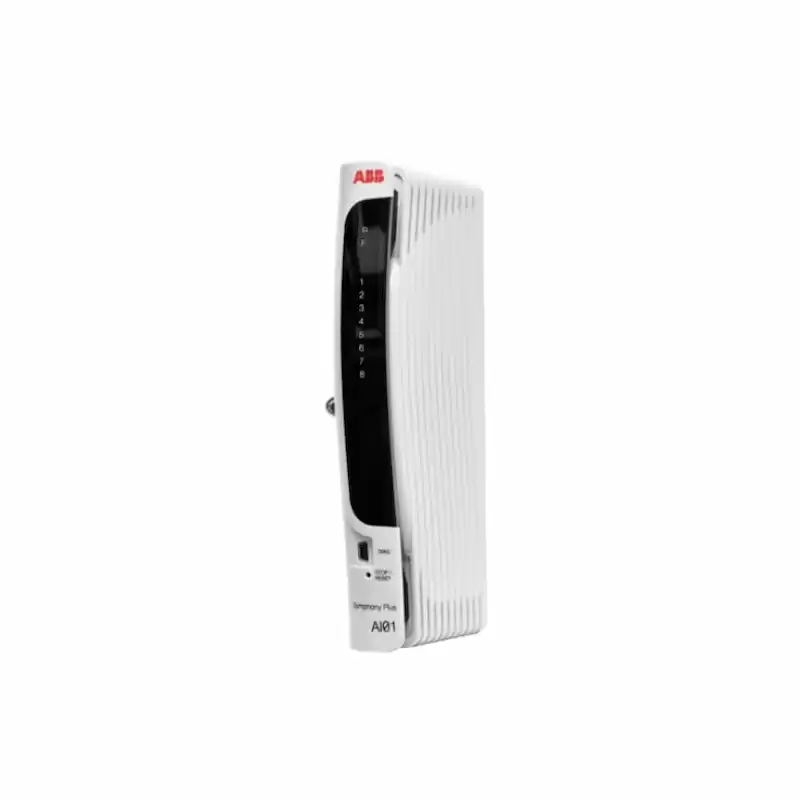

ABB AI01 Analog Input Module
SD Series I/O modules
The AI01 analog input module processes up to 16 analog field inputs. Field inputs are isolated into two groups of eight. Each input channel can be individually programmed for:
– 4 to 20 mA
– 1 to 5 VDC
– 0 to 5 VDC
– 0 to 10 VDC
– 10 to +10 VDC
The AI01 can be used with either HBS01-FPH or HBS01-EPD bases.
Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
-
- Features and benefits
-
- 8 channels for 0...20 mA, 4...20 mA d.c., single ended unipolar inputs
-
- 1 group of 8 channels isolated from ground
-
- 12 Bit resolution
-
- Input shunt resistors protected to 30 V by PTC resistor
-
- Analog inputs are short circuit secured to ZP or +24 V
-
- The input withstand HART communication
-
- Process and power connections via detachable connectors
-
-
Technical data
|
Power requirements
|
24 VDC +12%, -10% at 75 mA typical, 84 mA max.
|
|
Analog input channels
|
16 independently configured channels
|
|
- Current
|
4 to 20 mA
|
|
- Voltage
|
1 to 5 VDC
|
|
A/D Conversion
|
1 A/D converter per group, 8 inputs per group
|
|
- Resolution
|
16 bits with polarity
|
|
- Conversion time
|
22.5 ms per configured input; 180 ms if all channels
are configured
|
|
Ambient temperature
|
-20 °C to 70 °C (-4 °F to 158 °F). Tested according
to IEC/EN 60068-2-1, IEC/EN 60068-2-2
|
|
Service port
|
1 mini-USB port
|
|
|
51mm width, 190 mm height, 138 mm depth
( 2 in. width, 7.48 in. height, 5.43 in. depth)
|
|
Weight
|
0.4 kg |
