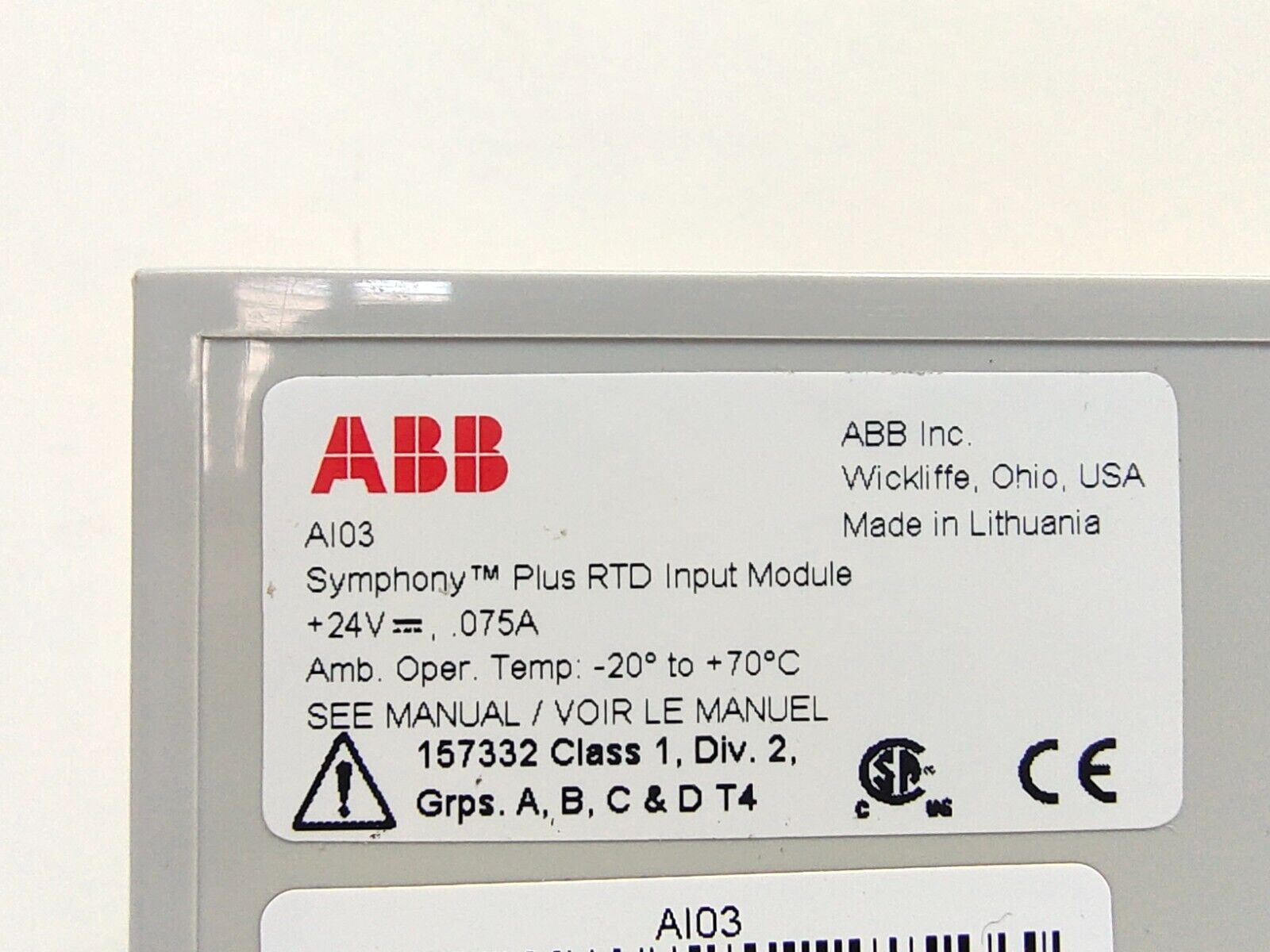

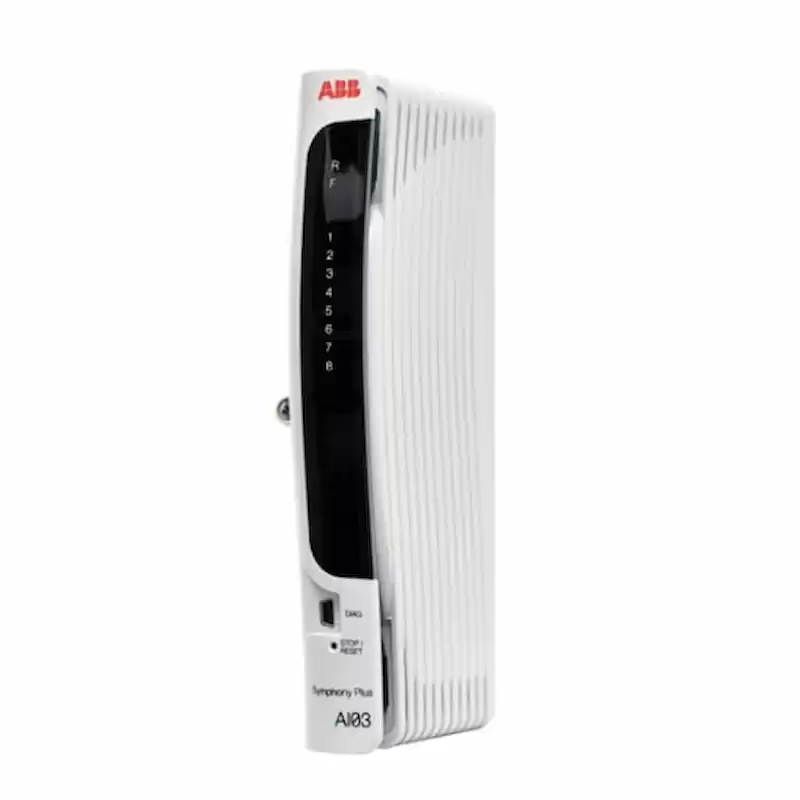

ABB AI03 Analog Input Module
SD Series I/O modules
The AI03 analog input module processes eight channels of 2, 3 or 4 wire RTD temperature field inputs. Each channel can be individually programmed for one of the types in the table below. The module is automatically calibrated and compensated.
The AI03 can be used with the HBS01-CJC base.
Technical data
|
Power requirements
|
24 VDC +12%, -10% at 68 mA typical, 76 mA max.
|
|
Analog input channels
|
8 independently configured channels
|
|
- RTD
|
Supports 2-wire, 3-wire and 4-wire RTD inputs
100 Ω platinum US laboratory standard
100 Ω platinum US industry standard
100 Ω platinum European standard
120 Ω nickel
Chinese 53 Ω copper
|
|
Ambient temperature
|
-20 °C to 70 °C (-4 °F to 158 °F). Tested according
to IEC/EN 60068-2-1, IEC/EN 60068-2-2
|
|
Service port
|
1 mini-USB port
|
|
Dimensions (with base)
|
51mm width, 190 mm height, 138 mm depth
(2 in. width, 7.48 in. height, 5.43 in. depth)
|
| Weight |
0.4 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
