ABB AI05 HART Analog Input Module
SD Series I/O modules

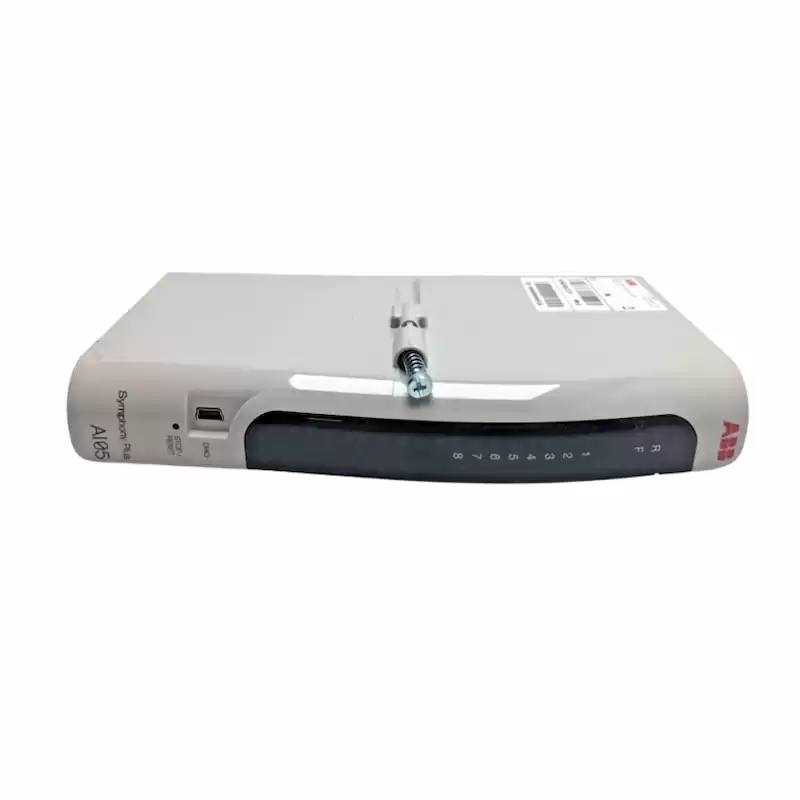

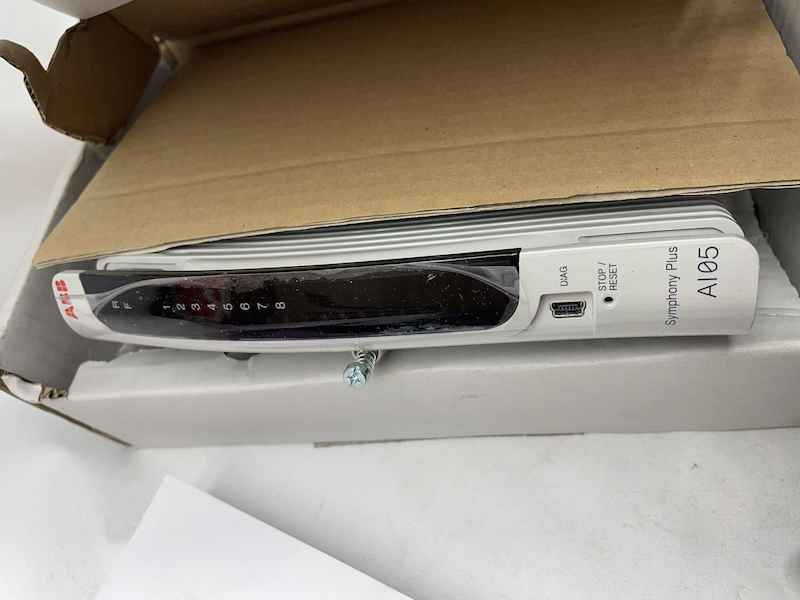

The AI05 HART Analog Input module processes up to 8 high level analog field inputs for a Symphony Plus controller. The controller uses function code 221 (I/O Device Definition) to configure the module, and function code 222 (Analog In/Channel) to configure and access each module input channel. Each channel can be individually programmed for current or voltage inputs.
Comparing to AI02, the AI05 module provides higher performance with additional features of individual channel isolation ,dedicated HART modem and A/D converter per channel. AI05 supports up to 32 secondary variables.
The AI05 can be used with HBS01-FPH, HBS01-FPN or HBS01-EPD base.
Technical data
|
Power requirements (logic power)
Operating voltage
Current
|
24 VDC ± 12%, -10%
100 mA typical
|
|
Power requirements (IO power)
Operating voltage
Current
|
24 VDC ± 10%
20 mA / channel
|
|
Channels
|
8 independently configured channels
|
|
Analog input
Current
Voltage
|
4 to 20 mA
1 to 5 VDC
|
|
HART function
Number of HART modem
Number of HART Secondary Variables
HART Secondary variable update rate
|
HART function is designed to work under current mode only
1 modem per channel, total 8
Up to 4 per channel, 32 per module
650 milliseconds typical, 750 milliseconds maximum
|
|
A/D conversion
Resolution
Conversion update rate
|
1 A/D converter
12 bit
100 ms for all channels
|
|
Operating temperature
|
-20° to 70°C (-4° to 158°F).
Tested according to IEC/EN 60068-2-1, IEC/EN 60068-2-2
|
|
Service port
|
1 mini-USB port
|
|
Dimensions (with base)
|
51mm width, 190 mm height, 138 mm depth
(2 in. width, 7.48 in. height, 5.43 in. depth)
|
|
Weight
|
0.4 kg |
