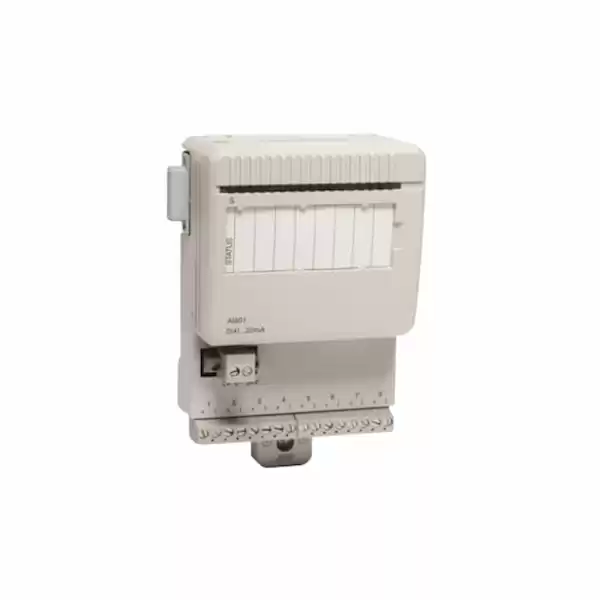

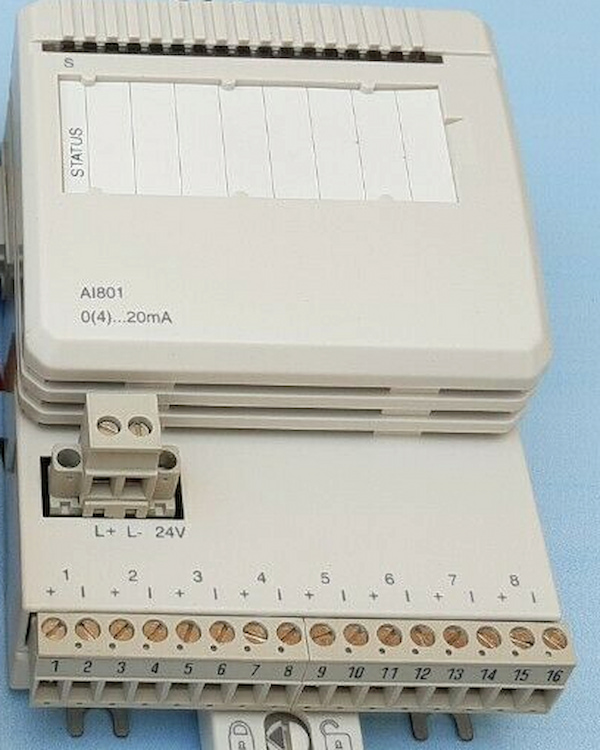

ABB AI801 3BSE020512R1 Analog Input Module 8 channels
The AI801 Analog Input Module has 8 channels for current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage.
Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
Features and benefits
· 8 channels for 0...20 mA, 4...20 mA d.c., single ended unipolar inputs
· 1 group of 8 channels isolated from ground
· 12 Bit resolution
· Input shunt resistors protected to 30 V by PTC resistor
· Analog inputs are short circuit secured to ZP or +24 V
· The input withstand HART communication
· Process and power connections via detachable connectors
Technical Specifications
| Article number |
3BSE020512R1 |
| Type |
Analog Input |
| Signal specification |
0...20mA, 4...20mA |
| Number of channels |
8 |
| Signal type |
Unipolar single ended |
| HART |
No |
| SOE |
No |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
No |
| Mechanics |
S800L |
