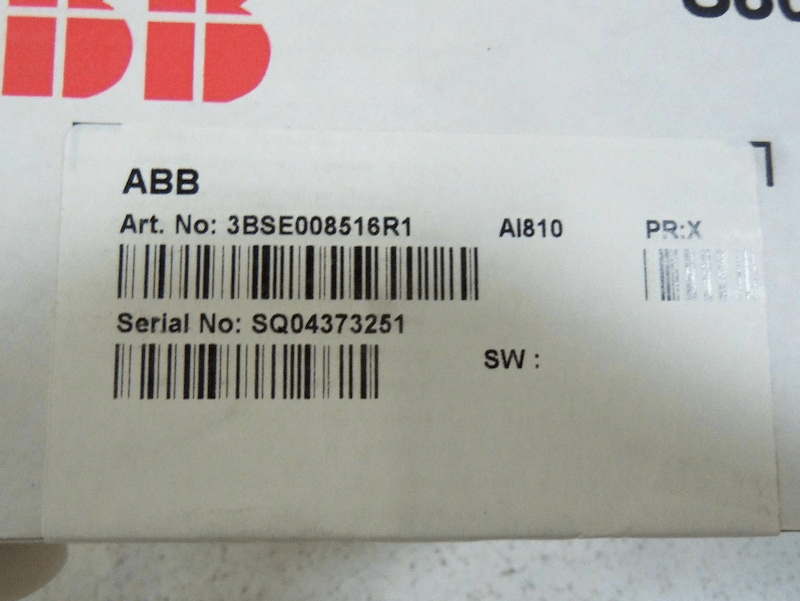

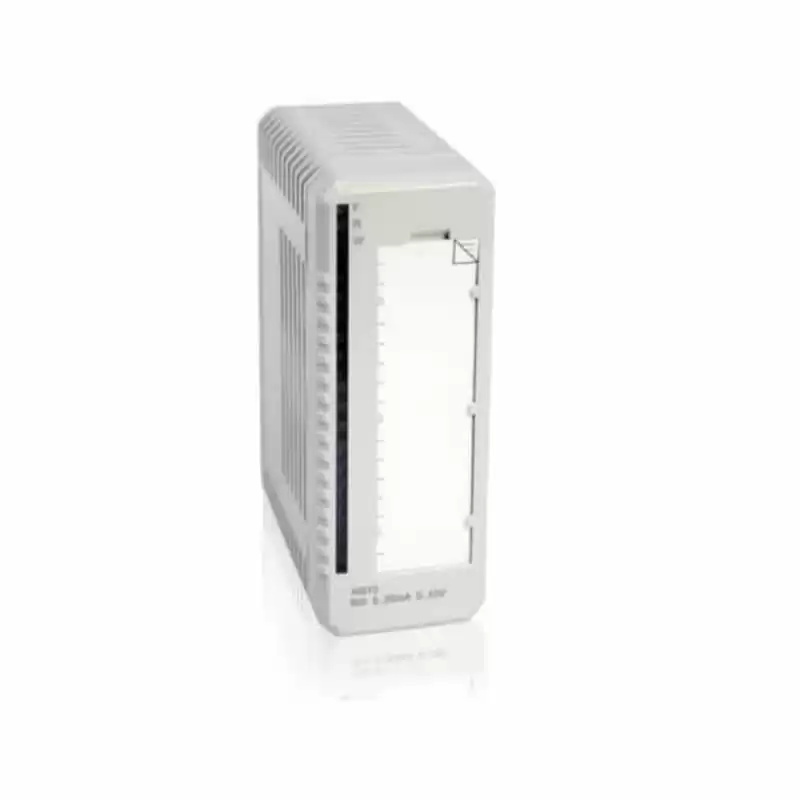

ABB AI810 3BSE008516R1 Analog Input Module 8 channels
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
The voltage input is able to withstand an over or under voltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.
Features and benefits
· 8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
· 1 group of 8 channels isolated from ground
· 12 Bit resolution
· Input shunt resistors protected to 30 V by PTC resistor
· Analog inputs are short circuit secured to ZP or +24 V
· The input withstand HART communication.
Technical Specifications
| Article number |
3BSE008516R1 |
| Type |
Analog Input |
| Signal specification |
0..20mA, 4..20mA, 0..10V, 2..10V |
| Number of channels |
8 |
| Signal type |
Unipolar single ended |
| HART |
No |
| SOE |
No |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
No |
| Mechanics |
S800 |
