ABB Ability™ System 800xA® hardware selector

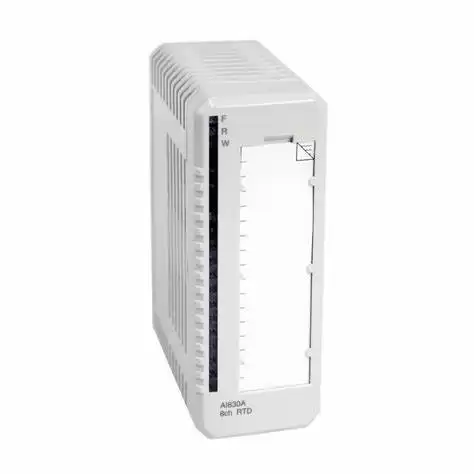

The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3- wire connections. All the RTDs must be isolated from ground.
The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.
Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).
Features and benefits
· 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs
· 3-wire connection to RTDs
· 14 Bit resolution
· Inputs are monitored for open-circuit, short circuit and has a input grounded sensor
Technical Specifications

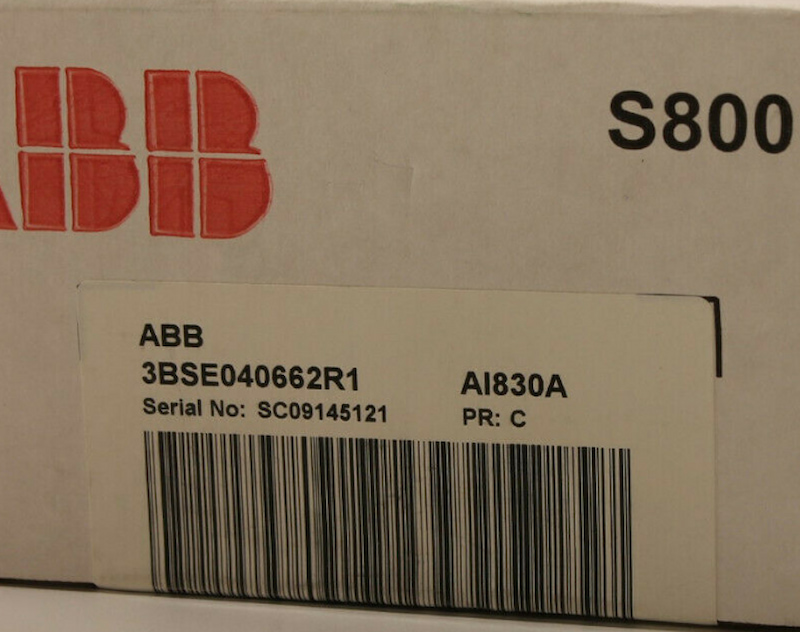

| Article number |
3BSE040662R1 |
| Type |
Analog Input |
| Signal specification |
3-wire RTD: Pt100, Cu10, NI100, Ni120 and resistive potentiometer |
| Number of channels |
8 |
| Signal type |
See table in S800Modules and Termination Units, 3BSE020924 |
| HART |
No |
| SOE |
No |
| Redundancy |
No |
| High integrity |
No |
| Intrinsic safety |
No |
| Mechanics |
S800 |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
