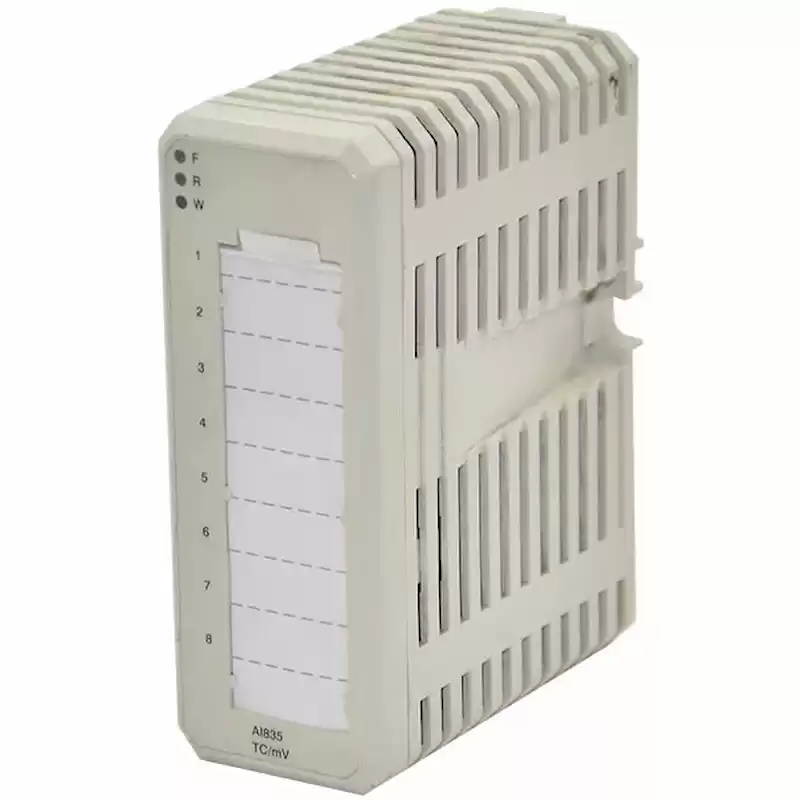

ABB AI835 3BSE008520R1 Analog Input Module

AI835 - Analog Input Module is available in stock and ready for ship. The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.US$500.00

Facebook Twitter Pinterest LinkedIn 分享

Description

AI835

ABB Ability™ System 800xA® hardware selector

The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E,J, K, N, R, S and T, for AI835A also D, L and U. One of the channels (Channel 8) may be configured for “Cold Junction”(ambient) temperature measurements, thus serving as CJ channel for Ch.1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device. Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch.1...7 when no CJ temperature measurement is needed.

Features and benefits

· 8 differential input channels for thermocouple/mV.

· Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD).

· Variety of thermocouples with the following characteristics: B, C, E,J, K, N, R, S and Tfor AI835A also D, L and U.

· 15 Bitresolution (A/D).

· Inputs are monitored for wire-break open-circuit.

Technical Specifications

Manufacturer	ABB
Part Number	AI835
Ordering Information	3BSE008520R1
Product Catalog	S800 I/O Modules
Description	Analog Input Module
Input impedance	> 1 MΩ
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	1.6 W
Currentconsumption +5 VModulebus	75 mA
Currentconsumption +24VModulebus	50 mA
Front LED's	F(ault), R(un), W(arning)
Dimensions	150 mm x 75 mm x 75 mm
Weight	0.2 kg
