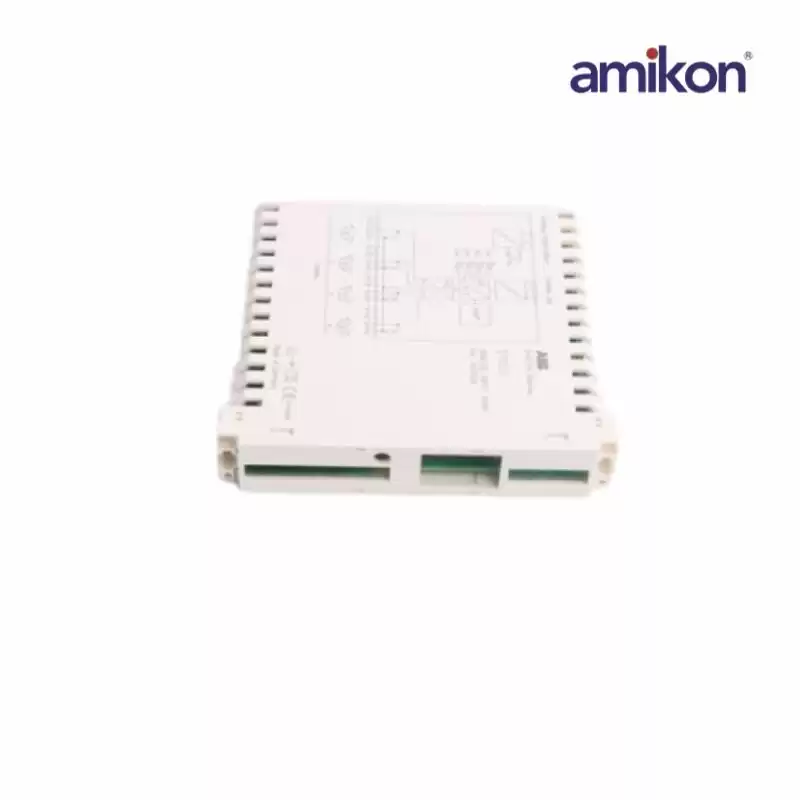

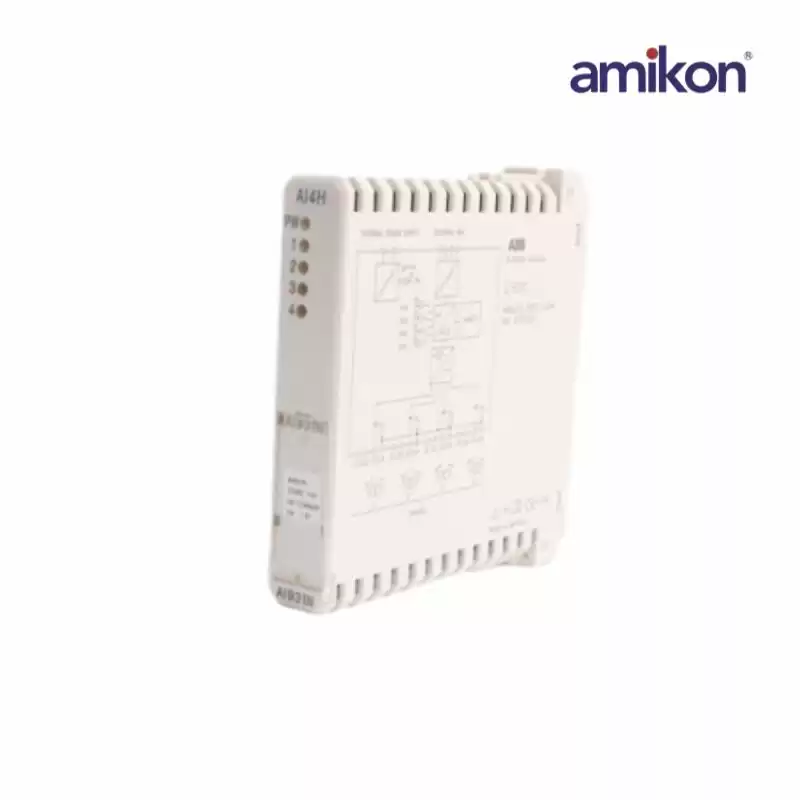

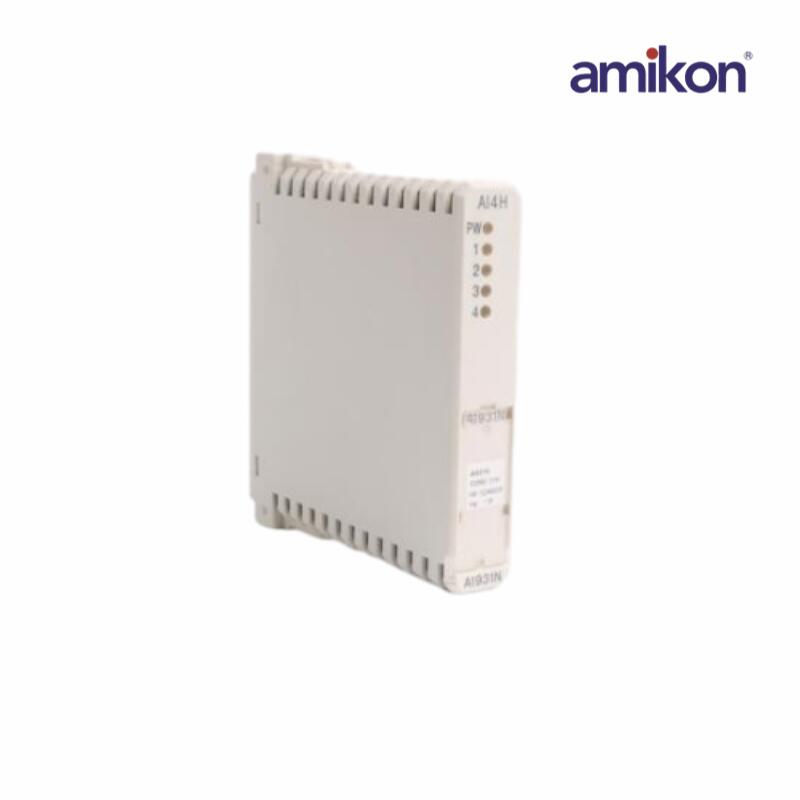

ABB AI931N 3KDE175513L9310 HART Analog Input Module

Product model

AI931N

Basic parameters

  Product name

AI931N 3KDE175513L9310

  Weight

  0.1 kg

  L x W x H

 2x10.5x11cm

Digital input & output

  Power DO

  4-Way (single-loaded 24 V / 1 A; 4-Way total load capacity ≤4 A)

  DO

  12-Way (400 mA)

  DI

  24-Way (16-Way PNP+8-Way NPN / PNP optional, 7 available for detecting ossd)

Product Type

Type

HART Analog Input Module

Description

AI931N Analog Input (AI4H), passive inputs for 0/4...20 mA.

• Redundancy (Power and Communication)
• - Hot Configuration in Run
• - Hot Swap functionality
• - Extended Diagnostic
• - Excellent configuration and diagnostics via FDT/DTM
• - G3-coating for all components
• - Simplified maintenance with auto-diagnostics
• - Passive inputs for 0/4...20 mA
• - Short and break detection
• - Electrical isolation between input / bus and input / power
• - Common return for all inputs
• - 4 channels
• - Transmission of HART frames via the fieldbus
• - Cyclic HART variab
