Additional Information:
ABB Type Designation:07AI91 GJR5251600R0202
Ambient Air Temperature:Operation 0 ... +55 °C
Storage -25 ... +75 °C
Analog Inputs:8 channels, thermocouple (J,K,S), PT100, PT1000, -50 ... +50mV, -500 ... +500mV, -5 ... +5V, -10 ... +10V, 0 ... 20mA, 12 bit+sign
Cable Cross-Section:0.08 ... 1.5 mm²
Fieldbus Interface Type:CS31 Slave
Gross Weight:0.48 kg
I/O Option:Bus module with Onboard IO - 8AI
Order Multiple:1 piece
Primary Voltage:24 V
Product Depth:85 mm
Product Main Type:07AI91 GJR5251600R0202
Product Net Depth / Length:85 mm
Product Net Height:140 mm
Product Net Weight:0.48 kg
Product Net Width:120 mm
Description：

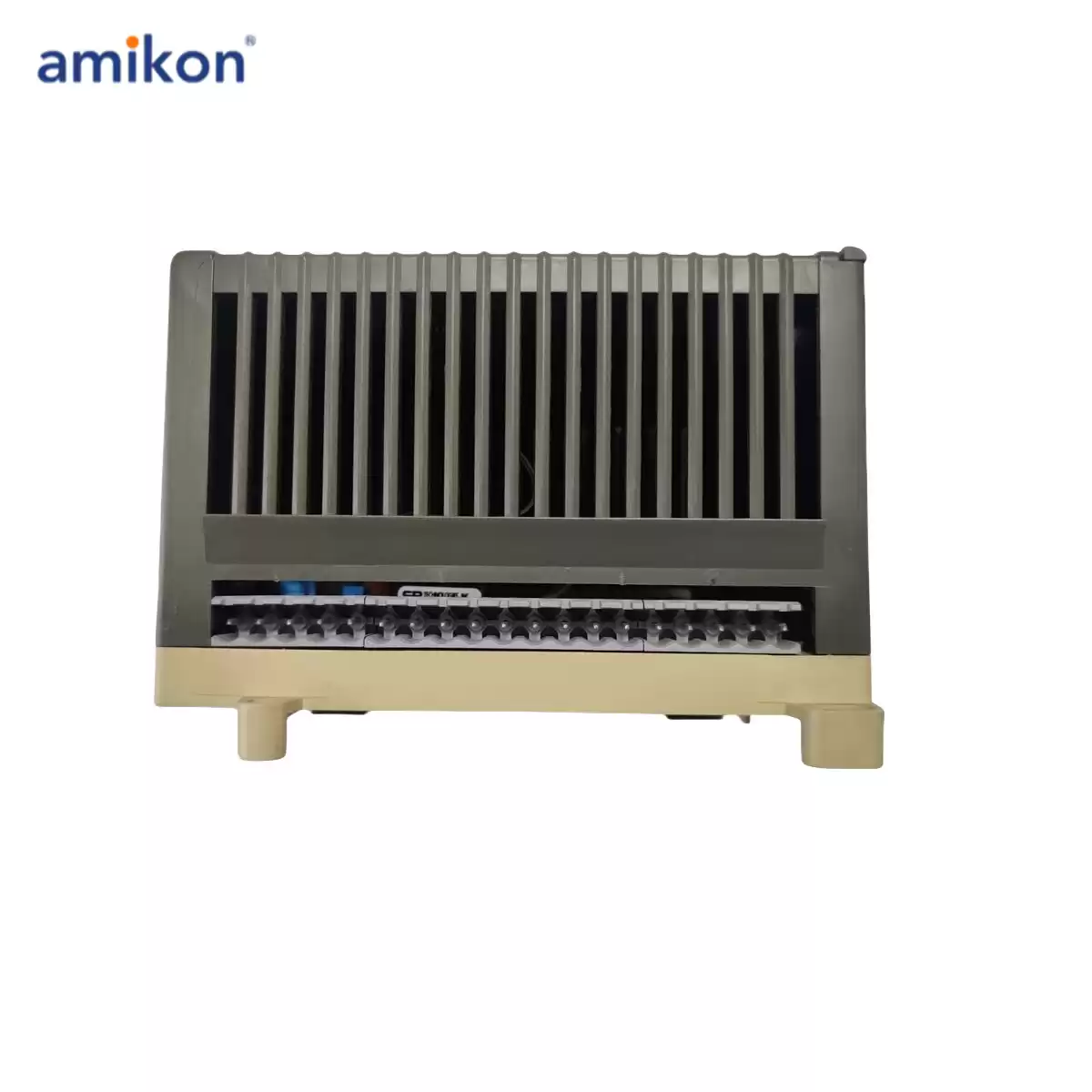

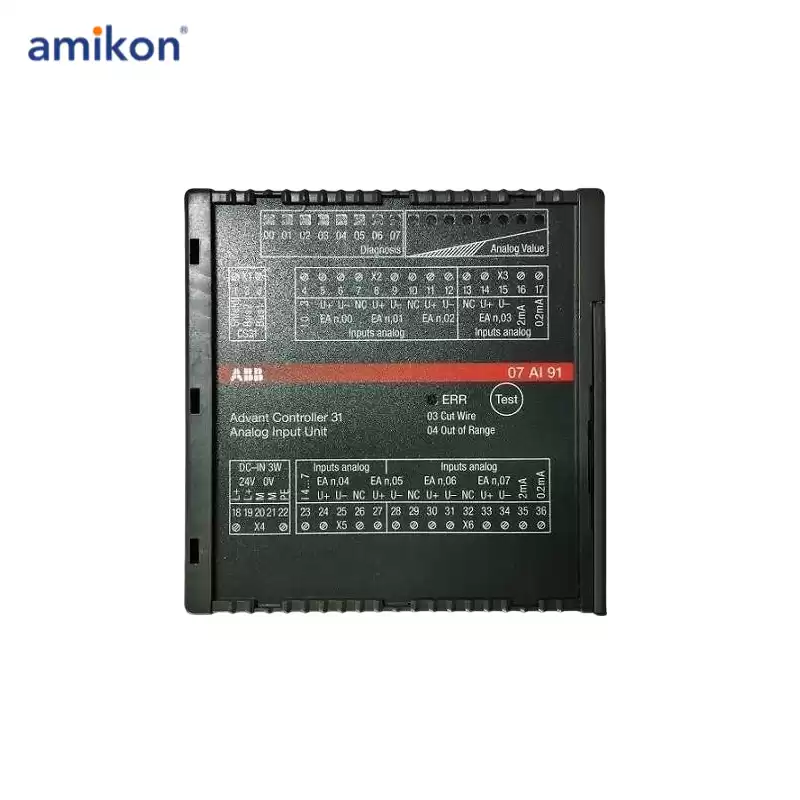

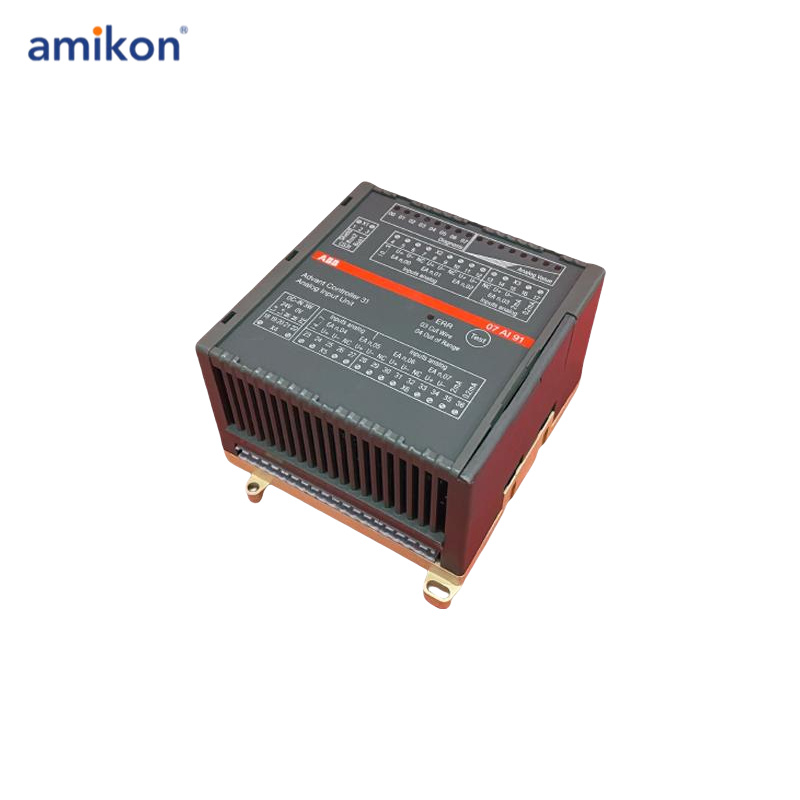

07AI91 ANALOG REMOTE UNITWITH 8 CONFIGURABLE INPUTS (CURRENT /VOLTAGE, PT 100, PT 1000 ORTHERMOCOUPLE TYPES J, K, S),RESOLUTION 12 BITS24 V DC POWER SUPPLY
