Product Description:

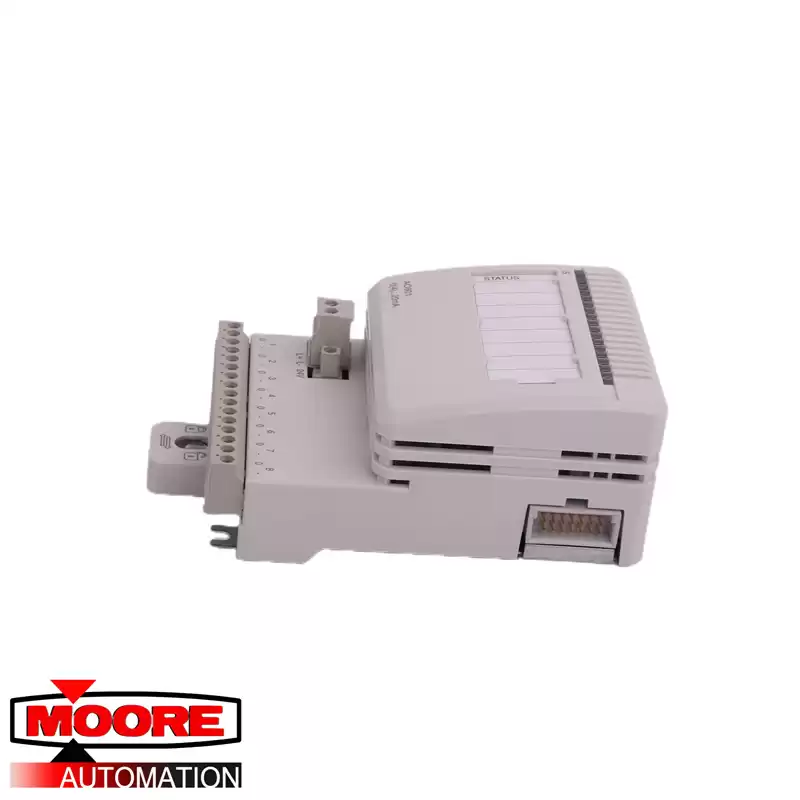

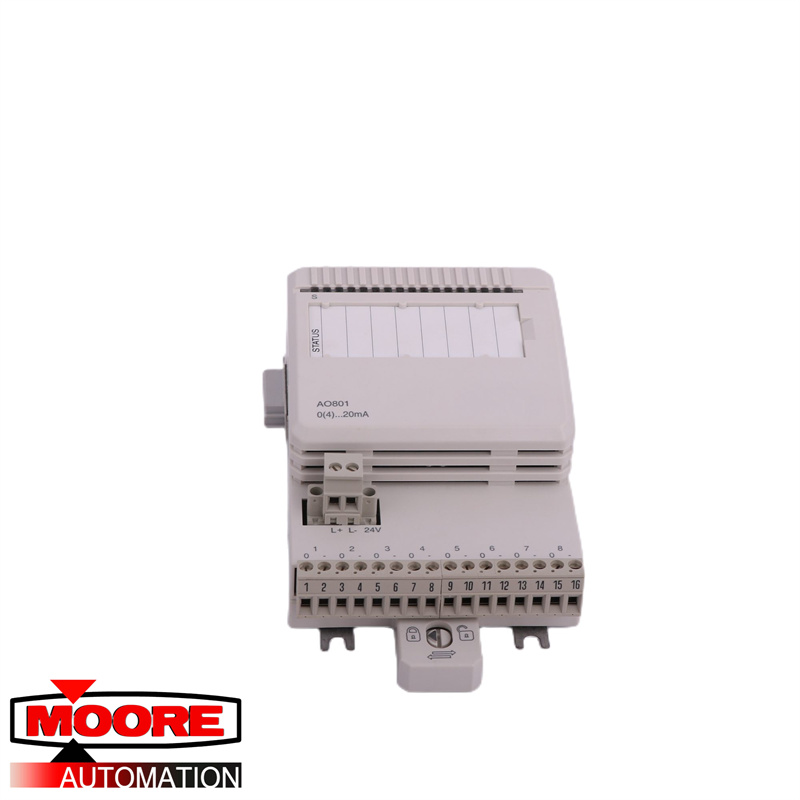

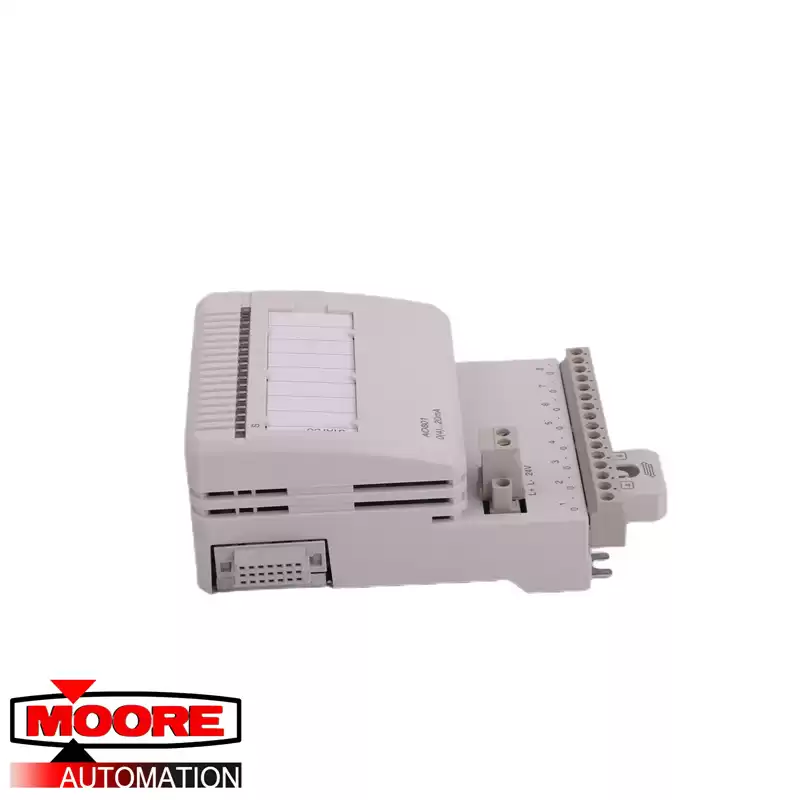

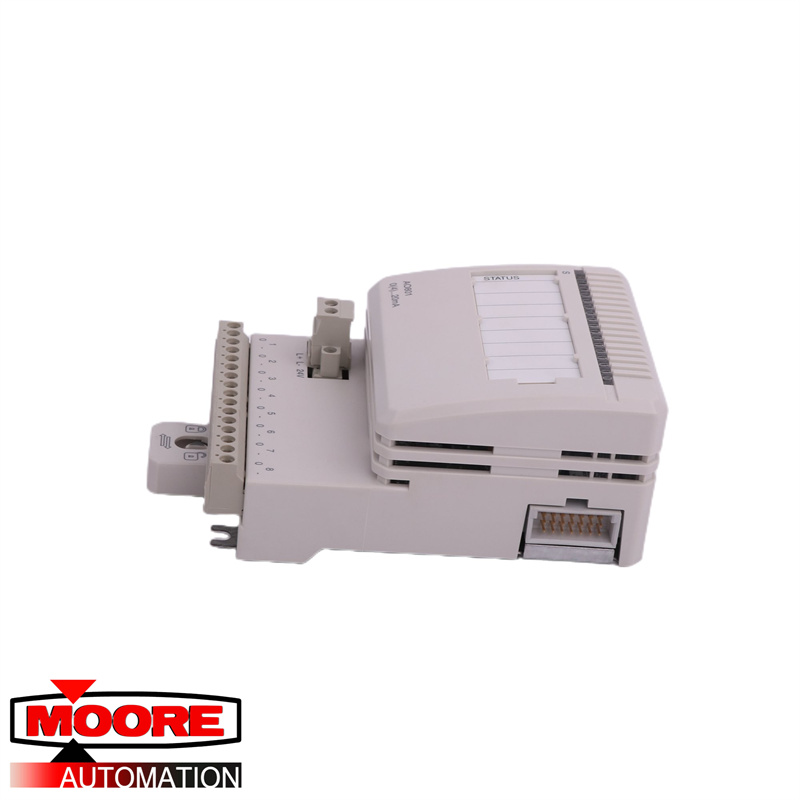

The AO801 Analog Output Module has 8 current outputs. State of outputs can be
set to a predetermined (OSP) value if a communications error is detected. Nominal
output range is: 0(4)... 20 mA.The AO801 Analog Output Module
has 8 unipolar analog output
channels.
The module performs selfdiagnostic cyclically. A low
internal power supply sets the
module in INIT state (no signal
from the module).
Features:
• 8 channels of 0...20 mA, 4...20
mA outputs.
• OSP sets outputs to
predetermined state upon error
detection.
• Analog Output is to be short
circuit secured to ZP or +24 V.
• Process and power connection
via detachable connectors.
