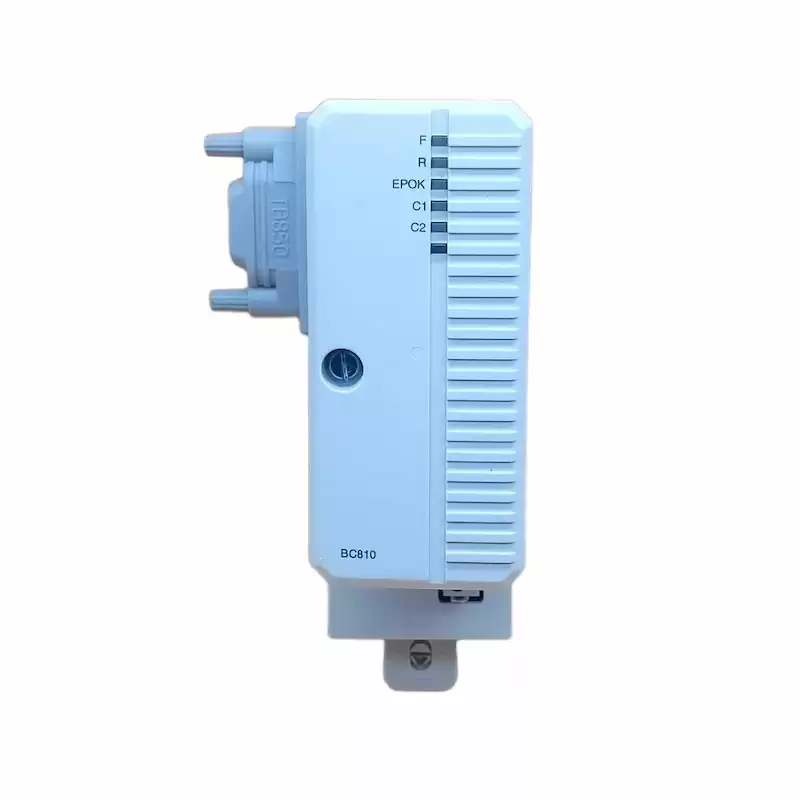

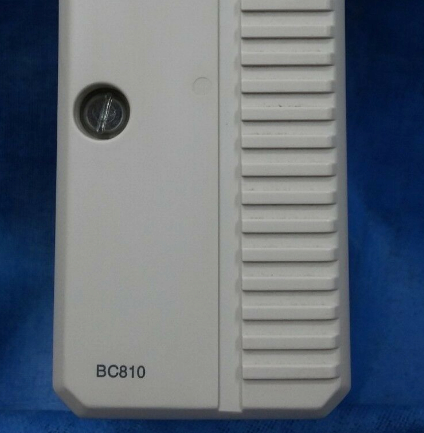

ABB BC810K01 3BSE031154R1 CEX-bus Interconnection Unit
The BC810 units must be mounted directly to the CEX-Bus on the processor unit base plate. The SM810, if used, and communication interfaces are then mounted to the CEX-Bus on the BC810, and terminated in each end with TB850 male CEX-Bus termination unit. The two BC810 are connected with the interconnection cable TK851.
The maximum number of CEX-Bus units connected to a BC810 is six. The primary function of BC810 is to divide the CEX-Bus into two physically separate segments for increased system availability, a faulty CEX-Bus unit on one segment will not affect the processor unit or the other CEX-Bus segment. It is also important to note that when using the BC810 together with redundant CEX-Bus units these units shall be mounted on different BC810 CEX-Bus segments. connects to the controller through of the PROFIBUS-DPV1 fieldbus.
The BC810 is powered either from the processor unit via the CEX-Bus or through its external connector for power supply. This external connector can also support the CEX-Bus with redundant power.
If the external connector is used in a redundant configuration of BC810, there are two valid connection possibilities:
• Single power source (SD8xx or SS8xx) for the processor units and the BC810s on both the segments (say, segments A and B).
• One power source (SD8xx or SS8xx) for the processor unit on segment A and the BC810 on segment B, and another power source (SD8xx or SS8xx) for the processor unit on segment B and the BC810 on segment A.
More info
BC810K01 CEX-bus Interconnection Unit Kit Including:
- BC810, Interconnection Unit
- TP857, Baseplate, width = 60 mm
- TB850, CEX-Bus Terminator
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
BC810K01 |
| Ordering Information |
3BSE031154R1 |
| Product Catalog |
AC 800M |
| Description |
CEX-bus Interconnection Unit |
| Customs Tariff Number |
85176200 |
| RoHS Status |
Following EU Directive 2011/65/EU |
| Dimensions |
59 mm x 185 mm x 127.5 mm |
| Weight |
700 g |
