Product Description:

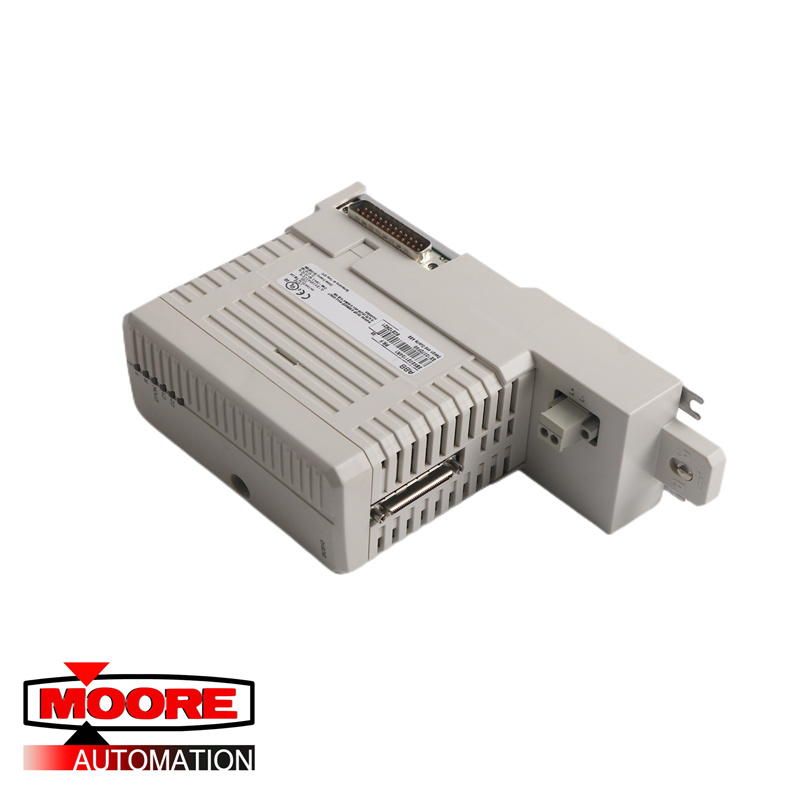

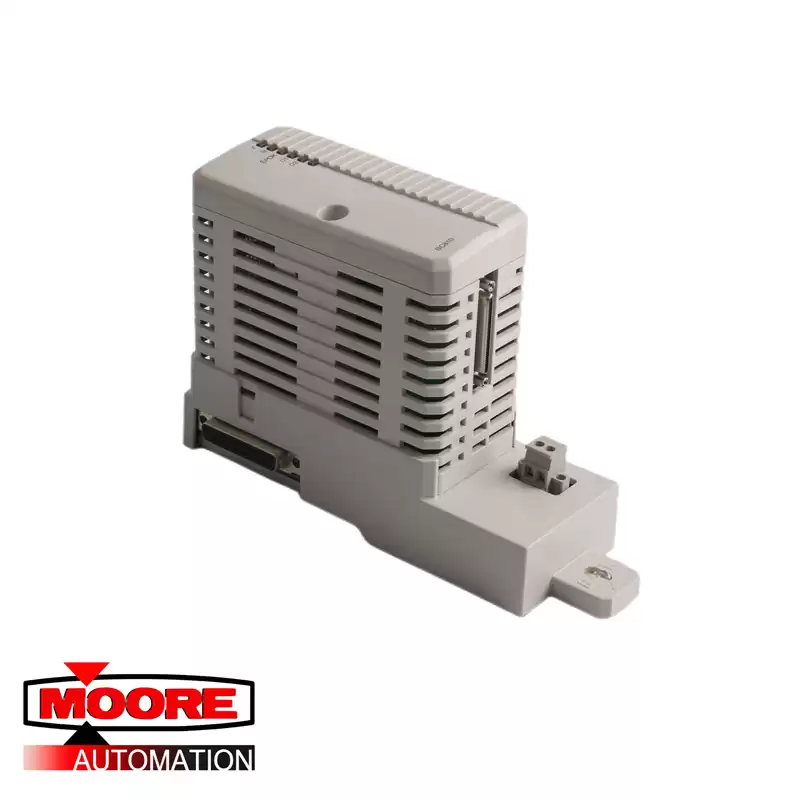

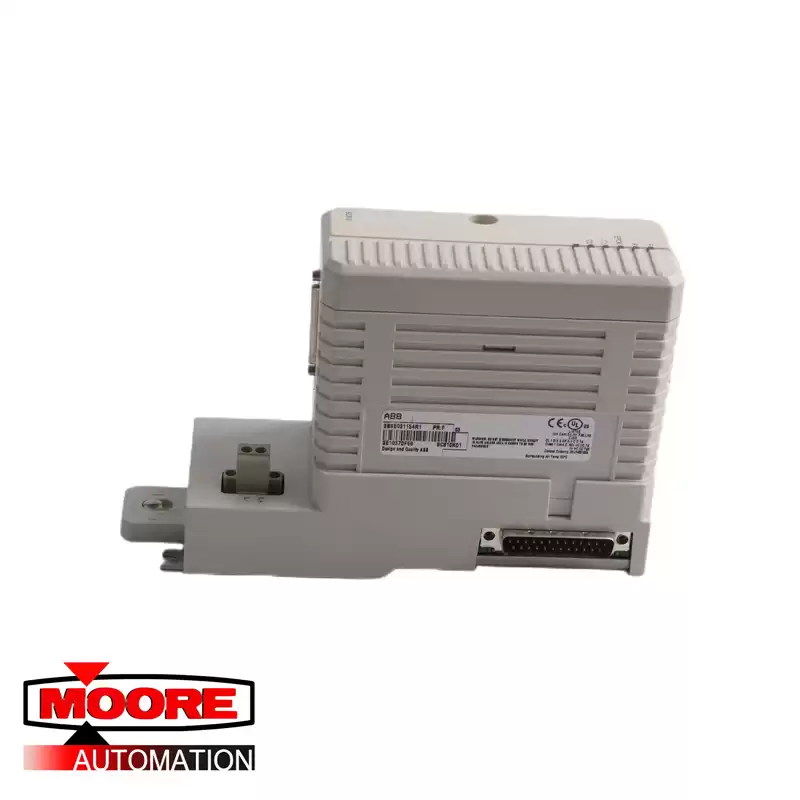

The BC810 unit consists of two basic parts: baseplate (TP857) and
power supply/logic board. The baseplate is where the connectors to
CEX-Bus and the external power reside. Itis grounded to the DIN-rail
through metal parts of the housing. The board also carries the
external powervoting diode and fuse. The power supply and logic
board contains the +3.3 V converter, logic, drivers for CEX-Bus
interconnection and the connector for interconnection cable.
BC810 can be usedwith PM861A, PM862, PM864A, PM865, PM866,
PM866A and PM867.
In a fullyredundant systemwith two interlinked BC810 and
primary/backup CPU pair,the BC810 support online replacement of
the CPU baseplatewithout disturbing the CEX traffic. If the BC810
has to be replaced, alltraffic to the connected CEX segment are
stopped.
