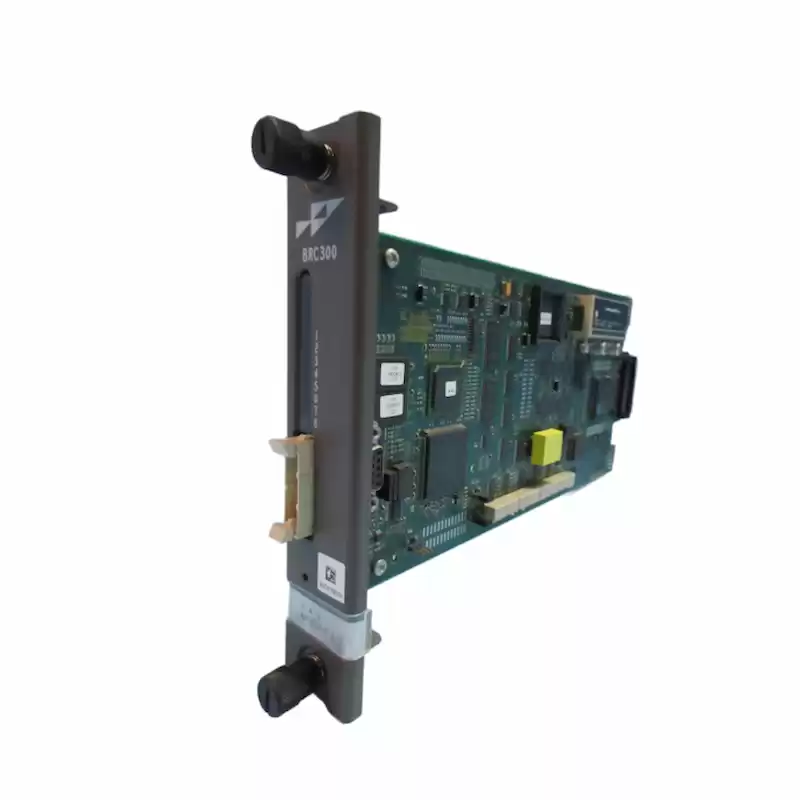

ABB BRC300 PHCBRC30000000 Bridge Controller
The BRC-300 is a high-performance, high-capacity process controller. It is a rack controller designed to interface with Harmony block I/O, Harmony rack I/O, and S800 I/O in the Symphony Enterprise Management and Control System. The controller is fully compatible with the INFI 90 OPEN system in functionality, communication and packaging.
The controller is a stand-alone device that can handle specific control and information processing applications in addition to multiple-loop analog, sequential, and batch control. It has the power to execute demanding process control applications that are data intensive, program intensive or both. The controller supports multiple control languages such as C and function codes (FC).
The Symphony system uses a variety of analog, control, and digital I/O devices to interface with the process. Control I/O is available from block I/O using the Harmony communication network (Hnet) or from Harmony rack I/O controllers using the I/O expander bus.
Features
The controller retains all of the features of the INFI 90 OPEN multifunction processor controllers.
Additional features of the controller include:
• Simultaneous Hnet bus and I/O expander bus communication supports both Harmony block I/O and Harmony rack I/O controllers.
• Redundant Hnet bus via the PBA.
• Automatic downloading of Harmony block I/O configurations.
• Backup battery power for NVRAM.
• Status output alarm monitoring.
• Eight megabytes of onboard SDRAM.
• Compatible with existing INFI 90 OPEN systems.
• Downloadable firmware.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
BRC300 |
| Ordering Information |
PHCBRC30000000 |
| Product Catalog |
INFI 90 OPEN systems |
| Description |
Bridge Controller |
| Voltage |
5 V |
| Current |
2A |
| Dimensions |
73.6 mm x 358.1 mm x 269.2mm |
| Weight |
0.4 kg |
