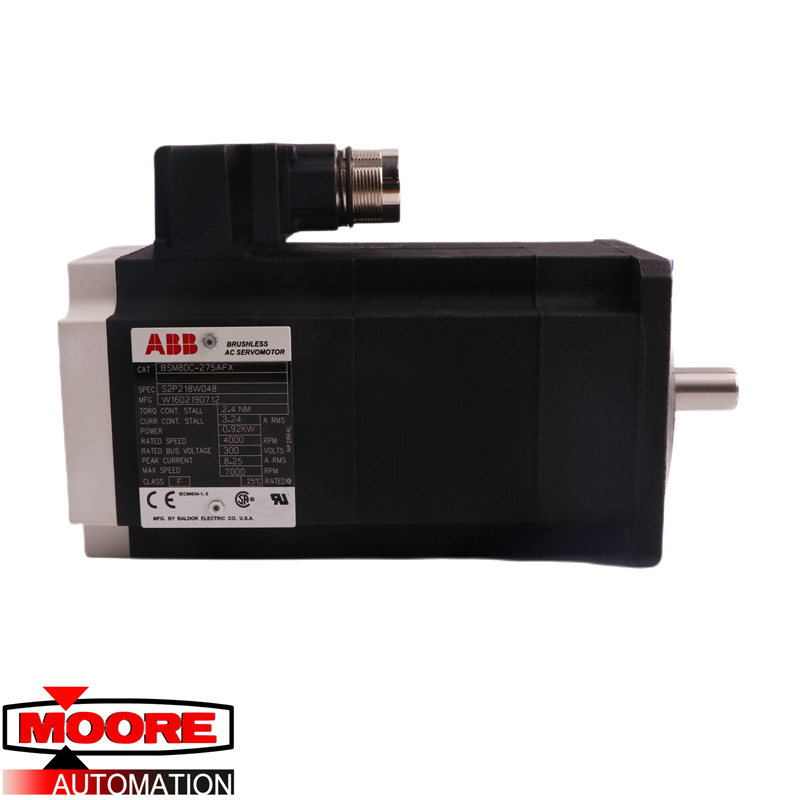

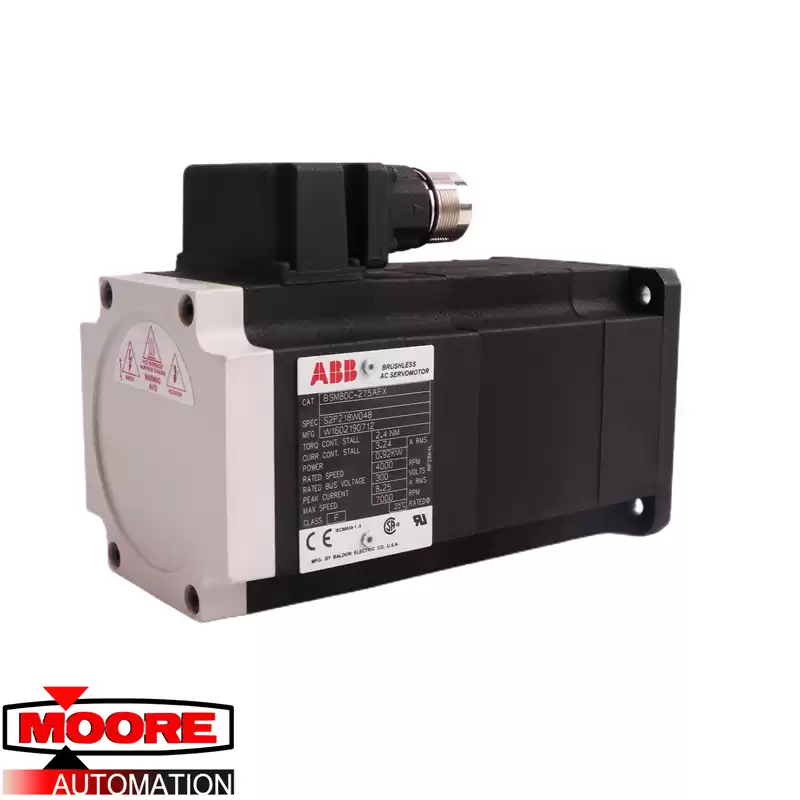

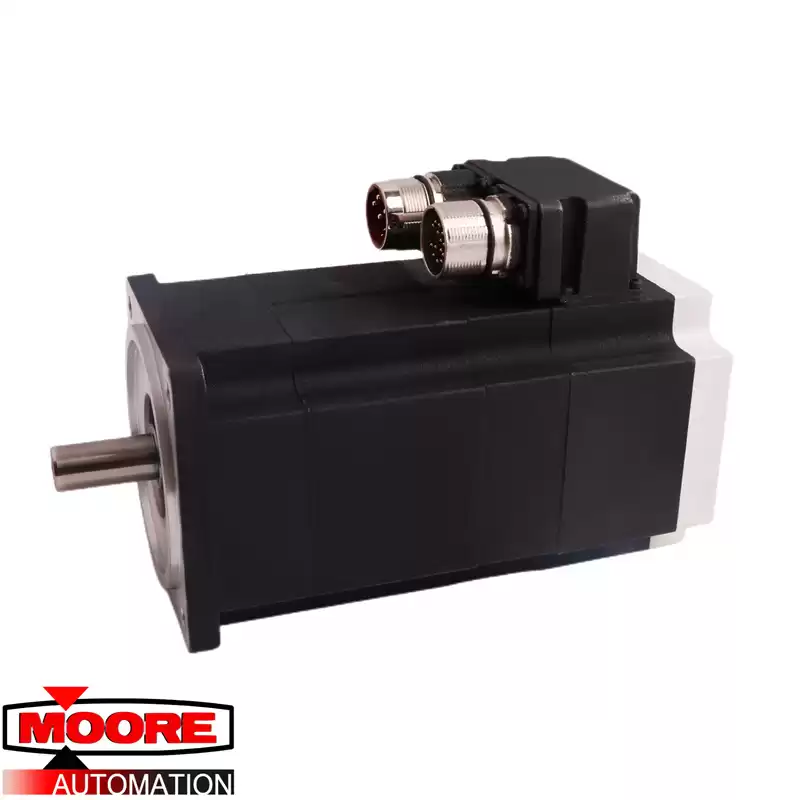

ABB BSM80C-275AFX AC SERVO MOTOR

ABB  BSM80C-275AFX  AC SERVO MOTOR

BSM80C275AFX
DISCONTINUED BY MANUFACTURER
AC SERVO MOTOR
BRUSHLESS
BSM C-SERIES
WITH ENCODER 4000 RPM RATED SPEED
MAXIMUM SPEED: 70003
.24 AMP CONTINUOUS 8.25 AMP PEAK 300 VOLTS RATED BUS SHAFT ROTATION:REVERSIBLE
POWER: 0.92KW

The BSM C-series has as standard, a “higher” inertia - thus providing an excellent match for equipment requiring higher inertial matching for the machine. This series provides continuous stall capability ranging from 10 lb-In (1.2 Nm) to 1185 lb-In (134 Nm). Peak torques are typically three times continuous. The BSM C-series provides up to 50% more torque in a smaller size (2 inches/50 mm shorter) compared to previous models. The C-series provides an economical package best used in applications with higher load inertias.
