BSM80C-275AFX STAT ENCODER
|
|
Weight: 4.04 kg
|
Dimension: 12cmX8.8cmX20cm
|
|
Product Name: STAT ENCODER
|
Product Package: Original Package
|
|
BSM80C-275AF T'STAT ENCODER：

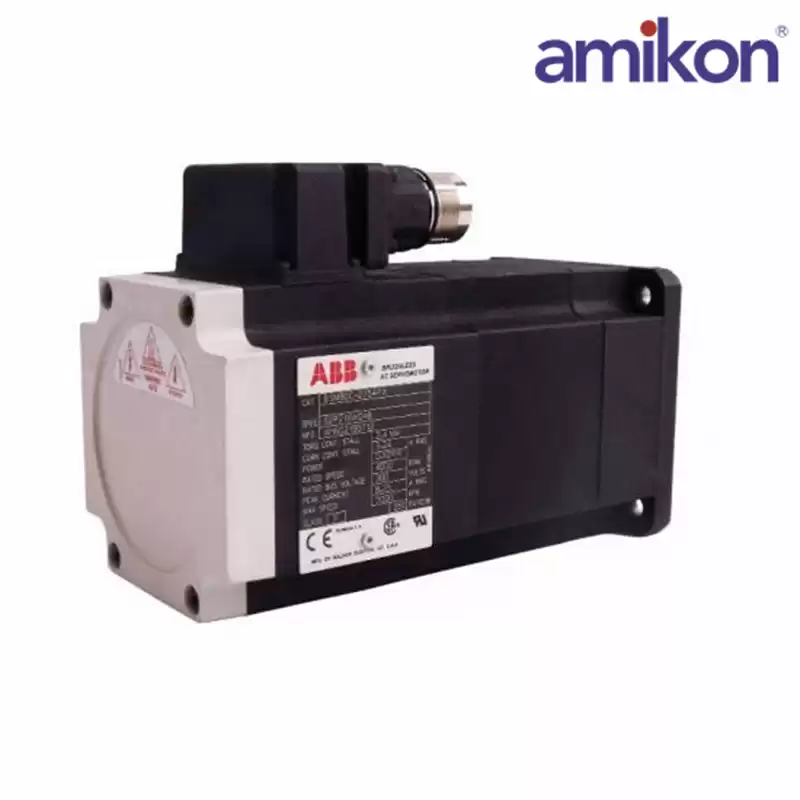

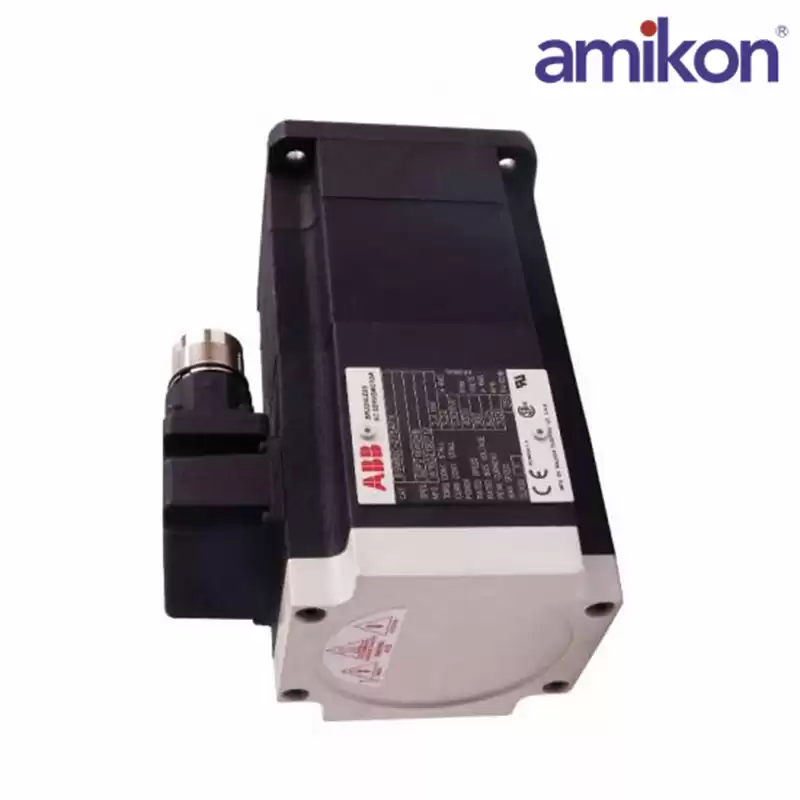

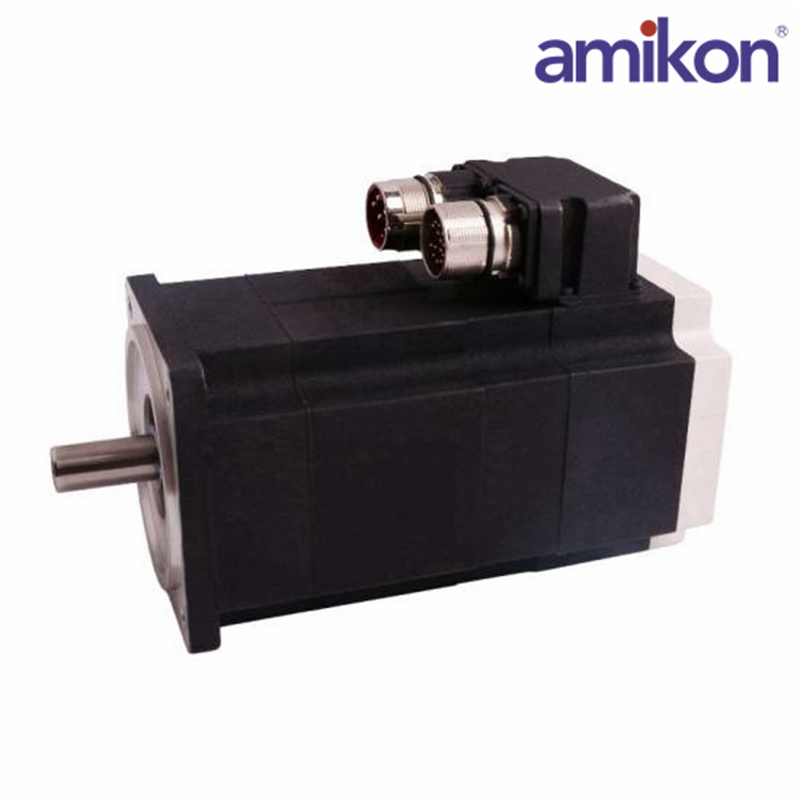

AC Brushless servo motor - TENV (Totally Enclosed Non-Ventilated) - BSM C-Series - Baldor-Reliance / ABB (BSM C-Series) - Rated power 1.2HP / 0.92KW - 3-phase input / 3PH - Rated peak torque 63.7lb-in / 7.2N.m - Rated continuous stall torque 21.2lb-in / 2.4N.m - 4 poles (4P) - Rated rotational speed 4000rpm (at 300Vdc) / 8000rpm (at 600Vdc) - IP54 - Spec. S2P196W048 / NEMA Frame D100D - UPC #781568378311 - with incremental encod. w/ commutation output (2500 pulses/revolution resolution) - Rated for +25°C ambient - Exposed Laminated Steel (frame) material
|
|
Parts delivered worldwide
|
We deliver worldwide
|
Full 12-month warranty
|
More than 25 in stock
|
