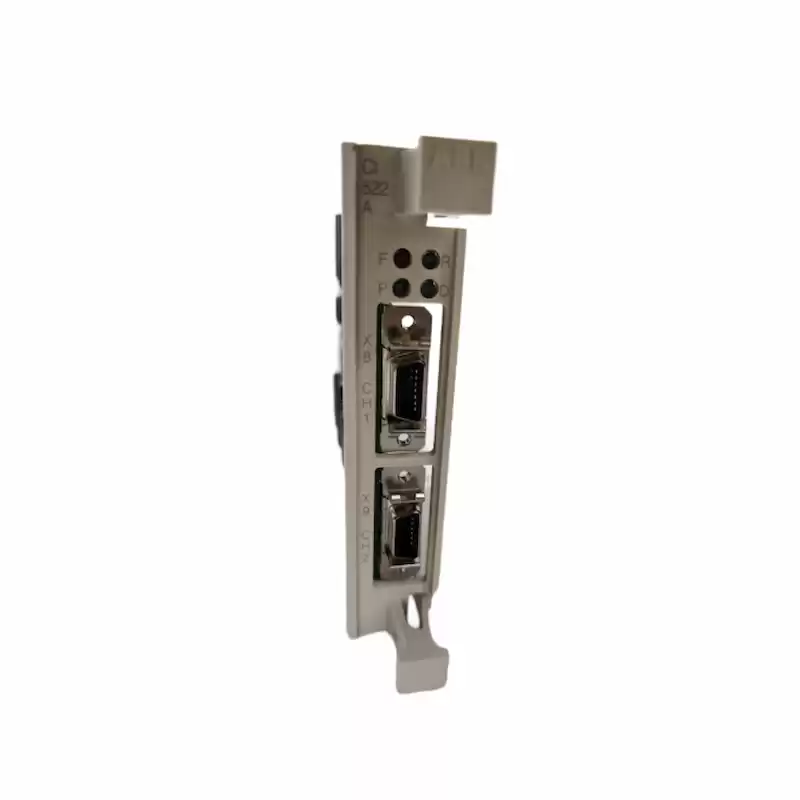

ABB CI522A 3BSE018283R1 AF100 Interface Module
The CI522A is a AF100 Interface Module Interface to S800 I/O for redundant communications.
Advant Fieldbus 100 is a high-performance bus specially designed for real-time applications. A number of different products are connectable to Advant Fieldbus 100, that is Advant Controller 410/450, Advant Controller 110, distributed S800 I/O stations, ACV 700 Converter, and so on. It features reliable, cyclic data transfer as well as event-driven background transfer of service data.
Advant Fieldbus 100 also features a distributed master scheme. If one or several controllers are lost, the bus is not affected and operations continue.
Three types of transmission media, coaxial cable, twisted pair cable and optical fibre are supported. The maximal bus length is depending on which transmission media is used.
For increased availability, you can duplicate the cables and modems (physical redundancy) or for full redundancy also duplicate the bus interface modules.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
CI522A |
| Ordering Information |
3BSE018283R1 |
| Product Catalog |
Advant Fieldbus 100 |
| Description |
AF100 Interface Module |
| RoHS Status |
Following EU Directive 2011/65/EU |
| Customs Tariff Number |
85389091 |
| Dimension |
265 mm x 27 mm x 120 mm |
|
Weight
|
0.2 kg |
