Product Description:

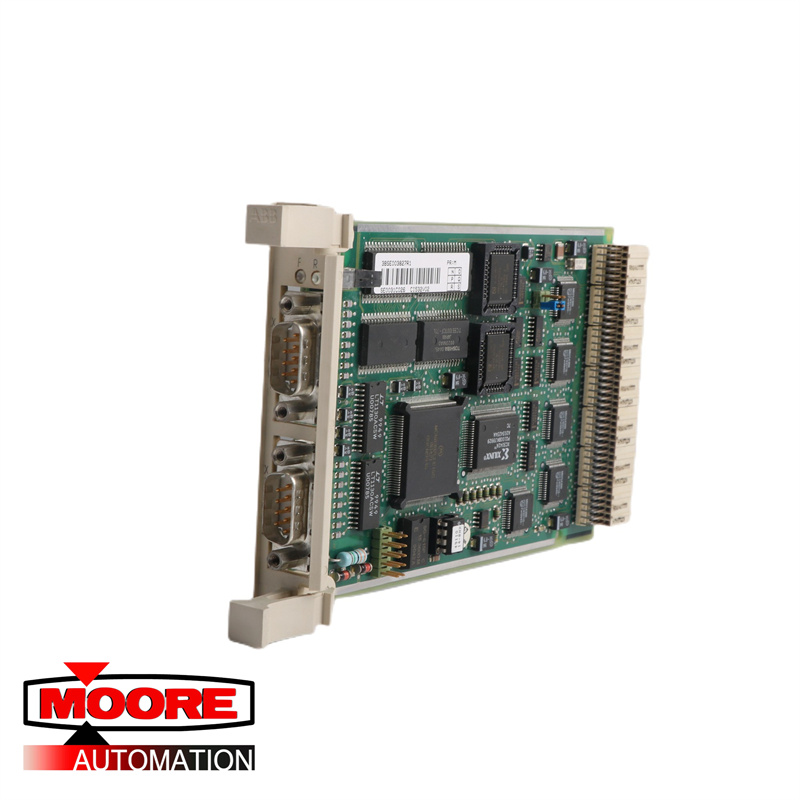

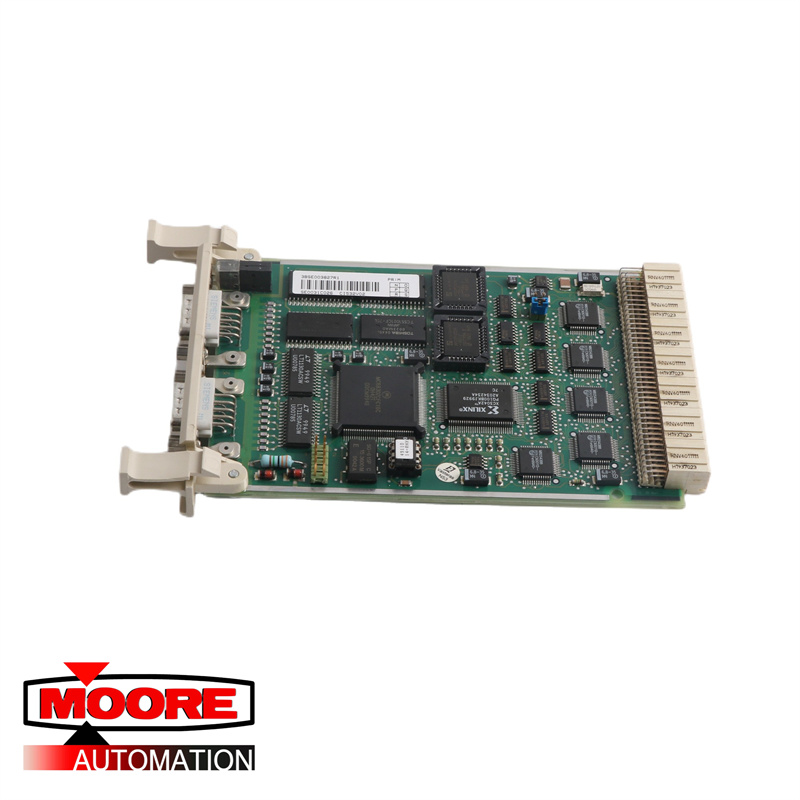

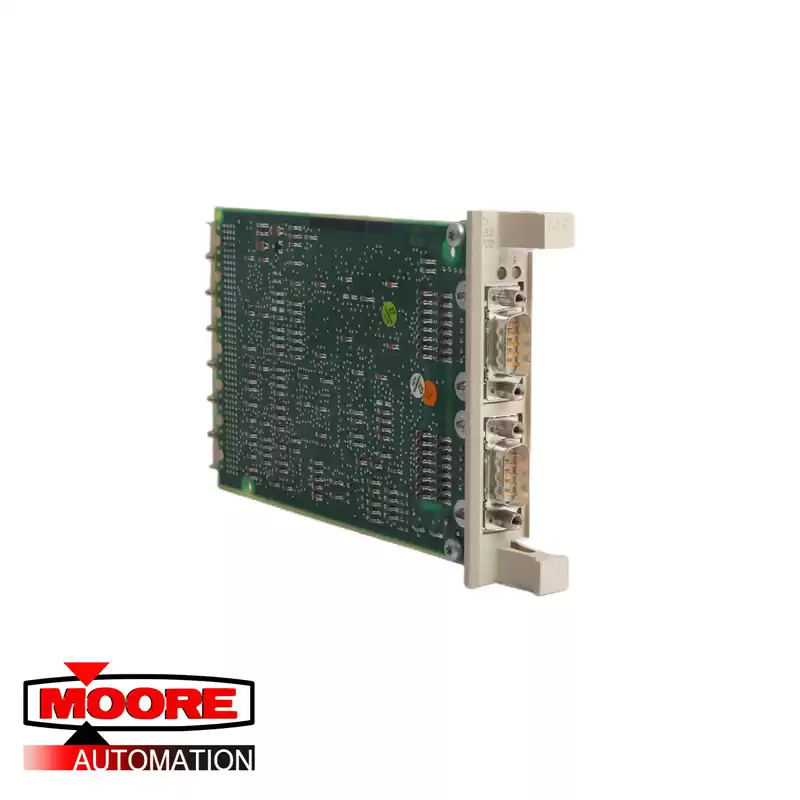

The CI532V02 submodule is installed in the central subrack of the AC 110. The CI532V02
submodule is equipped with two independent, asynchronous communication ports for
MVI-MODBUS communication. You can configure the ports as either master or slave on the
MVI-MODBUS link. The setup of each port is individually defined by a number of MVI
specific data base elements.
Each port forms a local control network within the ABB Master system with the network
numbers 1 to 9. In master mode, CI532V02 can handle up to eight slaves. Since every PLC on
the MVI-MODBUS bus is part of an ABB Master control network, each PLC must have a
unique node number, 1 to 99, within the controller concerned.
