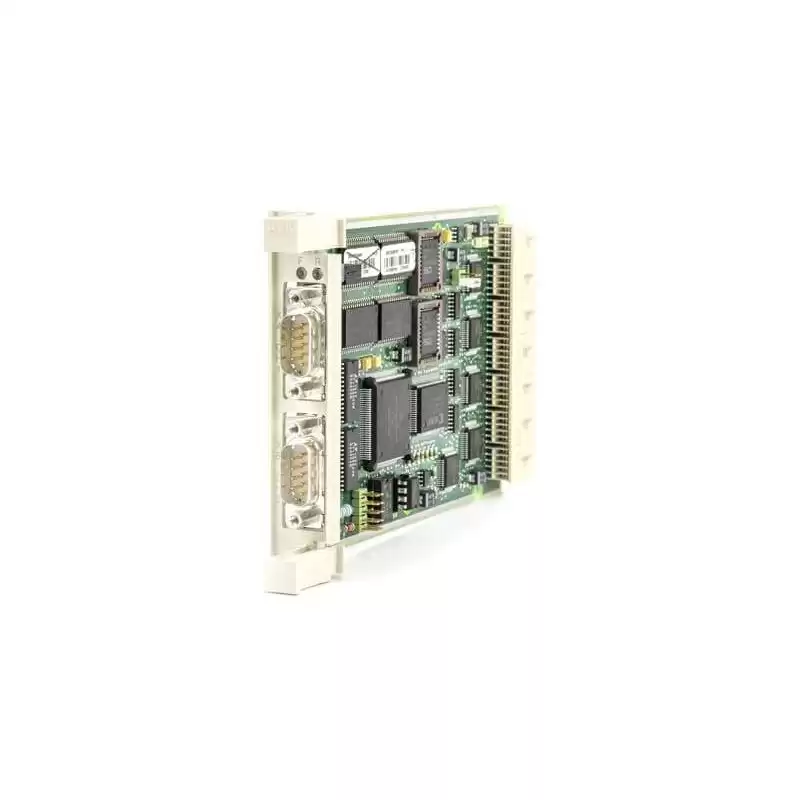

ABB CI532V03 3BSE003828R1 Communication Module
The data base element MVI represents the hardware CI532V03. CI532V03 is an MVI module with two channels.
The channels are connected to separate MVI networks. This module is also used for the RCOM communication.
Function
The main functions of the element are:
• to indicate where in the subrack the hardware CI532V03 is placed.
• to indicate the node number of the Advant Controller.
• to indicate net number of the MVI networks.
Normal Configuration
Create the data base element CI532V03
It is sufficient to modify the following inputs:
| POSITION |
See section Address Terminals BUS, STATION, POSITION and SUBPOS in the Introduction. |
| SUBPOS |
See section Address Terminals BUS, STATION, POSITION and SUBPOS in the Introduction. |
| VARIANT |
V03 for CI532V03 etc. (VARIANT does not influence any function). |
|
NODE
|
The node number of the Advant Controller. If the Advant Controller has MasterBus 300 or GCOM, the node number is already defined. NODE then can be set only to the MasterBus 300/GCOM node number.
|
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
CI532V03 |
| Ordering Information |
3BSE003828R1 |
| Product Catalog |
Advant® Controller 400 Series |
| Description |
CI532V03 Siemens 3964(R) interface, 2 ch |
| RoHS Status |
Following EU Directive 2011/65/EU |
| Customs Tariff Number |
85389091 |
| Dimension |
265 mm x 25 mm x 120 mm |
| Weight |
0.2 kg |
