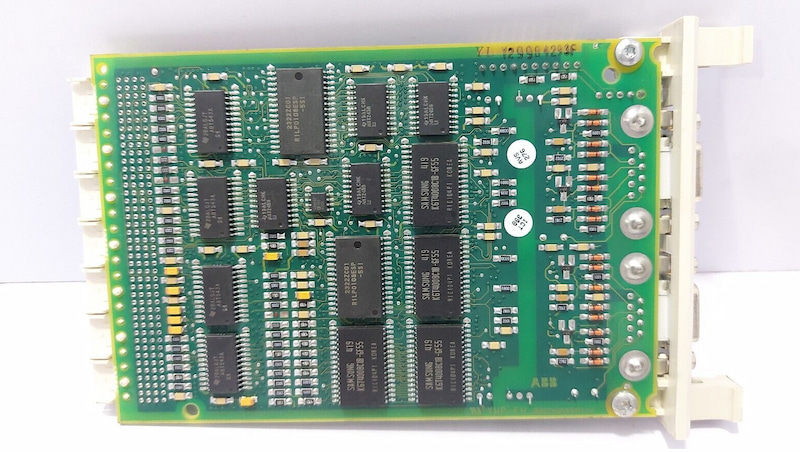

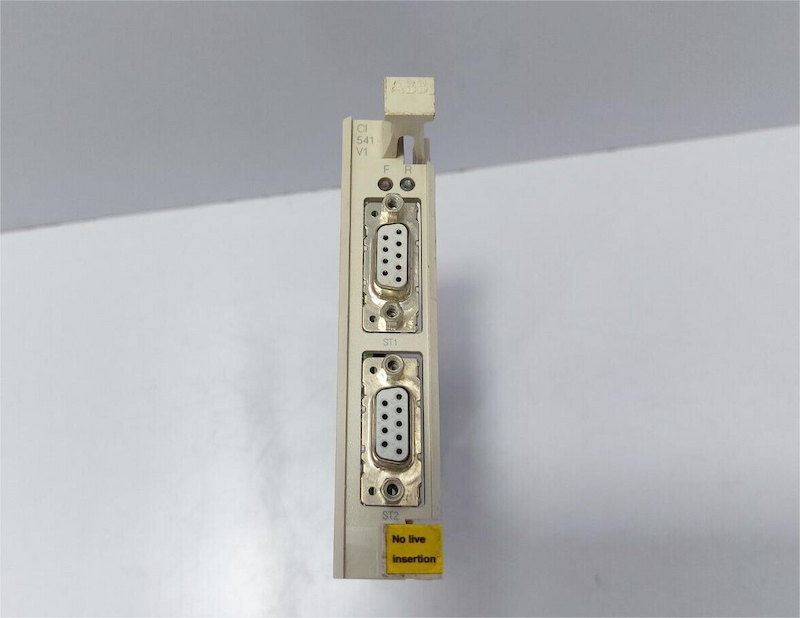

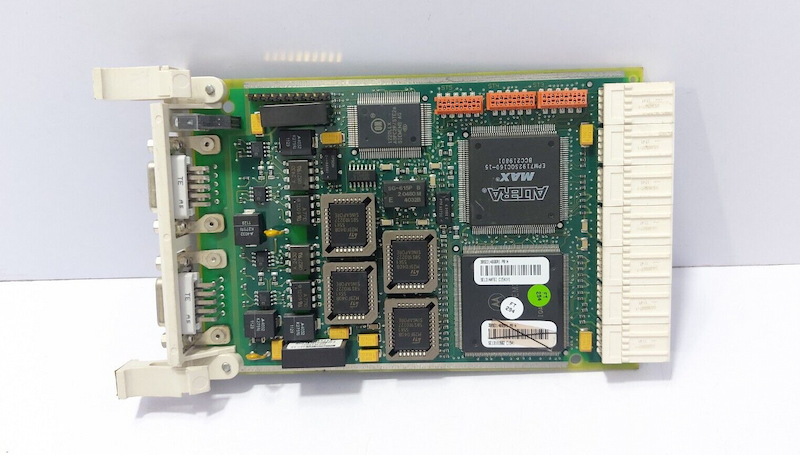

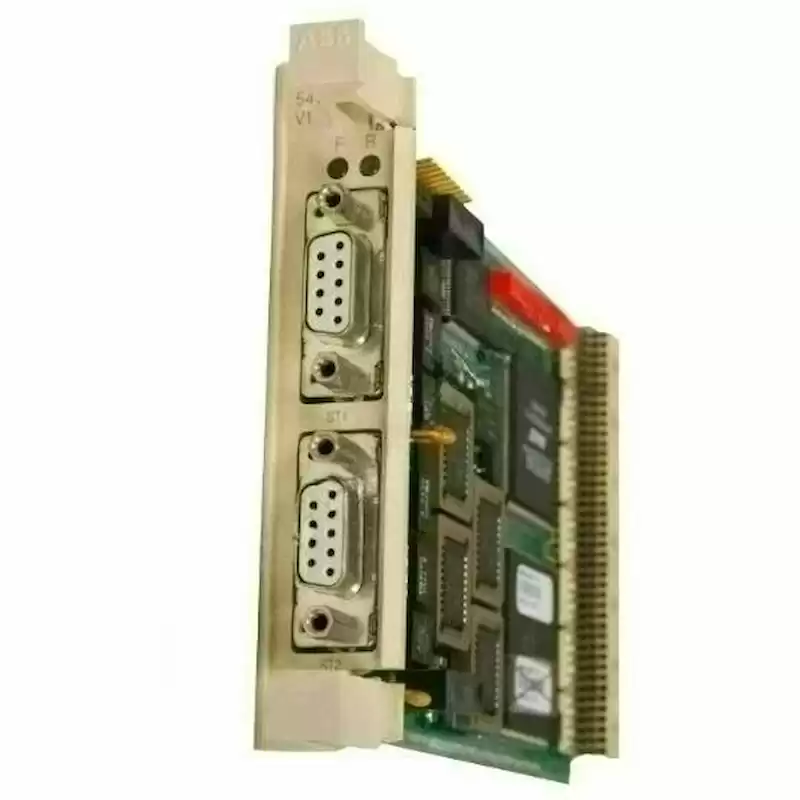

ABB CI541V1 3BSE014666R1 Profibus Interface Submodule
The PROFIBUS-DP data base element specifies the Communication Interface submodule CI541 that supports PROFIBUS-DP. The element contains configuration as well as diagnostic information of the physical CI541V1 submodule.
Function
· The PROFIBUS-DP data base element specifies a PROFIBUS-DP network connected to an Advant Controller 400 Series.
· The data base element contains configuration and diagnostic information of the CI541V1 communication module itself as well as the PROFIBUS-DP bus.
· The PROFIBUS-DP data base element can be created in the system but can not be removed. It is however possible to disable the function of the element by setting the IMPL terminal to 0. The data base element can also be reconfigured to specify a different PROFIBUS-DP bus if one fieldbus is removed and another is inserted in the system.
Diagnostics
The PROFIBUS-DP data base element indicates diagnostics for both the CI541V1 communication module and the PROFIBUSDP bus. The ERR terminal indicates fatal errors. The WARNING terminal indicates non-fatal errors. The DIAG terminal specifies a more detailed description of what causes the error or warning indication. One or more diagnostics indicators may be set.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
CI541V1 |
| Ordering Information |
3BSE014666R1 |
| Product Catalog |
Advant® Controller 400 Series |
| Description |
Profibus Interface Submodule |
| Customs Tariff Number |
8517620000 |
| WEEE Category |
Product Not in WEEE Scope |
| Dimensions |
120 mm x 20 mm x 245 mm |
| Weight |
0.17 kg |
