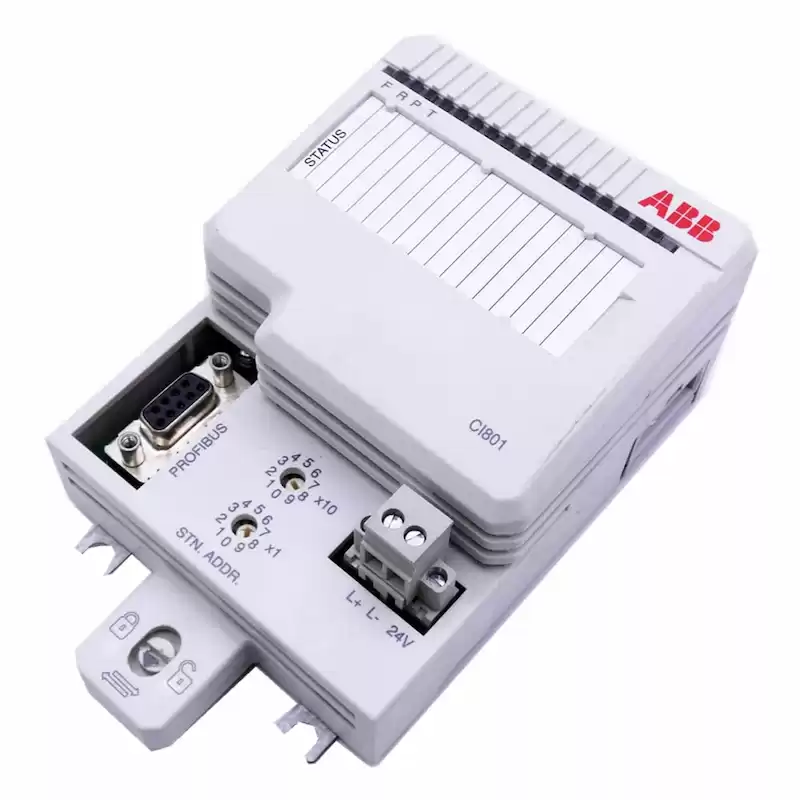

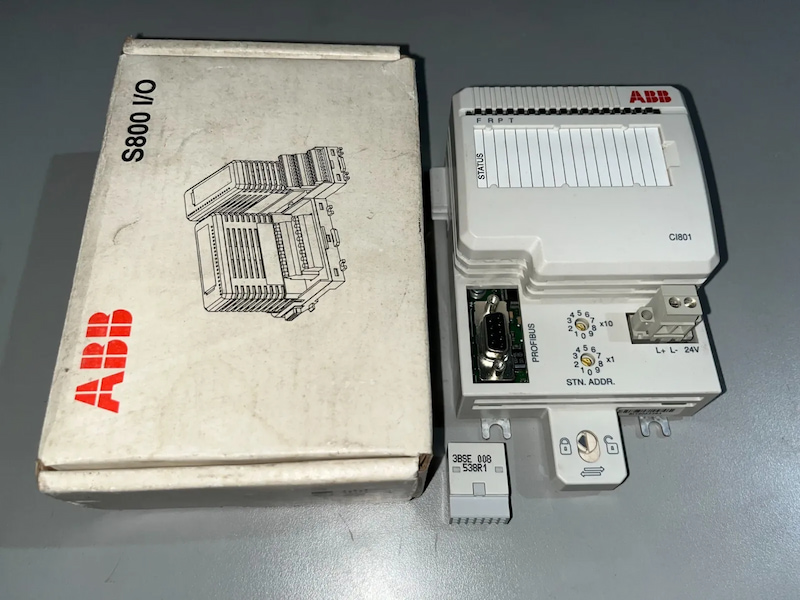

ABB CI801 3BSE022366R1 PROFIBUS FCI S800 Interface
Compact Product Suite hardware selector S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI801 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of supervision information, OSP handling, Hot Configuration InRun, HART pass-trough and configuration of I/O modules. The FCI connects to the controller through of the PROFIBUS- DPV1 fieldbus.
Features and benefits
· PROFIBUS DP PROFIBUS-DPV1 fieldbus interface.
· Supervisory functions of I/O ModuleBus
· Isolated power supply to I/O modules
· OSP handling and configuration
· Input power fused
· Hot Configuration In Run
· HART pass-through
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
CI801 |
| Ordering Information |
3BSE022366R1 |
| Product Catalog |
S800 I/O |
| Description |
PROFIBUS FCI S800 Interface |
|
24 V consumption typ.
|
140 mA
|
|
CE- marking
|
Yes
|
|
Temperature, Operating
|
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
|
|
Max ambient temperature
|
55 °C (131 °F), for vertical mounting 40 °C (104 °F)
|
|
WEEE compliance
|
DIRECTIVE/2012/19/EU
|
| Dimensions |
58.5 mm x 136 mm x 85.6 mm |
| Weight |
0.3 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
