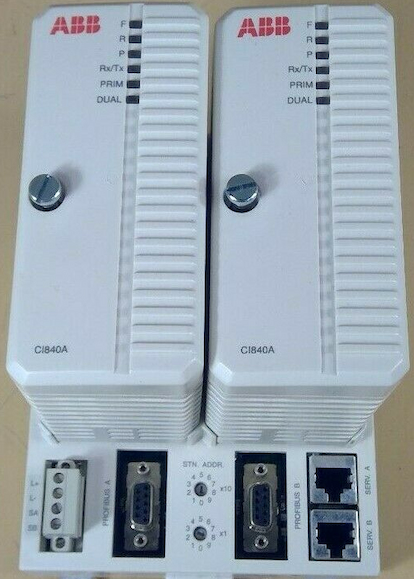

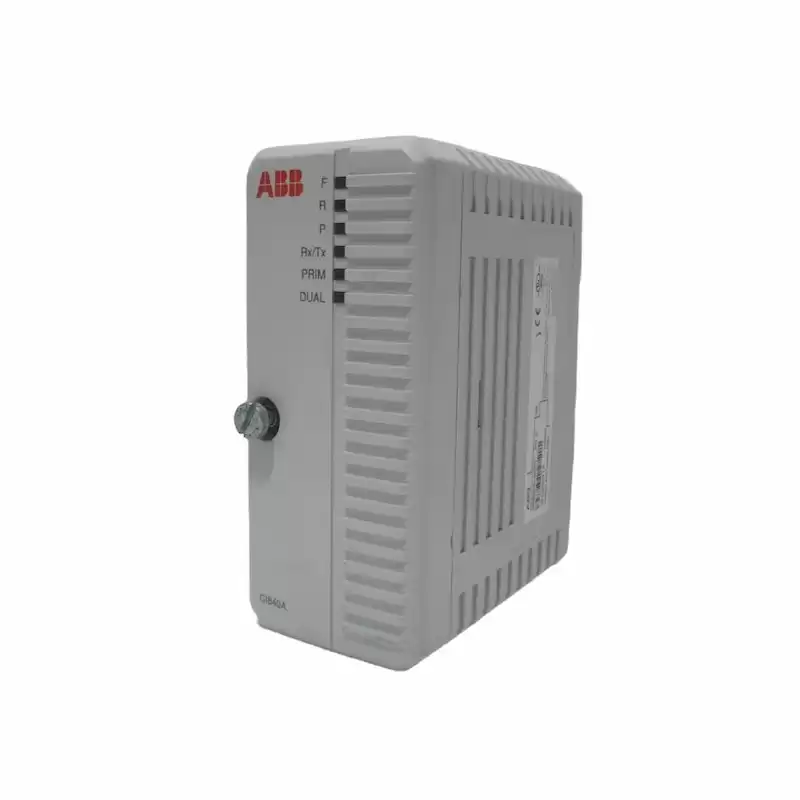

ABB CI840A 3BSE041882R1 Fieldbus Communication Interface Module

For the best price on CI840A, please contact us and we will get back to you within 24 hours. The CI840 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of various supervision information, OSP handling, Hot Configuration In Run, HART pass-through and configuration of I/O modules.

Facebook Twitter Pinterest LinkedIn 分享

Description

CI840A

ABB Ability™ System 800xA® hardware selector

S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI840 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of various supervision information,

OSP handling, Hot Configuration In Run, HART pass-through and configuration of I/O modules. CI840 is designed for redundant applications.

The FCI connects to the controller by way of the PROFIBUS- DPV1 fieldbus. Module termination units to use, TU846 with redundant I/O and TU847 with non-redundant I/O.

Features and benefits

· PROFIBUS DP PROFIBUS-DPV1 fieldbus interface.

· Supervisory functions of I/O ModuleBus

· Isolated power supply to I/O modules

· OSP handling and configuration

· Input power fused

· Hot Configuration In Run

· HART pass-through

Technical Specifications

Manufacturer	ABB
Part Number	CI840A

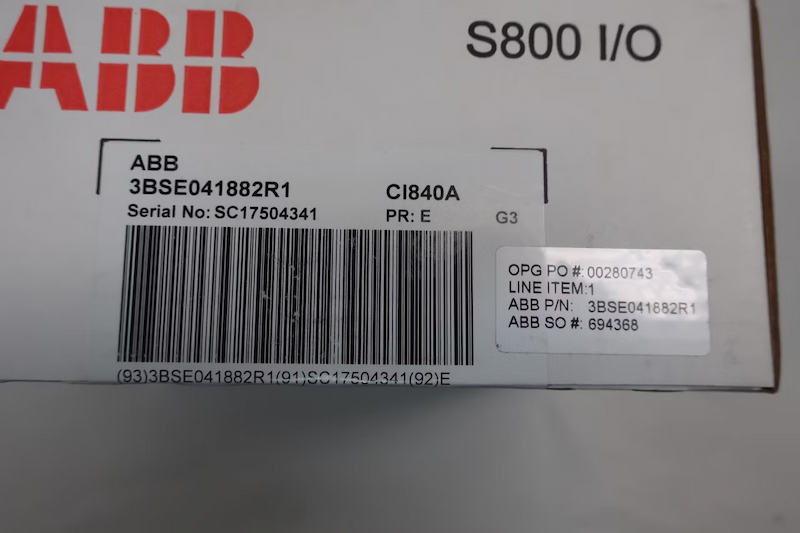

Ordering Information	3BSE041882R1
Product Catalog	Advant S800 I/O
Description	Fieldbus Communication Interface Module
24 V consumption typ.	190 mA
Temperature, Operating	0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Max ambient temperature	55 °C (131 °F), for vertical mounting 40 °C (104 °F)
WEEE compliance	DIRECTIVE/2012/19/EU
Dimensions	54 mm x 119 mm x 96 mm
Weight	0.2 kg
