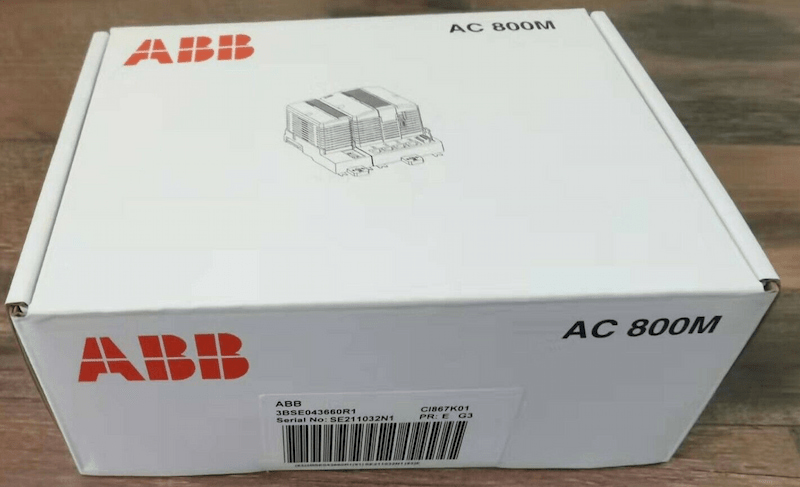

CI867K01
System 800xA hardware selector
MODBUS TCP is an open industry standard widely spread due to its ease of use. It is a request response protocol and offers services specified by function codes.
MODBUS TCP combines the MODBUS RTU with standard Ethernet and universal networking standard TCP. It is an application-layer messaging protocol, positioned at level 7 of the OSI model.

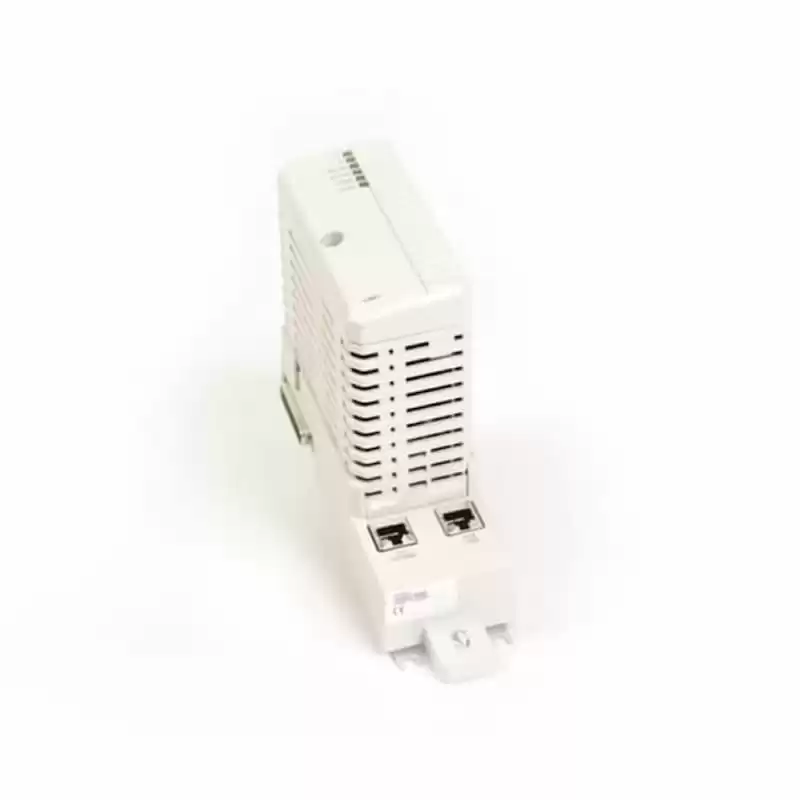

The CI867/TP867 is used for connection between an AC 800M controller and external Ethernet devices using Modbus TCP protocol.
The CI867 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. TheEthernet cable must be connected to the main network through anEthernet switch.
Features and benefits
The CI867 can be set redundant and supports hot swap.
CI867 is a dual channel Ethernet unit;
Ch1 supports full duplex with 100Mbps speed and Ch2 supports half duplex with 10Mbps speed,Both master and slave functionality are supported.
A maximum of 70 slave and 8 master units per CI867 (on Ch1 and Ch2 together)can be used.
|
General info
|
|
Article number
|
3BSE043660R1
|
|
Protocol
|
MODBUS TCP
|
|
Master or slave
|
Master / Slave
|
|
Number of channels
|
2 channels
|
|
Transmission speed
|
10/100 Mbit/s (Ch1), 10 Mbit/s (Ch2)
|
|
Line redundancy
|
No
|
|
Module redundancy
|
Yes
|
|
Hot Swap
|
Yes
|
|
Used together with HI Controller
|
Yes
|
|
Environment and certification
|
|
Temperature, Operating
|
55 °C
|
|
Protection class
|
IP20 according to EN60529, IEC 529
|
|
CE-marking
|
Yes
|
|
Hazardous location
|
UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
|
|
Marine certificates
|
ABS, BV, DNV-GL, LR
|
|
RoHS compliance
|
DIRECTIVE/2011/65/EU (EN 50581:2012)
|
|
WEEE compliance
|
DIRECTIVE/2012/19/EU
|
|
Dimensions
|
|
Width
|
59 mm (2.3 in.)
|
|
Height
|
186 mm (7.3 in.)
|
|
Depth
|
127.5 mm (5.0 in.)
|
|
Weight (including base)
|
700 g (1.5 lbs)
|
